NoiseCHEK Personal Noise Dosimeter
Cat. No. 701-001NBS
Operating Instructions
Clothing clip
Windscreen
lock direction
indicator
History
button
Previous
button
Green button
(Power on/start/select)
Clothing clip

Table of Contents

Introduction.................................................................................................................................................... 3
Checking Dosimeter/Kit Contents ............................................................................................................. 3
Getting Started .............................................................................................................................................. 4
Charging the Battery.................................................................................................................................. 4
Notes and Cautions ................................................................................................................................... 6
Turning Power On/Off................................................................................................................................ 6
skcinc.com
Windscreen
Windscreen LED
collar
Windscreen unlock
direction indicator
Voice Note
button
Next button
Screen/Display
Red button
(Power off/stop/select)
Front view

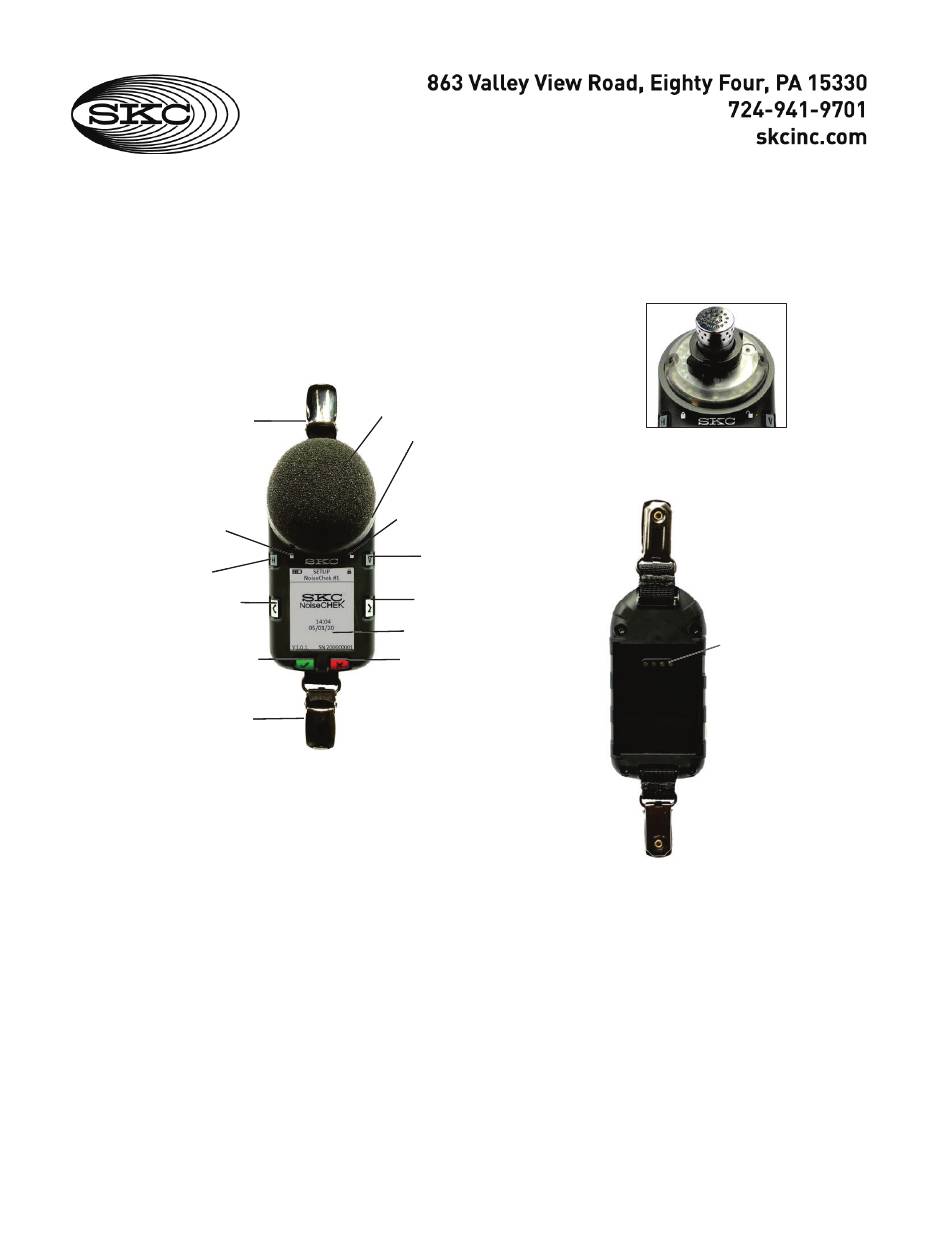

Figure 1. NoiseCHEK Noise Dosimeter - Overview
Form 37186 Rev 220106
Microphone
(windscreen removed)
Charging/data
transfer contacts
Ba
Back view
Page 1
