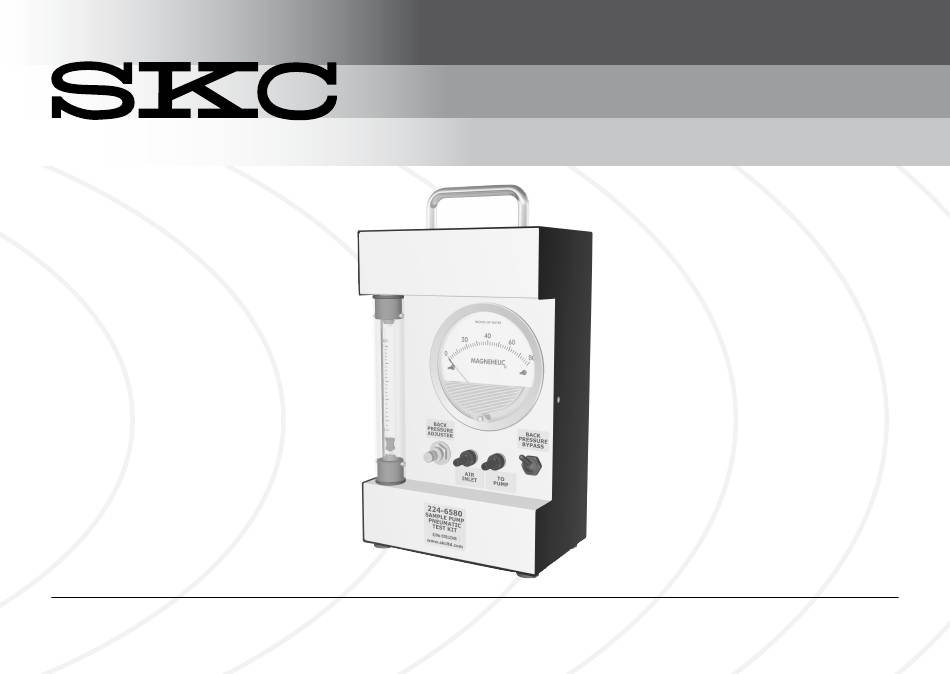

- Page 1 Pneumatic Test Kit Operating Instructions This manual covers the following model: 224-6580...
- Page 2 Date Please note that SKC Ltd are the only authorised service centre in the UK, guaranteeing you access to the full range of genuine SKC replacement parts. For all other areas a full list of SKC approved distributors and service centres can be found at www.skcltd.com...
- Page 3 Specifications Size ..........190mm x 353mm x 120mm (W x H x D) Weight ..........2.60 kg Flow Range ........600 to 5,000 ml/min Flow Accuracy ........5% of full scale Flow Scale Standardization ....Air at 20 °C and 1013.25 mbar absolute Back Pressure Range .......0 to 80 inches H Back Pressure Accuracy ....2% of full scale Control Layout Flow meter...
- Page 4 Sample Pump Compensation Verification Refer to the sample pump instruction manual or SKC Ltd for pump compensation specification. 1. Connect the inlet hosetail of the pump to the pump connection hosetail on the pneumatic test kit using a length of flexible tubing.
- Page 5 Operation of the Pneumatic Test Kit 4. Set the back pressure bypass valve to the up position, and adjust the back pressure reading on the back pressure gauge, to the required value for the flow rate. 5. Note the reading on the flow meter. The flow reading with back pressure applied should generally be within 5% of the reading with no back pressure - refer to the sample pump compensation specification.
-
Page 6: Limited One Year Warranty
(1) year. This warranty DOES NOT cover any claims due to abuse, misuse, neglect, alteration, or accident, or use in application for which the instrument was either not designed or not approved by SKC, or, due to the buyer’s failure to maintain normal maintenance, improper selection or misapplication. The warranty also DOES NOT cover any claims due to the use of a non-SKC approved charger to charge the battery pack. - Page 7 Warranty Information at the option of SKC. However, SKC will not elect refund unless it is unable to provide replacement and repair is not commercially practicable. 5. The terms of this warranty begin on the date the instrument is delivered to the Buyer and continue for a period of one (1) year.
- Page 8 A member of the SKC global group of companies SKC Limited 11 Sunrise Park, Higher Shaftesbury Road, Blandford Forum, Dorset DT11 8ST United Kingdom T: +44 (0) 1258 480188 F: +44 (0) 1258 480184 E: info@skcltd.com W: www.skcltd.com...
