LOCKZONE Ceiling

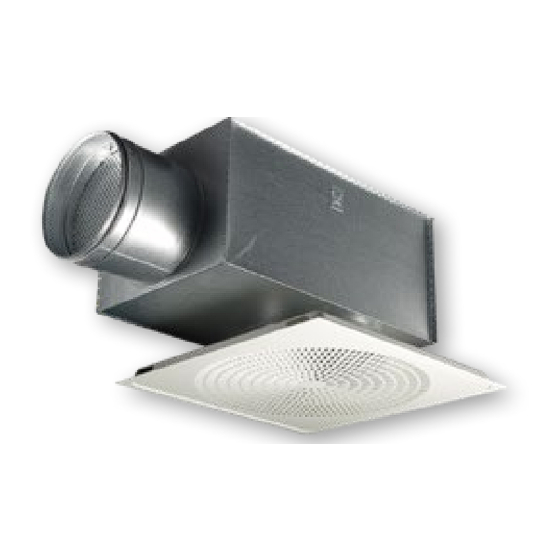

Square ceiling air diffuser for supply air
QUICK FACTS
Guide vane perforations arranged in a radial pattern
○
Designed for flush ceiling mounting
○
Also available in the extract air version
○
Designed for modular suspended ceilings
○
○ Fast and simple installation and commissioning through
Swegon Quick Access
○ ALS commissioning box with 1 or 2 transitions
between the inlet and outlet
Available in a version with low overall height
○
○ Adapter for false ceilings
Air diffuser size 250-500 and 315-500 adapted for
○
ADAPTER
Standard colour White RAL 9003
○
- 5 alternative standard colours
- Other colours upon request
AIR FLOW - SOUND PRESSURE ROOM (Lp10A) *)
25 dB(A)
LOCKZONE C
Size
l/s
125-400
38
125-600 33
160-400 53
160-600 47
200-500 80
200-600 78
250-500 102
250-600 110
315-500
138
315-600 135
400-600 220
25 dB(A)
LOCKZONE C ALS
Size Size
l/s
125-400 100-125 23
125-600 100-125 21
160-400 125-160 33
160-600 125-160 30
200-500 160-200 48
200-600 160-200 45
250-500 200-250 72
250-600 200-250 77
315-500 200-315 80
315-500 250-315 97
315-600 250-315 108
400-600 315-400
160
The data is specified for extract air at 50 Pa total pressure when an ALS commis-
sioning box is used.
*) L = Sound pressure incl. A-filter with 4 dB room attenuation and 10 m
p10A
room absorption area.
30 dB(A) 35 dB(A)
m /h l/s m /h l/s
3 3
137 43 155 50
119 39 141 45
191 60 216 72
169 54 195 67
288 90 324 105
281 90 324 105
367 120 432 135
396 130 468 147
497 161 580 186
486 150 540 175
792 255 918 285
30 dB(A) 35 dB(A)
m /h l/s m /h l/s
3 3
82 28 101 34
76 26 94 31
119 40 144 48
108 37 133 45
173 61 220 73
162 58 209 70
259 87 313 102
277 92 331 112
288 100 360 120
349 125 450 141
389 130 468 146
576 190 684 225
m /h
3
180
166
260
242
378
378
486
593
670
630
1026
m /h
3
123
112
173
162
263
252
367
404
432
508
526
810
