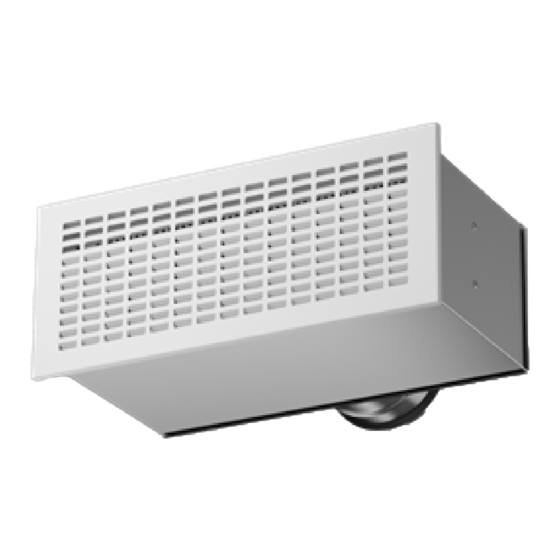

Swegon LOCKZONE Wall Quick Start Manual

Rectangular perforated wall diffusers
Hide thumbs Also See for LOCKZONE Wall:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
LOCKZONE Wall
Rectangular perforated wall diffusers
QUICK FACTS
Guide vane perforations
○
Cleanable
○
Simple adjustment
○
Used together with ALV commissioning box
○
○
Standard colour White RAL 9003
-
5 alternative standard colours
-
Other colours upon request
AIR FLOW - SOUND PRESSURE ROOM (Lp10A) *)
LOCKZONE W
ALV
Size
Size
300-150
300-150-100
400-150
400-150-125
400-200
400-200-160
550-250
550-250-200
550-300
550-300-250
*) Lp10A = Sound pressure incl. A-filter with 4 dB room attenuation and 10 m
room absorption area.
The data specified in the table is applicable to 50 Pa total pressure.
25 dB(A)
30 dB(A)
35 dB(A)
l/s
m
/h
l/s
m
/h
l/s
3
3
14
50
18
65
33
24
86
31
112
50
38
137
49
176
83
56
202
71
256
100
95
342
110
396
160
m
/h
3
119
180
299
360
549
2
