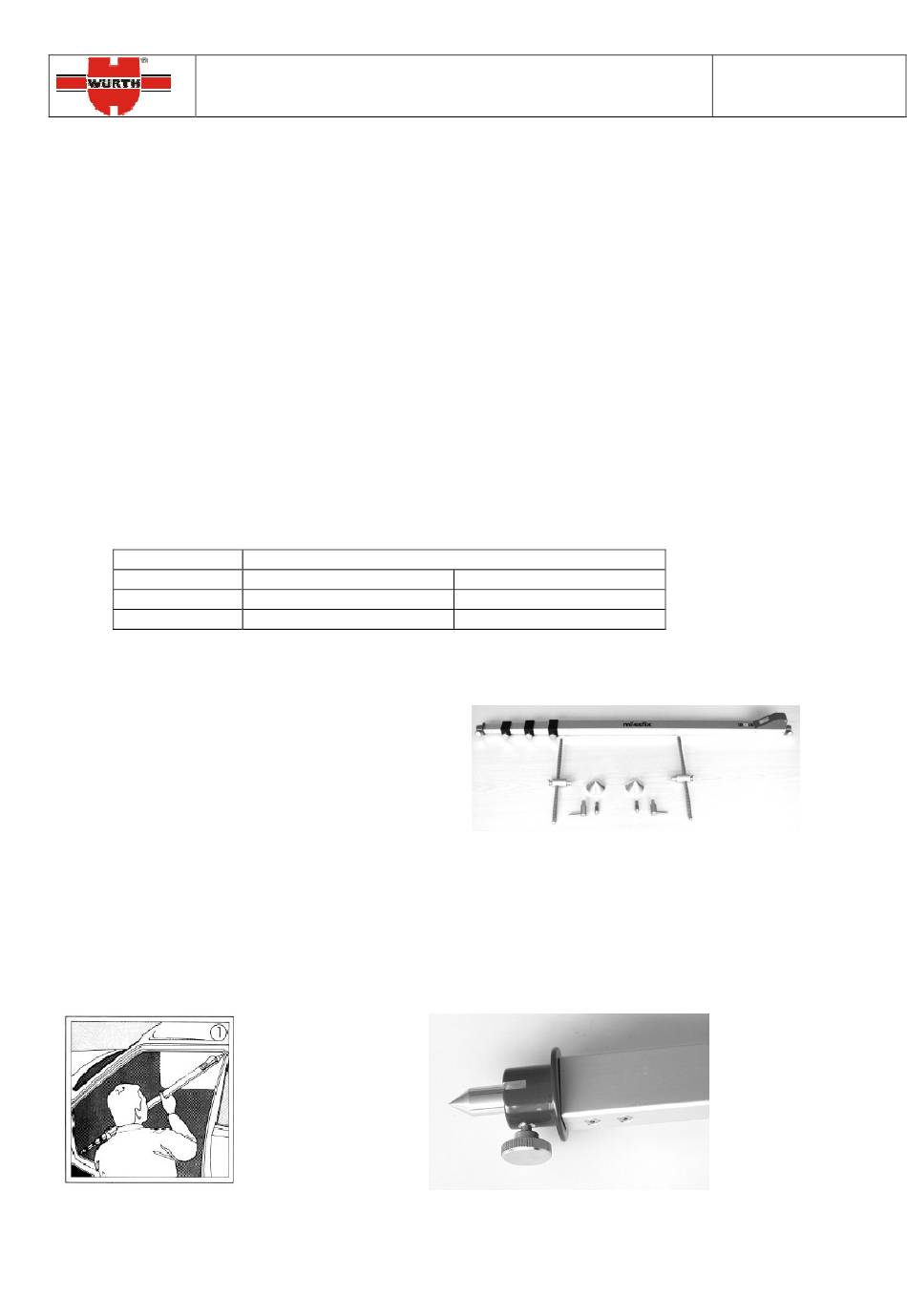

Würth Auto-Measurefix F281119-106 User Manual

1 General information for users

Würth Auto-Measurefix is a high quality product and is intended to be used for the following applications:
Measuring a car's body after a crash
o
Quality control after repairs of a car body
o
To maximize the lifetime of your Auto-Measurefix, the following items need to be considered:
Handle the Auto-Measurefix carefully as it is a high precision measuring unit.
o
Don't collapse the telescopic tubes when they are soiled. In case of soiling clean them carefully with a dry
o
cloth.
NEVER lubricate the aluminium tubes with oil! The Auto-Measurefix must not be used for measuring in any
o
kind of fluid.
DANGER: Take care on electrical wires as the Auto-Measurefix is conductive! Don't touch electrical wires
o
with your Auto-Measurefix.
Regularly check the function and accuracy of your Auto-Measuringfix. Compare the length shown in the
o
analog display with a folding rule or a measuring tape. Please ensure that the analog display of your Auto-
Measurefix shows the following values in case the unit is totally collapsed. The displayed value may vary
according to the following table:
Part no.
F281 219-106
F281 119-106
F281 319-106

2 Scope of delivery

1 Auto-Measuring fix
o
2 90 degree measuring tips
o
2 measuring tubes
o
2 measuring tube holders
o
2 regular measuring tips
o
2 cone pins
o

3 Usage of Auto-Measurefix

Checking the width of any kind of openings
It is recommended to use the measuring tips. They are attached to the Auto-Measurefix as shown below. Fix the tip
by fastening the knurl screw.
Auto-Measurefix User's Manual
Collapsed length
918 mm – 922 mm
413 mm – 417 mm
948 mm – 952 mm
36,14 in – 36,3 in
16,26 in – 16,42 in
37,32 in – 37,48 in
F281119-106
F281219-106
F281319-106
