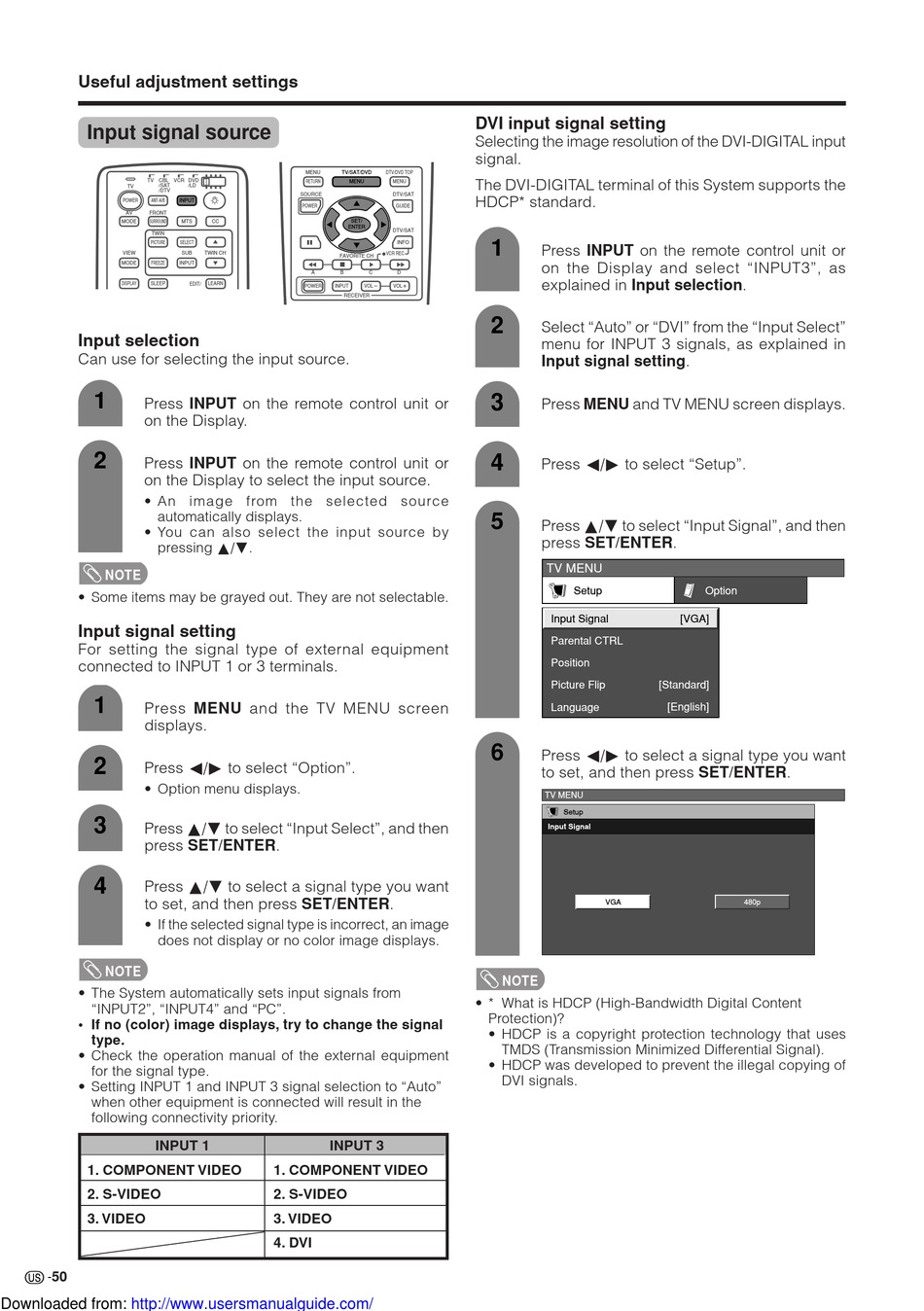

Useful adjustment settings

Input signal source

TV CBL VCR
/SAT
TV
/DTV
POWER ANT-A/B
AV FRONT
MODE SURROUND
TWIN
VIEW
MODE FREEZE
DISPLAY SLEEP
Input selection
Can use for selecting the input source.
1
Press INPUT on the remote control unit or
on the Display.
2
Press INPUT on the remote control unit or
on the Display to select the input source.
• An image from the selected source
automatically displays.
• You can also select the input source by
pressing a/b.
NOTE
• Some items may be grayed out. They are not selectable.
Input signal setting
For setting the signal type of external equipment
connected to INPUT 1 or 3 terminals.
1
Press MENU and the TV MENU screen
displays.
2
Press c/d to select "Option".
• Option menu displays.
3
Press a/b to select "Input Select", and then
press SET/ENTER.
4
Press a/b to select a signal type you want
to set, and then press SET/ENTER.
• If the selected signal type is incorrect, an image
does not display or no color image displays.
NOTE
• The System automatically sets input signals from
"INPUT2", "INPUT4" and "PC".
• If no (color) image displays, try to change the signal
type.
• Check the operation manual of the external equipment
for the signal type.
• Setting INPUT 1 and INPUT 3 signal selection to "Auto"
when other equipment is connected will result in the
following connectivity priority.
INPUT 1
1. COMPONENT VIDEO
2. S-VIDEO
3. VIDEO
50
Downloaded from: http://www.usersmanualguide.com/
MENU TV/SAT/DVD
DVD
RETURN MENU
/LD
SOURCE
INPUT
POWER
SET/
MTS CC
ENTER
SELECT
SUB TWIN CH
FAVORITE CH
INPUT
A B
EDIT/ LEARN
POWER INPUT
RECEIVER
INPUT 3
1. COMPONENT VIDEO
2. S-VIDEO
3. VIDEO
4. DVI
DVI input signal setting
Selecting the image resolution of the DVI-DIGITAL input
signal.
DTV/DVD TOP
The DVI-DIGITAL terminal of this System supports the
MENU
DTV/SAT
HDCP* standard.
GUIDE
DTV/SAT
1
INFO
VCR REC
C D
VOL VOL
2
3
4
5
6
NOTE
• * What is HDCP (High-Bandwidth Digital Content
Protection)?
• HDCP is a copyright protection technology that uses
TMDS (Transmission Minimized Differential Signal).
• HDCP was developed to prevent the illegal copying of
DVI signals.
Press INPUT on the remote control unit or
on the Display and select "INPUT3", as
explained in Input selection.
Select "Auto" or "DVI" from the "Input Select"
menu for INPUT 3 signals, as explained in
Input signal setting.
Press MENU and TV MENU screen displays.
Press c/d to select "Setup".
Press a/b to select "Input Signal", and then
press SET/ENTER.
TV MENU
Setup Option

Input Signal

[VGA]

Parental CTRL

Position

Picture Flip [Standard]
[English]
Language
Press c/d to select a signal type you want
to set, and then press SET/ENTER.
TV MENU
Setup
Input Signal
VGA 480p
