Part names

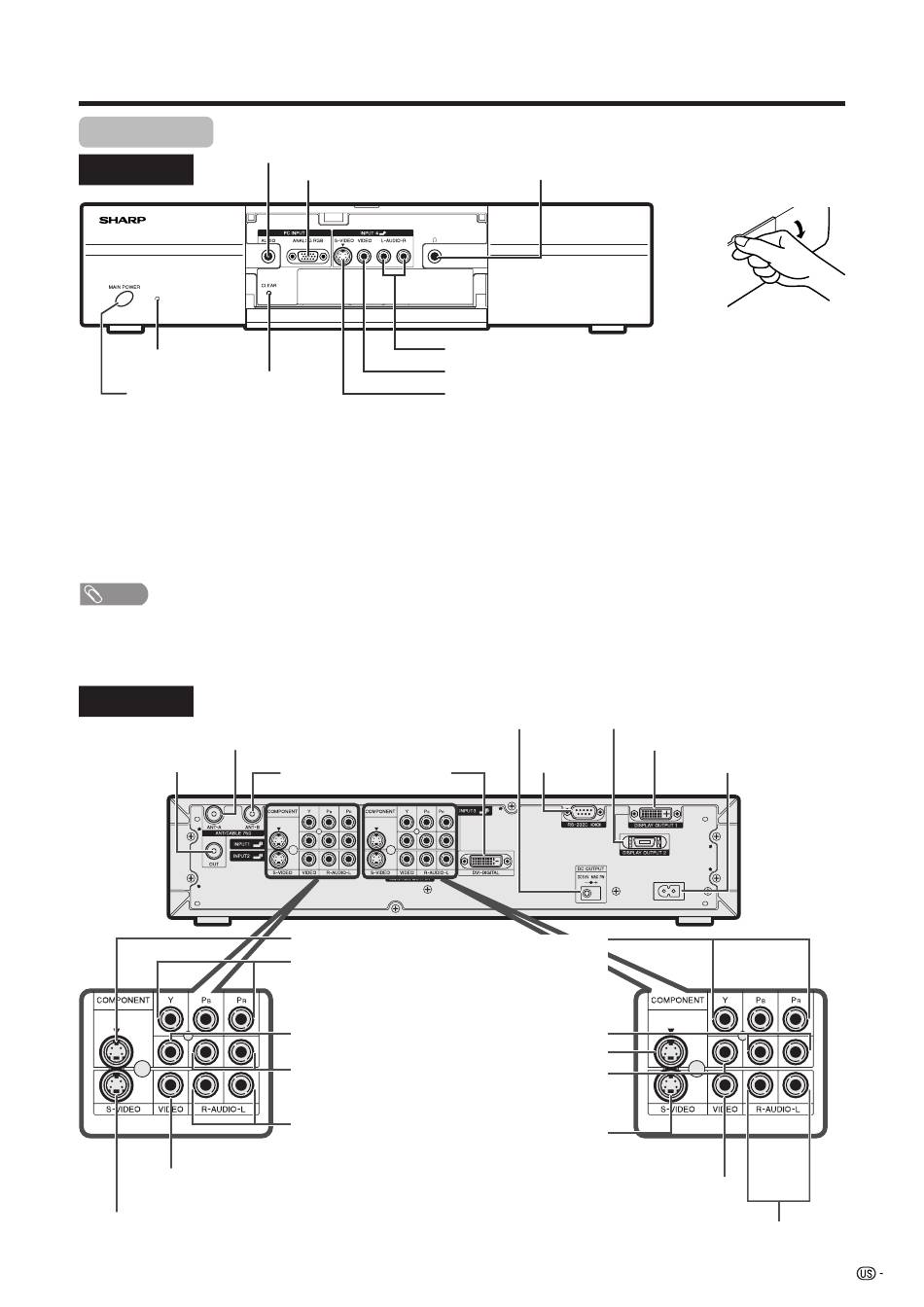

AVC System

Front view
STANDBY/ON indicator
MAIN POWER button
* If the AVC System is switched on but it does not appear to be operating correctly, it may need resetting. In this
case, press CLEAR, shown in the diagram, lightly with the end of a ballpoint pen or other pointed object.
This will reset the System as shown below.
• AV MODE resets to USER
• TV channel returns to initial channel setting (Air:2ch, Cable:1 or 2ch)
• Twin picture resets to normal
• Audio setting initializes
• SRS resets to off
• Image position initializes
NOTE
• Pressing CLEAR will not work if the System is in standby mode (indicator lights red).
• Pressing CLEAR will not delete channel preset or secret number. See page 61 for clearing the secret number when you
know it. See page 83 for initializing to the factory preset values when you forget your secret number.
Rear view
Antenna (A) output
terminal
INPUT 2 terminal (VIDEO)
INPUT 2 terminal (S-VIDEO)
Downloaded from: http://www.usersmanualguide.com/
PC INPUT terminal (AUDIO)
PC INPUT terminal (ANALOG RGB)
CLEAR*
(Terminal for expanded functionality in
Antenna (A) input terminal
Antenna (B)
input terminal
INPUT 1 terminal (S-VIDEO)
INPUT 1 COMPONENT
video terminals (Y, P
INPUT 1 terminal
(VIDEO)
INPUT 1 terminals
(AUDIO L/R)
INPUT 2 terminals
(AUDIO L/R)
Headphone
(When connecting headphones, the sound from the
speakers is muted.)
INPUT 4 terminals (AUDIO L/R)
INPUT 4 terminal (VIDEO)
INPUT 4 terminal (S-VIDEO)
DC OUTPUT terminal
the near future.)
DVI-DIGITAL RS-232C
INPUT terminal
terminal
INPUT 3 COMPONENT
video terminals (Y, P
, P )
B R
INPUT 3 terminals (AUDIO L/R)
INPUT 3 terminal (S-VIDEO)
INPUT 3 terminal (VIDEO)
MONITOR OUTPUT terminal
(S-VIDEO)
How to open the door.
DISPLAY OUTPUT 2 terminal
DISPLAY OUTPUT 1 terminal
AC INPUT terminal
, P )
B R
MONITOR OUTPUT
terminal (VIDEO)
MONITOR OUTPUT terminals (AUDIO L/R)
