Watching TV

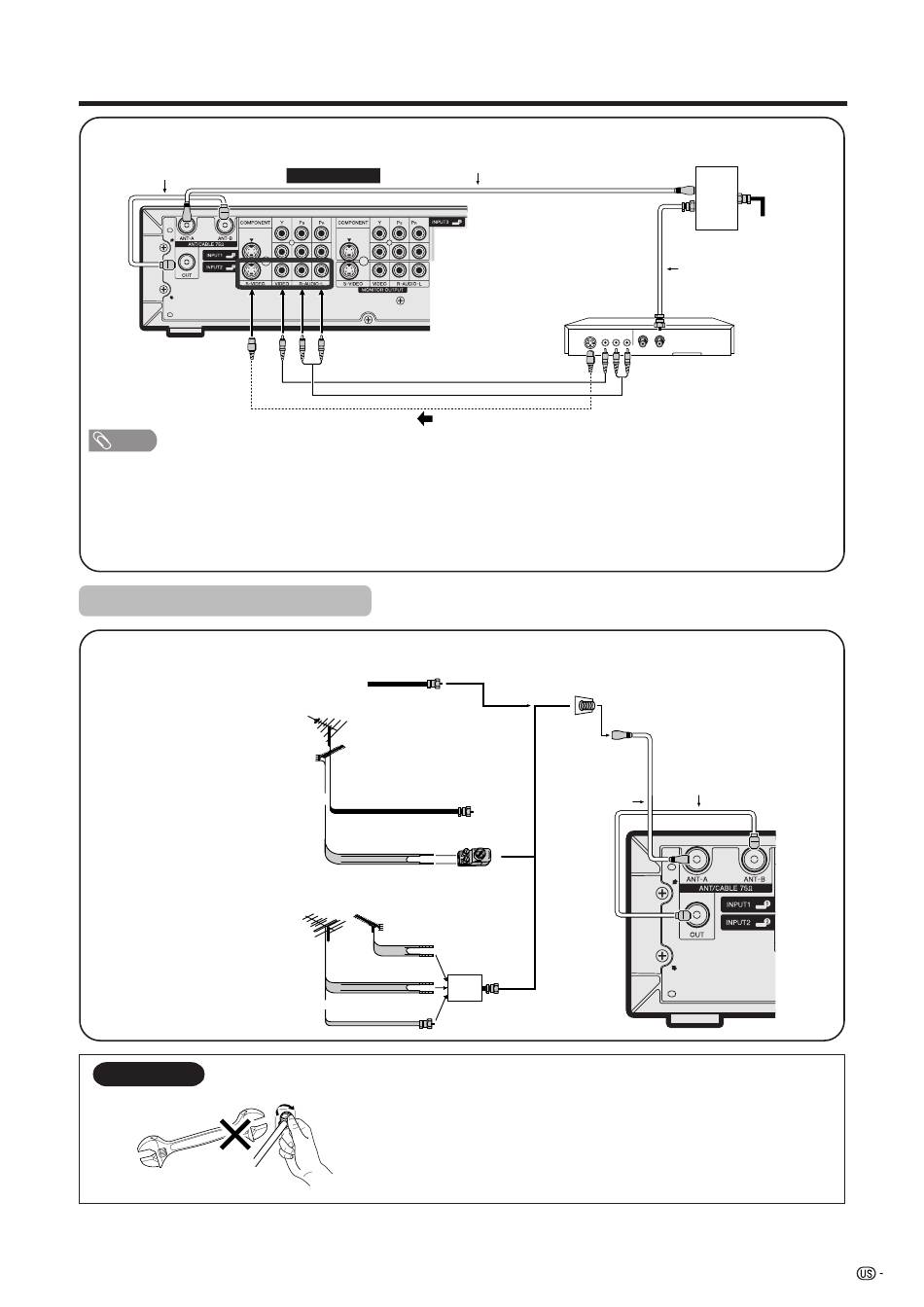

C. Connecting Antenna Cable with VCR
RF Cable
(Supplied)
NOTE
• Be sure to remember what kind of connection is made with your System.
• Shown here is the preferred method of connecting a VCR to your TV if you are in an area with good signal reception. This
way you can view either TV programs or VCR tapes and not be concerned about the position of the VCR's TV/VCR switch
and you can enjoy stereo tape playback from stereo VCR.
• If your VCR has an S-Video terminal, S-video connection is recommended.
• If your lead cable is a 300-ohm twin-lead cable or UHF/VHF separate cable, use a 300/75-ohm adapter or combiner
(output side is 75-ohm coaxial) to connect to the TV (see below).

Outdoor antenna connection

Connecting Antenna Cable
Cable without a CATV
VHF/UHF antenna
Separate VHF/UHF
NOTICE
75-ohm coaxial cable
Downloaded from: http://www.usersmanualguide.com/
Rear Terminals
Video Cable (commercially available)
Audio Cable (commercially available)
S-video Cable (commercially available)
Cable TV lead-In
converter
Combination
or
75-ohm coaxial cable (round)
300-ohm twin-lead (flat)
VHF UHF
ANTENNA ANTENNA
antenna
300-ohm twin-lead
or
75-ohm coaxial cable
F-type connector
Coaxial Antenna Cable (commercially available)
VCR
300/75-ohm adapter
(commercially available)
300-ohm
twin-lead
Combiner
(commercially
available)
IN OUT
F-type connector should be finger-tightened only.
When connecting the RF cable to the TV set,
do not tighten F-type connector with tools.
If tools are used, it may cause damage to your
TV set.
(The breaking of internal circuit, etc.)
2-way
signal
splitter
(not
supplied)
Cable lead-in
Coaxial Antenna Cable
(commercially available)
S-VIDEO VIDEO AUDIO OUT IN
Home Antenna
terminal (75-ohm)
RF Cable (Supplied)
Coaxial cable
(commercially
available)
