Page 1: Operating Instructions
Operating instructions CC4520 You will fi nd the addresses and phone numbers of the service organisation on the guarantee card. 3LIK1224... - Page 2 Manual EN 3 - EN 14 Pictograms used Important information...
-
Page 3: Table Of Contents
CONTENTS Your canopy hood Description Introduction Safety Precautions you must take Extraction systems Controls Maintenance Cleaning Grease filters Carbon filter Lighting Installation General Electrical connection Assembly Appendix Disposal EN 3... -
Page 4: Your Canopy Hood

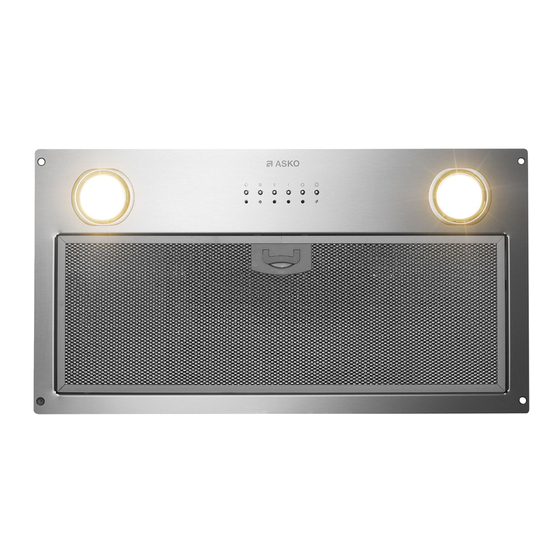

YOUR CANOPY HOOD Description Lighting Switch off Fan position 1 Fan position 2 Fan position 3 Timer Introduction This user manual gives you a quick overview of all the possibilities offered by the appliance. You will find information on safety measures and maintaining the appliance. -
Page 5: Safety
SAFETY Precautions you must take Make sure the appliance is installed by an authorised installer (see "Installation" chapter). Do not connect the appliance to the mains before completing the installation. • Connect the appliance in accordance with the applicable regulations in your area. •... - Page 6 SAFETY Precautions you must take • When replacing the lights, first disconnect the appliance from the mains! Only use identical lamps with the wattage indicated. Only use the cooker hood with lamps installed, in order to reduce the risk of electric shock. •...
- Page 7 Controls Switching fan on and off Press the speed button C, D or E The extractor hood switches on in the corresponding position. Press the off button B. The fan will switch off. Switching lighting on and off Press the lighting button A. The lighting switches on.
- Page 8 MAINTENANCE Cleaning Attention! Before performing any maintenance operation, isolate the hood from the electrical supply by unplugging the appliance or switching off your household’s master switch. The cooker hood should be cleaned regularly (at least as frequently as the grease filters are cleaned) both internally and externally.
-
Page 9: Grease Filters
MAINTENANCE Grease filters Removing the grease filters • Move lock ‘C’ in a downward direction and remove filter ‘G’ from the hood. Carbon filter Replacing the carbon filter The carbon filter must always be used if the cooker hood is not ducted. 1. -
Page 10: General
INSTALLATION General This appliance must be connected to the electric mains by an authorised installer who is familiar with the safety precautions and will carry them out. The appliance is in compliance with European guidelines. Important information: • The distance between the lowest point of the cooker hood and a hob must be at least 65 cm. -
Page 11: Electrical Connection
INSTALLATION Connection Electric connection The appliance has been manufactured as a class II, therefore no earth cable is necessary. Make sure the supply voltage ratings correspond with those stated on the appliance data plate. The connection to the mains is carried out as follows: BROWN = phase L BLUE = phase N... -
Page 12: Assembly
INSTALLATION Building in dimensions Assembly • Remove the grease filters. • Make an opening underneath one of the kitchen cupboards. Check the dimensions on the installation drawing. • Screw the hood into the kitchen cabinet with 4 screws. EN 12... -
Page 13: Disposal
APPENDIX Disposal Disposal of appliance and packaging This appliance was manufactured using sustainable materials. It must be disposed of responsibly at the end of its life cycle. The local authorities can provide you with the relevant information. The packaging of this appliance is recyclable. It may have been made from: •... - Page 14 EN 14...
