Instructions for use Telescopic cooker hood CO4627S / 4000 CO4927S / 4000... - Page 2 Manual EN 3 - EN 16 Pictograms used : Important information...
-
Page 3: Table Of Contents
CONTENT Your telescopic cooker hood Description Introduction Controls Maintenance Cleaning Cleaning the glass panel Metal grease filters Resetting the alarm signal Cleaning the filters Charcoal filter (recirculation version) Changing the charcoal filter Lighting unit Installation General Electrical connection Mounting the cooker hood Technical specification Appendice Disposal of appliance and packaging... -
Page 4: Your Telescopic Cooker Hood

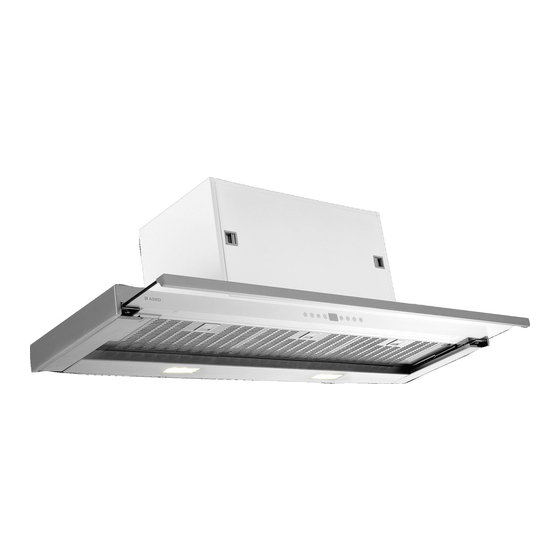

YOUR TELESCOPIC COOKER HOOD Description Switch fan on/off Reduce extractor capacity Increase extractor capacity Engage intensive mode Clean air function/filter indication Timer function Switch lighting on/off Dim lighting Display Introduction This user manual gives you a quick overview of all the possibilities offered by the appliance. -
Page 5: Use
Controls Switching the fan on and off The cooker hood works only with the glass plate fully extended. If the glass plate is extended (in the Off position), the cooker hood automatically starts in position 1. • Switch the fan on with the on/off button (A) and select the desired extractor setting with buttons ‘B’... - Page 6 Switching on the timer • Switch the fan on with the on/off button (A) and select the desired extractor setting with buttons ‘B’ and ‘C’. • Press the Timer button ‘F’. The cooker hood switches off automatically after 30 minutes. Switch off the Timer function by pressing button ‘F’...
-
Page 7: Maintenance
MAINTENANCE Cleaning Attention! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. -
Page 8: Cleaning The Glass Panel
MAINTENANCE Cleaning the glass panel • Open the glass panel by pulling it out. • Pull the 2 hooks to unlock the glass panel for a further external movement. • Now the full glass surface can be cleaned. • It is recommended to use a neutral detergent liquid and a damp cloth to clean the glass. -
Page 9: Cleaning The Filters
MAINTENANCE Cleaning the Filters • Open the glass panel • Remove the filters one at a time, pushing them towards the back of the unit and at the same time pulling downward. • Wash the filters without bending them, and leave them to dry completely before replacing. -
Page 10: Changing The Charcoal Filter
MAINTENANCE Resetting the alarm signal • Turn the lights and the motor off, then disable the 24h function, if enabled. • Press button E. Changing the Filter • Open the glass panel. • Remove the metal grease filters. • Remove the saturated charcoal filter by releasing the fixing hook. •... -
Page 11: Installation
INSTALLATION General This appliance should be connected to the power supply by a recognized fitter who is familiar with, and works according to the correct safety regulations. This appliance meets the European requirements. Important that you know: • The minimum distance between the supporting surface for the cooking vessels on the gashob and the lowest part of the range hood must be not less than 65 cm. -
Page 12: Electrical Connection
INSTALLATION Electrical connection This appliance is manufactured in class I, it must therefore be connected to the earth system. Make sure the supply voltage ratings correspond with those stated on the appliance data plate. The connection to the mains is carried out as follows: BROWN = phase L BLUE = phase N... -
Page 13: Mounting The Cooker Hood
INSTALLATION Montage Drilling the support surface and fitting the Hood • The hood can be fitted directly on the lower surface of the wall units using the snap-on Side Supports. • Make an opening on the lower surface of the wall unit, as indicated. •... - Page 14 INSTALLATION If necessary, adjust the whole filter holder unit and proceed as follows: • Loosen the four adjustment screws Vr and close the glass panel again. • Move the entire filter holder unit until it is properly aligned with the shelf.
-
Page 15: Technical Specification
TECHNICAL SPECIFICATIONS Hood type CO4627S CO4927S Telescopic cooker hood Telescopic cooker hood Type / Approval 4000 4000 Control type Electronic push buttons Electronic push buttons Width Supply (Voltage, frequency) 220~240 V / 50 Hz 220~240 V / 50 Hz Power... -
Page 16: Appendice
APPENDICE Disposal Disposal of appliance and packaging By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The local authorities can provide you with the relevant information. - Page 17 FR 17...
- Page 18 FR 18...
- Page 19 FR 19...
- Page 20 566262 566262...
