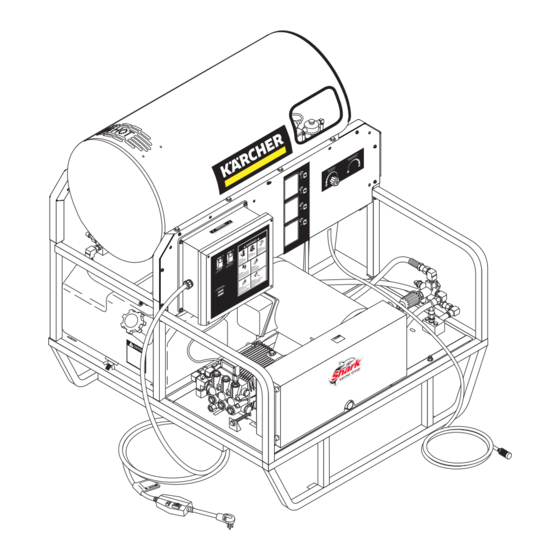

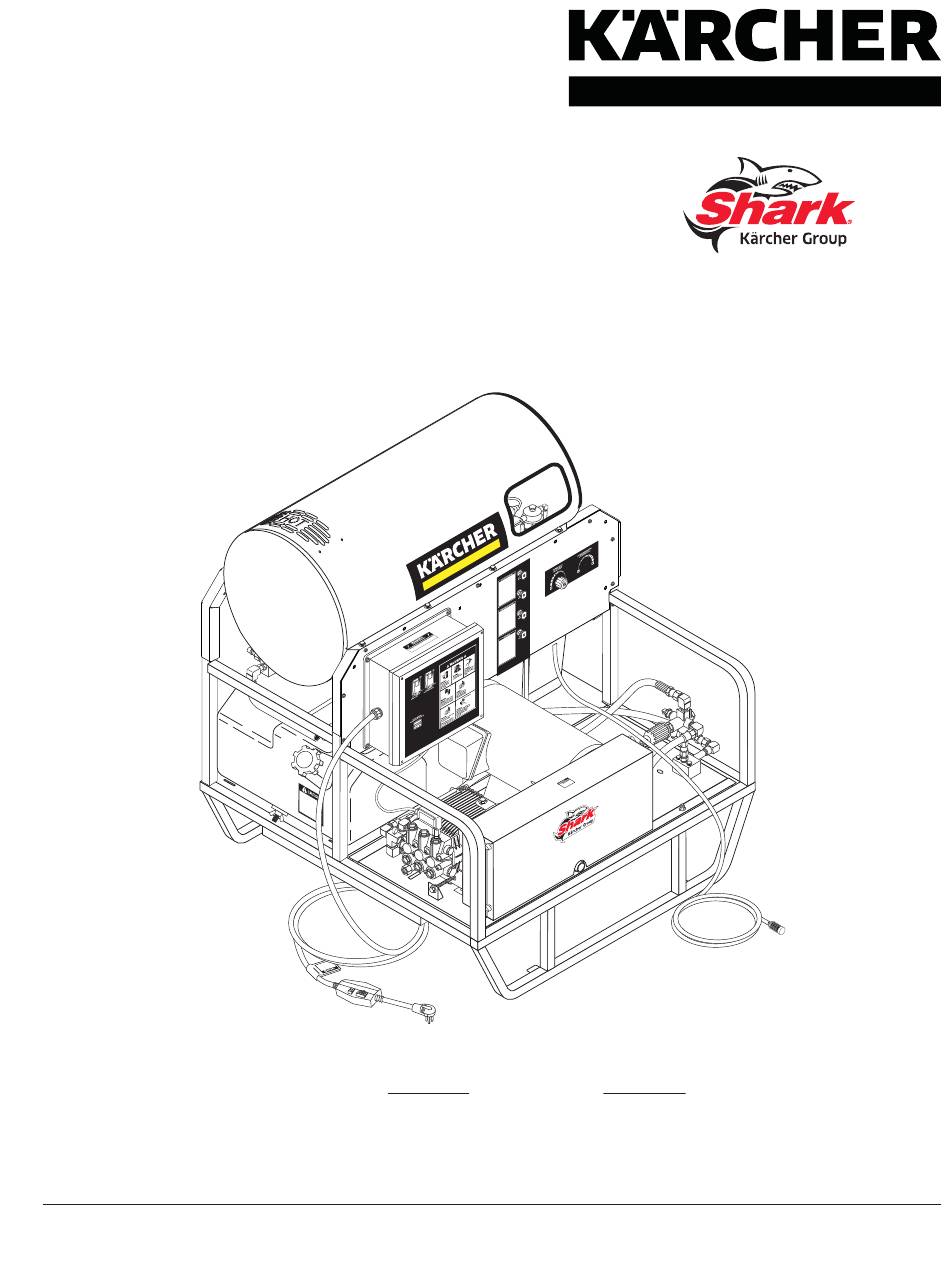

OPERATOR'S MAN U AL
To locate your local Kärcher Shark Commercial Pressure Washer Dealer nearest you,
visit www.karchercommercial.com or www.karchershark.com
12/18/17
MODEL #
HDS 4.8/30 Ea / SSE-503007A
HDS 4.8/30 Eb / SSE-503007B
HDS 4.8/30 Ec / SSE-503007C
ORDER #
1.575-620.0
1.575-621.0
1.575-622.0
9.800-187.0-C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDS 4.8/30 Ea / SSE-503007A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kärcher HDS 4.8/30 Ea / SSE-503007A

Summary of Contents for Kärcher HDS 4.8/30 Ea / SSE-503007A

  • Page 1 OPERATOR’S MAN U AL MODEL # ORDER # HDS 4.8/30 Ea / SSE-503007A 1.575-620.0 HDS 4.8/30 Eb / SSE-503007B 1.575-621.0 HDS 4.8/30 Ec / SSE-503007C 1.575-622.0 To locate your local Kärcher Shark Commercial Pressure Washer Dealer nearest you, visit www.karchercommercial.com or www.karchershark.com 12/18/17 9.800-187.0-C...

  • Page 2: Exploded View - Left Side

    EXPLODED VIEW - LEFT SIDE Line to Detergent Supply 66, 67 78 79 Line to Pump Thermostat (Enlarged View) Detail See Float Tank Illus. Detail See Control Panel Illus. Line to Pump 620-622 • 9.800-187.0-C...

  • Page 3: Exploded View - Right Side

    EXPLODED VIEW - RIGHT SIDE Steam Option Line from Float Tank 70, 71 Detail See Pump Illus. 98001870-2 Detergent Pump 620-622 • 9.800-187.0-C...

  • Page 4: Exploded View Parts List

    EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.803-002.0 Face Plate, Belt Guard 8.711-785.0 Hose, 3/8" Push-On 24" ▲ Screw, SS #10 x 1/2" 9.802-872.0 Tab, Belt Guard Mount 9.802-797.0 Hex Head Tek 9.802-794.0 Nut, Cage, 1/4" x 12 Gauge 8.706-248.0 Plug 3/8...
  • Page 5 EXPLODED VIEW PARTS LIST (CONT) ITEM PART NO. DESCRIPTION 9.802-060.0 Isolator 9.802-804.0 Washer, 5/16" Flat 9.802-776.0 Nut, 5/16" ESNA 9.802-519.0 Strain Relief (622.0) 9.802-521.0 Strain Relief (620.0, 621.0) 1 9.802-429.0 Motor Cord, 12/4 (622.0) 36" 9.804-049.0 Motor Cord, 6-3 (620.0) 36"...
  • Page 6 FLOAT TANK EXPLODED VIEW To Pump FLOAT TANK EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.804-042.0 Tank, Float, 2-1/2 Gal., 9.802-061.0 Ball, Float, Black Plastic Blank 9.802-152.0 Swivel, 3/4" SAE FEM 8.749-328.0 Valve, Float, Plastic 9.802-261.0 Hose, 3/4"...
  • Page 7 HOSE, SPRAY GUN, & WAND EXPLODED VIEW HOSE, SPRAY GUN, & WAND EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.739-314.0 Hose, 3/8" x 50', 1 Wire, Tuff-Flex w/Coupler 9.802-229.0 Spray Gun, Shut-Off, AP 1000 9.803-805.0 Lance, Spray, Insulated, 35.5" SS 9.802-164.0 Coupler, 1/4"...

  • Page 8: Pump Assembly Exploded View

    PUMP ASSEMBLY EXPLODED VIEW To Float Tank (620.0, 621.0, 622.0) Detergent Valve To Coil Inlet 98001870-3 620-622 • 9.800-187.0-C...

  • Page 9: Pump Assembly Exploded View Parts List

    PUMP ASSEMBLY EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 9.803-413.0 Pump, Kärcher KT5030 9.803-013.0 Rail, Pump, Self Aligning 9.802-632.0 Cap, Valve w/1/4" Gauge Port 9.802-039.0 Elbow, 1/2" JIC x 3/8", 90° 1 9.802-123.0 Tee, 1/2" w/1/8" Hole, Street 9.802-131.0 Elbow, 1/2"...
  • Page 10 CONTROL PANEL EXPLODED VIEW (1.575-620.0,-621.0) 620-622 • 9.800-187.0-C...
  • Page 11 CONTROL PANEL PARTS LIST (1.575-620.0,-621.0) ITEM PART NO. DESCRIPTION 9.804-051.0 Box, 12" x 10" x 5-1/4" 9.804-055.0 Plate, Stand-off 8.724-281.0 Contactor (620.0) 8.724-281.0 Contactor (621.0) 8.724-307.0 Overload (620.0) 8.724-306.0 Overload (621.0) 9.802-551.0 Transformer, Micron 240/480V-120V, 50/60 HZ, .050KVA 9.802-451.0 Switch, Rocker, Carling w/ Green Lens 9.802-283.0 Hour Meter...
  • Page 12 CONTROL PANEL EXPLODED VIEW (1.575-622.0) 98001870-1 620-622 • 9.800-187.0-C...
  • Page 13 CONTROL PANEL PARTS LIST (1.575-622.0) ITEM PART NO. DESCRIPTION 9.804-051.0 Box, 12" x 10" x 5-1/4" 9.804-055.0 Plate, Stand-off 8.724-272.0 Contactor 8.724-304.0 Overload 9.802-550.0 Transformer, Micron 240/480V-120/240V, .500KVA 9.802-451.0 Switch, Rocker, Carling w/Green Lens 9.802-283.0 Hour Meter 9.802-515.0 Strain Relief, Straight LQ Tite 9.802-524.0 Locknut, 1/2"...

  • Page 14: Steam Pump Exploded View Parts List

    STEAM PUMP EXPLODED VIEW To Detergent Valve STEAM PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-136.0 Bushing, 3/4" x 1/2" 9.802-142.0 Hose Barb, 1/4" x 1/8" NPT, 90° 9.802-036.0 Nipple, 1/2" JIC x 3/8" MPT Steel 9.802-254.0 Hose, 1/4"...

  • Page 15: Specifications

    SPECIFICATIONS BECKETT BURNER SPECIFICATIONS Burner Burner Fuel/Pump Fuel Model No. Assy No. Fuel Nozzle Transformer Motor Solenoid/Cord Solenoid/Coil Electrode 1.575-620.0 9.804-053.0 8.717-366.0 9.803-055.0 9.804-054.0 9.802-645.0 9.802-640.0 9.802-669.0 1.575-621.0 9.804-053.0 8.717-366.0 9.803-055.0 9.804-054.0 9.802-645.0 9.802-640.0 9.802-669.0 1.575-622.0 9.802-556.0 8.717-366.0 9.803-060.0 9.803-056.0 9.802-645.0 9.802-640.0 9.802-669.0...
  • Page 16 KT.1 SERIES PUMP EXPLODED VIEW 9.802-345.0 KT4035.1 Right 9.803-410.0 KT4035.1 Left 9.803-411.0 KT4040.1 Right 9.803-412.0 KT4040.1 Left 9.803-413.0 KT5030.1 Right 9.803-414.0 KT5030.1 Left 9.802-346.0 KT6035.1 Right 9.803-416.0 KT6035.1 Left TORQUE SPECS Item # Ft.-Lbs. KT.1 SERIES PUMP EXPLODED VIEW & PARTS LIST ITEM PART NO.
  • Page 17 KT.1 SERIES PUMP EXPLODED VIEW & PARTS LIST ITEM PART NO. DESCRIPTION See Kit O-Ring Ø1.78 x10.82 See Kit Tefl on Ring See Kit Plunger See Kit Copper Spacer 9.803-143.0 Plunger Rod 9.803-157.0 Connecting Rod 9.802-912.0 Snap Ring 9.802-915.0 Connecting Rod Pin 9.802-889.0 Spring Washer 9.802-937.0...

  • Page 18: Vrt3 Unloader Exploded View And Parts List

    VRT3 UNLOADER EXPLODED VIEW AND PARTS LIST 8.750-297.0, 8 GPM, 2320 PSI 8.750-298.0, 8 GPM, 3630 PSI 8.750-299.0, 8 GPM, 4500 PSI ITEM PART NO. DESCRIPTION 8.750-712.0 Outlet Fitting 8.750-713.0 Knob, Unloader 8.750-709.0 Repair Kit, VRT3, 2320/3630 PSI 8.750-710.0 Repair Kit, VRT3, 4500 PSI (Kit Items: 1, 4, 8-12, 16, 21-22) Unloader Adjustment Procedures Remove lock nut (Item 19).
  • Page 19 PA8 5-3026 UNLOADER EXPLODED VIEW PA8 5-3026 UNLOADER EXPLODED VIEW & PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 12.5000.00 3 x 1 El. Cable L. 1200 mm 60.0164.33 Washer 29.0082.84 Black Nut-40 bar 60.0015.51 Sst Spring 10.3109.92 O-Ring 2.4 x 7.3 mm 60.0134.21 Puls.
  • Page 20 PA8 5-3026 UNLOADER EXPLODED VIEW & PARTS LIST ITEM PART NO. DESCRIPTION 60.0064.31 Piston Housing 15.1021.00 Pin 3 x 14 mm 60.0033.61 Blue Spring 60.0011.31 Spring Guide (sz.cappucc) 11.4574.00 M 8 Nut (sz.cappucc) 10.3213.08 O Ring 3 x 6 mm 60.0052.31 Check Valve 60.0053.51...
