Summary of Contents for Kärcher G 3600 OHT

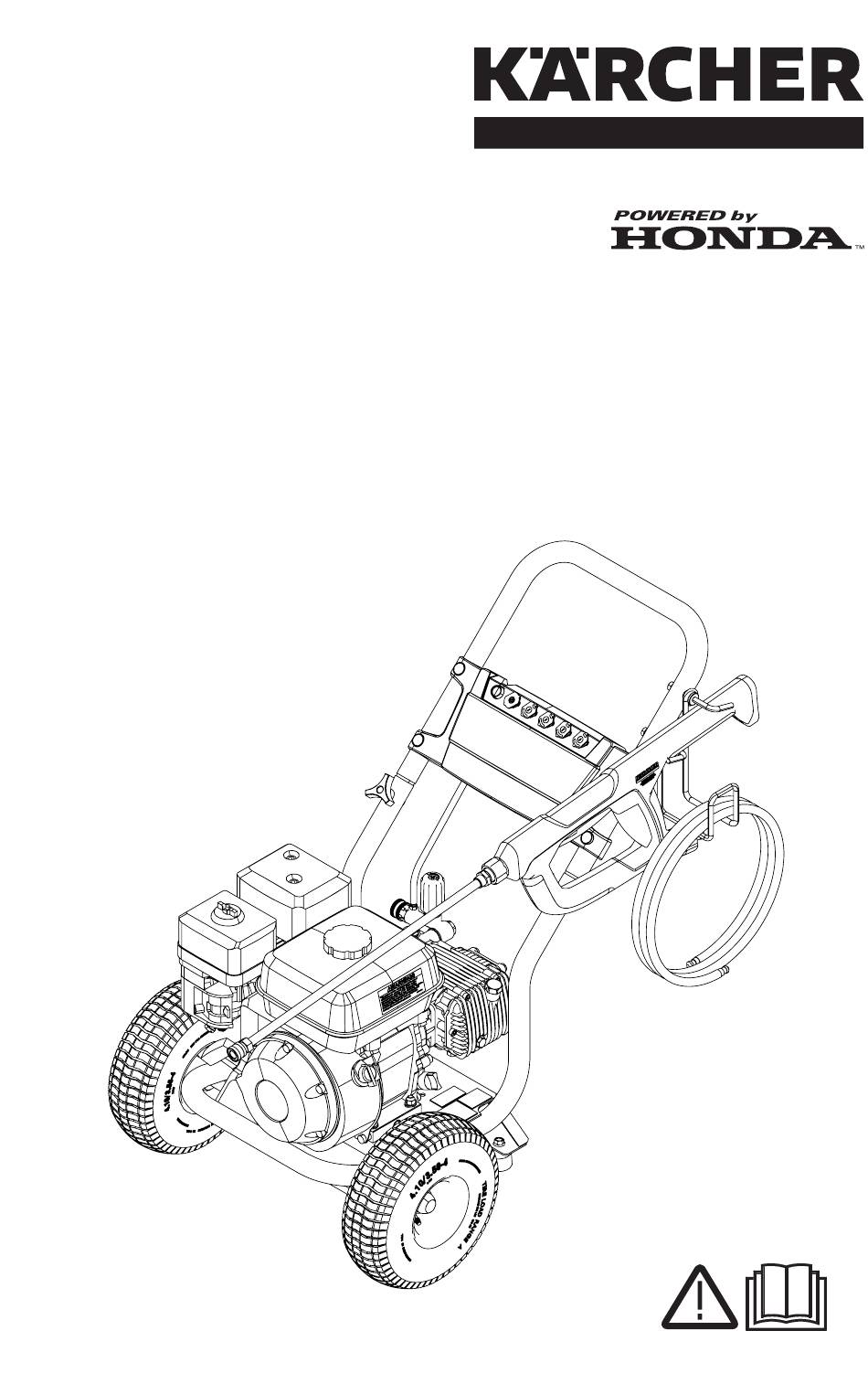

- Page 1 Manual Not For Use in USA and Canada! G 3600 OHT 8.757-210.0 03/18...
-
Page 2: Model Overview
MODEL OVERVIEW Handle Water inlet for garden hose connector Trigger gun High pressure outlet Trigger gun safety lock Detergent suction tube High pressure hose Quick connect nozzles Water inlet filter Petrol tank Engine ON/OFF switch Spray wand Tap adaptor Oil dipstick For engine details see engine manual. - Page 3 The packing material can be recycled. Warranty Information Please do not place the packaging into the ordinary refuse for disponsal, but arrange for the proper recycling. G 3600 OHT Operating Pressure 3600 PSI Old appliances contain valuable materials Water Volume 10.5 L/MIN...
- Page 4 HIGH PRESSURE WASHER OPERATOR MANUAL The high pressure jet may not be directed at persons, animals, live Indicates “an imminently hazardous situation electrical equipment or at the ap- which, if not avoided, will result in death or seri- ous injury.” pliance itself.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Do not direct the jet against yourself or oth Read the operating instructions of ers in order to clean clothes or foot-wear. the engine manufacturer before start-up and follow the safety instructions carefully. Do not use the machine within range of Incorrect fuels shall not be used as they may persons unless they wear protective cloth prove hazardous. - Page 6 IMPORTANT SAFETY INSTRUCTIONS Do not use the machine if a supply cord or important parts of the machine are dam aged, e.g. safety devices, high pressure hoses, trigger gun. Always switch off the mains disconnecting switch when leaving the machine unatend Risk of fire, do not add fuel when the product is operating or still hot.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS The water supply temperature must not ex- ceed 122°F/50°C. Water that has flowed through backflow preventers is considered to be non potable. Never use the pressure washer to draw in Use a water filter to avoid potential damage water contaminated with solvents, e.g.
- Page 8 ASSEMBLY INSTRUCTIONS Quick connect Nozzles kit nozzle kit Wand Spray gun assembly VersaGRIP® Spray gun assembly High pressure Spray gun assembly hose Attach the handle to the frame of the pres- Place the quick connect nozzles (H) in the sure washer. Align holes, insert bolts (B), and nozzle holder (F).
- Page 9 OPERATING INSTRUCTIONS TE 1 If you have further questions regarding the engine, please refer to the engine manual Pull the spring-loaded collar of the wand back included with the unit. to insert your choice of quick connect nozzle. TE 3 Check oil level.
-
Page 10: Using The Accessories
OPERATING INSTRUCTIONS TE 9 TE 6 Open fuel valve. Move the choke to the "ON" Connect garden hose to unit`s water inlet. position (on a warm engine, leave the choke in the OFF position). TE 10 Move the engine on/off switch to the "ON" position. -
Page 11: Working With Detergents
WORKING WITH DETERGENTS TE 3 With the engine running, pull trigger to operate unit. TE 1 Liquid detergent is drawn into the unit and Install the black detergent nozzle for deter- mixed with water. gent application at low pressure. Apply detergent to work area. TE 2 Do not allow detergent to dry on surface. -
Page 12: Maintenance Instructions
SHUTTING DOWN & CLEAN-UP TE 5 TE 1 If detergents have been used, remove deter- Release trigger and engage gun safety lock. gent suction tube from container and insert into 4 liter of fresh water. Siphon water at low pressure for one minute to clear the line of residual detergent. -
Page 13: Cleaning Tips
CLEANING TIPS Pre-rinse cleaning Pre-rinse deck and surface with fresh water. If using Karcher Multipur- surrounding area with fresh water. If using Karcher pose Cleaner, apply to surface at low pressure (for Multipurpose Cleaner, apply to surface at low best results, limit your work area to sections of ap- pressure. -
Page 14: Troubleshooting
CLEANING TIPS Optional accessories are available to further Before cleaning any surface, test spray pa- enhance your cleaning capabilities. These acces- ttern and distance in an inconspicuous area. sories are accurate as of the printing date of this If painted surfaces are peeling or chipping, manual. - Page 15 TROUBLESHOOTING O DETE GE T Detergent suction tube not Check connection properly connected to the machine Detergent is too thick Dilute detergent, for best results use Kärcher detergent Filter on detergent suction Run warm water through filter to remove debris tube is clogged Damaged or clogged deter- Remove obstruction or replace detergent...
-
Page 16: Warranty Information
WARRANTY INFORMATION This Kärcher product is warranted by Kärcher to be free of defects in workmanship and materials under normal use. Specific warranty applies to: serviced by a Kärcher service center a Honda authorized service center a Honda authorized service center a Kohler authorized service center service center year parts and labor warranty. - Page 17 WARRANTY INFORMATION or accessories will void implied warranty. tampering with Kärcher equipment or accessories will void the implied warranty. part or equipment. This warranty is non-transferable and applies only to products purchased through a Kärcher authorized reseller in the Australia and New Zealand. Equipment provided, but not manu- factured by Kärcher such as Honda and Kohler petrol engines are subject to warranties and service through said manufacturer’s service centers according to the terms and conditions provided by the respective original equipment manufacturer.
