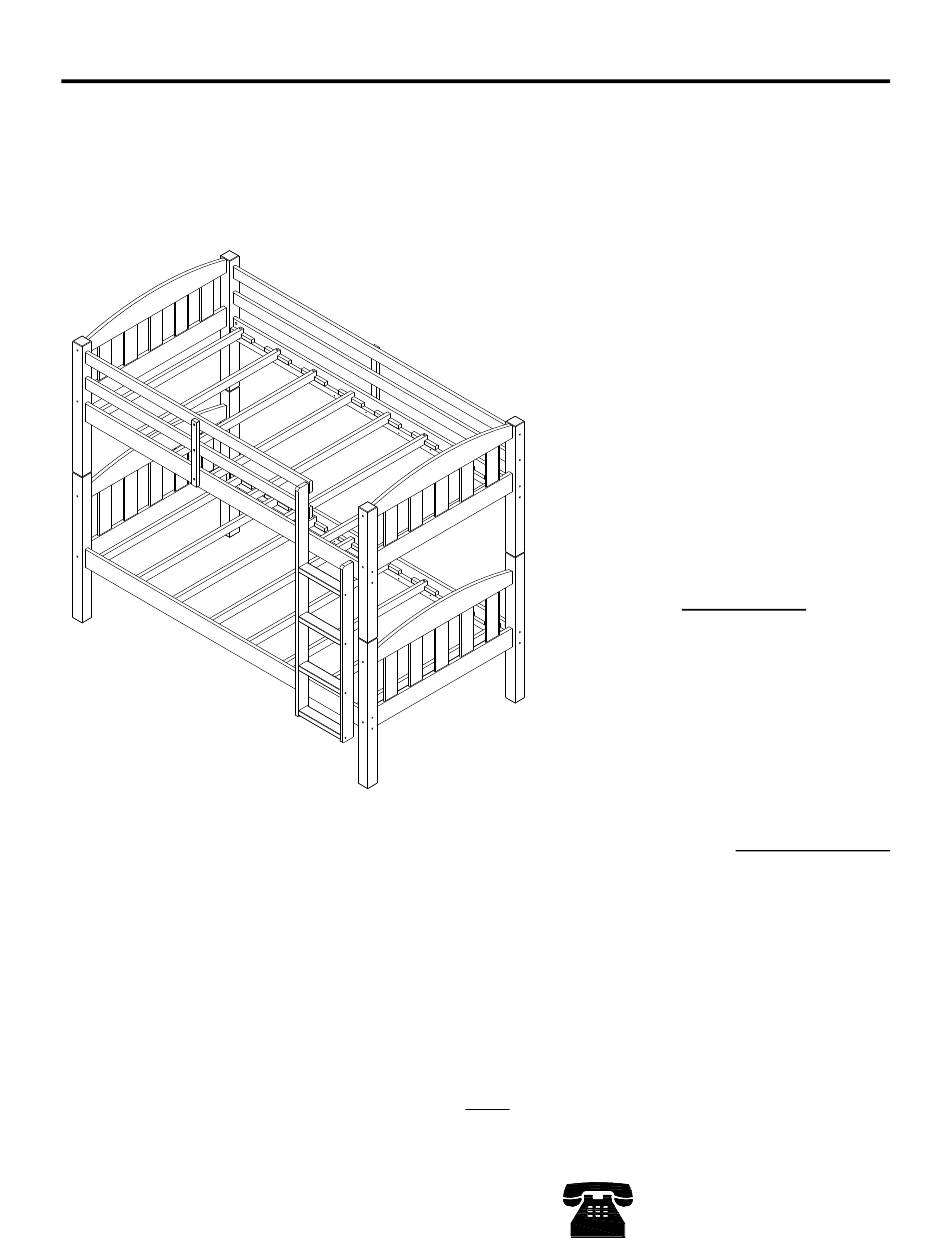

DOREL HOME FURNISHINGS
BUNK BED
DO NOT RETURN PRODUCT TO THE STORE.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
department. We will replace the part FREE of charge.
0 29986 59210 1
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
(TAKEN FROM CARTON)
Date of purchase:
_______ / _______ / _______
Tel # : 1-800-295-1980
Tel # : 1-800-295-1980
E-Mail: das@dorel.com
E-Mail: das@dorel.com
Fax #: 514-353-7819
Fax #: 514-353-7819
Model No.:
WM3797W
UPC CODE:
NOTE:
Lot number:
