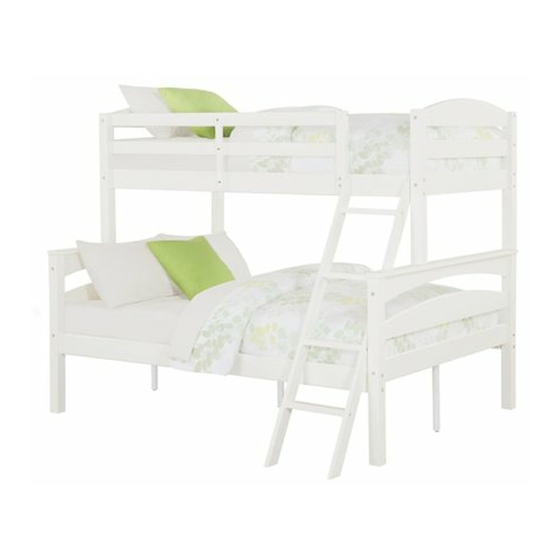

DOREL ASIA
Model No:
DA6940E (ESPRESSO)
DA6940W (WHITE)
DA6940BL (BLUE)
UPC CODE:
0-65857-16788-7 (ESPRESSO)
0-65857-16789-4
(WHITE)
0-65857-17026-9
(BLUE)
NOTE:
THIS INSTRUCTION BOOKLET
IMPORTANT
CONTAINS
SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
______________________________
Date of purchase:
______ / ______ / ______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part
FREE of charge.
Tel #: 1-800-295-1980
E-Mail: das@dorel.com
Fax #: 514-353-7819
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel DA6940E
Summary of Contents for Dorel DA6940E

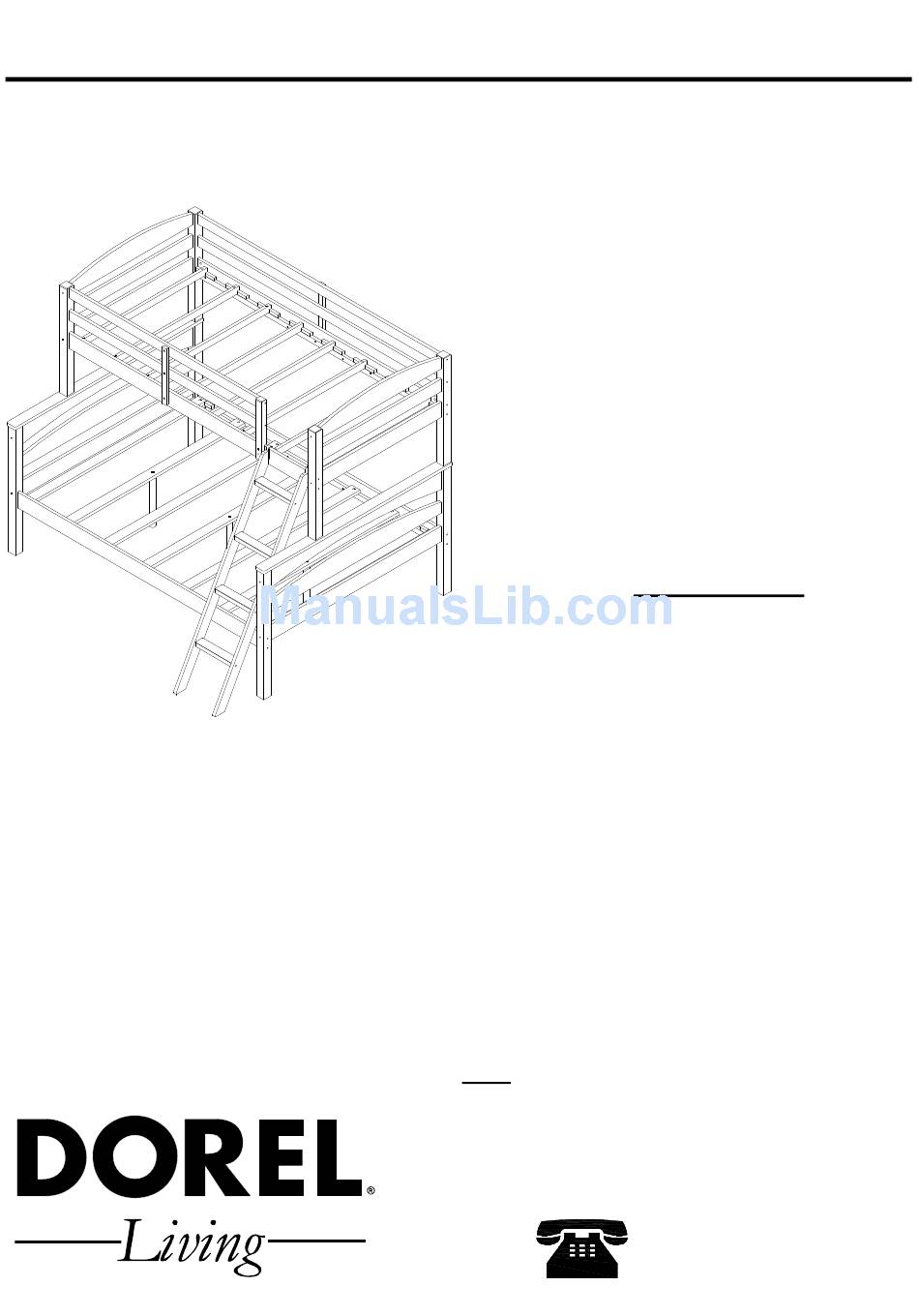

- Page 1 DOREL ASIA Model No: TWIN/FULL BUNK BED DA6940E (ESPRESSO) DA6940W (WHITE) DA6940BL (BLUE) UPC CODE: 0-65857-16788-7 (ESPRESSO) 0-65857-16789-4 (WHITE) 0-65857-17026-9 (BLUE) NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON)
- Page 2 12345 Albert-Hudon Boulevard, Suite 100 Montreal, Quebec Canada, H1G 3L1 E-MAIL: das@dorel.com WARNING STRANGULATION HAZARD - NEVER ATTACH OR HANG ITEMS TO ANY PART OF THE BUNK BED THAT ARE NOT DESIGNED FOR USE WITH THE BED; FOR EXAMPLE, BUT NOT LIMITED TO, HOOKS, BELTS AND JUMP ROPES.
-
Page 3: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY DOREL ASIA warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. - Page 4 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE)
- Page 5 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE)
- Page 6 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE)
- Page 7 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE)
- Page 8 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) STEP 1 One of the headboard top crosses (F) has a label on it, do not use it in this step. Insert wood dowels (9) into the ends of headboard top cross (F), headboard bottom cross (G) and headboard center cross (R).
- Page 9 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) STEP 2 Repeat the previous step to assemble the remaining three sets of headboards. Be sure to pair the bottom posts (D) and (E) for one pair; (E) and (D) for another; and the top posts (C) and (A) for the last pair.
- Page 10 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) STEP 3 Insert barrel nuts (10 ) into bottom side rails (J) as shown. Attach the two headboards with bottom posts (D and E) to bottom side rails (J) using joint connectors (1) and Allen key (12).
- Page 11 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) 14 PCS 3 PCS STEP 4 Attach the support posts (W) to bottom slats (Y) of the bottom bunk with hex socket head bolts (8) as shown. Attach a bottom slat (X) to bottom side rails (J) with flat head wood screws (4). Make sure the slat touches the corner posts (as close to the headboard as possible).
- Page 12 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) STEP 5 Insert wood dowels (9) into each end of the long guardrails (L). Insert barrel nuts (10) into top side rails (H & I). Attach two long guardrails (L) and two top side rails (H and I) to top posts (A and B) & (A and C) as shown using joint connectors (1) &...
- Page 13 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) STEP 6 Insert the dowels (9) into each end of short guardrails (M). Attach the short guardrail post (S) and one guardrail leg (Q) to short guardrails (M) with wood joint connectors (3) and flat head wood...
- Page 14 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) slats: 8 for the upper bunk STEP 7 Attach the assembled short guardrail to top post (A) with wood joint connectors (3), and to top side rail (H) using hex socket head bolts (8) and hex caps (7) as shown. And use Allen key (12) to tighten the hex cap (7).
- Page 15 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) STEP 8 Attach the other guardrail leg (Q) to long guardrails (L) and top side rail (I) with flat head wood screws (6). Secure the guardrail leg (Q) (done in step 6) to top side rail (H) with flat head wood screw (6) as shown.
- Page 16 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) STEP 9 Insert wood dowels (9) into the ends of the ladder steps (P). Attach left ladder end (N) and right ladder end (O) to ladder steps (P) with wood joint connectors (2).
- Page 17 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) STEP 10 Attach the ladder to the top side rail (H) with flat head screw (11) as shown.
- Page 18 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) Instructions for converting the bunk bed into two beds Full bed Single bed CONVERTING THE BUNK BED INTO A FULL BED AND A TWIN BED Remove the ladder and all the guardrails.
- Page 19 TWIN/FULL BUNK BED DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
-
Page 20: Customer Service
MODEL #: DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE) Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
