INSTRUCTION MANUAL
METAL DAYBED
Model No: WM3611
UPC CODE:
0-65857-15764-2
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
LOT NUMBER:
(TAKEN FROM CARTON)
DATE OF PURCHASE:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSISTANCE
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN PRODUCT TO
E-MAIL:DAS@DOREL.COM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel WM3611
Summary of Contents for Dorel WM3611

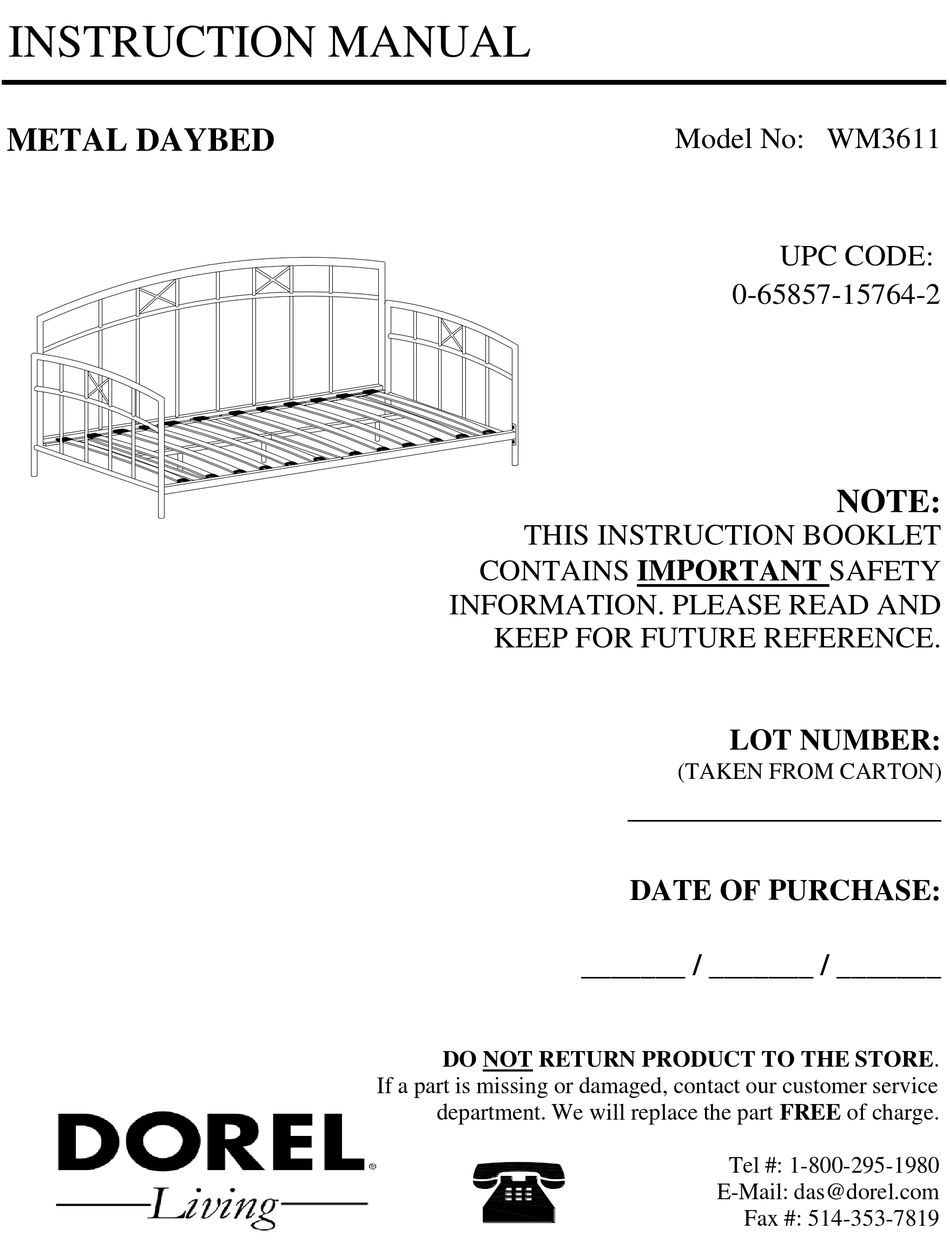

- Page 1 INSTRUCTION MANUAL METAL DAYBED Model No: WM3611 UPC CODE: 0-65857-15764-2 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. LOT NUMBER: (TAKEN FROM CARTON) DATE OF PURCHASE: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 3: Hardware List
METAL DAYBED WM3611 HARDWARE LIST φ1/4"×3/4" φ1/4"×1-3/16" φ1/4"×1-3/4" HEX SOCKET HEAD BOLT HEX SOCKET HEAD BOLT HEX SOCKET HEAD BOLT 4 PCS 9 PCS 4 PCS φ1/4" × 1/2" HEX SOCKET HEAD BOLT ALLEN KEY 8 PCS PARTS LIST HEADBOARD... - Page 4 METAL DAYBED WM3611 STEP 1 Attach left side frame (B) and right side frame (C ) to headboard (A) with hex socket head bolt (3). Use Allen key (5) to tighten bolts. NOTE: Do not fully tighten bolts. Leaving them loose will facilitate assembly in the...
- Page 5 METAL DAYBED WM3611 STEP 2 Attach side rail (D) to left side frame (B) and right side frame (C) with hex socket head bolts (1). Use Allen key (5) to install the bolts. NOTE: Do not fully tighten the bolts. Leaving them loose will facilitate assembly in the...
- Page 6 METAL DAYBED WM3611 STEP 3 Attach support strechers (E & F) to headboard (A) and side rail (D) with hex socket head bolts (2). Use Allen key (5) to tighten bolts. NOTE: Do not fully tighten bolts. Leaving them loose will facilitate assembly in the...
- Page 7 METAL DAYBED WM3611 Hole on support stretcher (G) located near the side frame Hole on support stretcher (G) located near the side frame STEP 4 Attach support stretchers (G) to support stretchers (E & F) with hex socket head bolts (4).
- Page 8 METAL DAYBED WM3611 STEP 5 Attach legs (H) to support stretchers (E & G) with hex socket head bolts (2). Use Allen key (5) to tighten bolts.
- Page 9 METAL DAYBED WM3611 STEP 6 Insert both ends of slats (I) into plastic caps (J). Attach plastic caps (J) to headboard (A) and side rail (D)
- Page 10 METAL DAYBED WM3611 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury . INTENDED MAXIMUM WEIGHT IS 225LBS.
-
Page 11: Customer Service
MODEL #: WM3611 A B B C B D Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
