Dorel WM3669 Manual

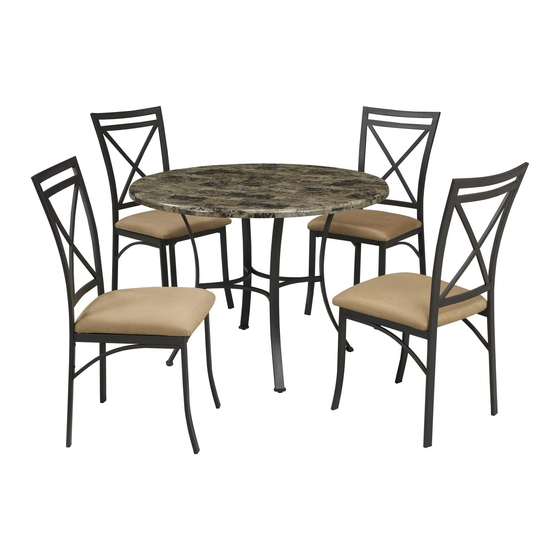

5 piece dining set with faux marble top
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Weight Limit: 73.5 Lb / 33 Kg For Table
250 Lb / 113 Kg For Chair
C.W. - 2021/5/20
2021 Dorel Home Products All Rights Reserved
5 Piece Dining Set With Faux Marble Top
Thank you for purchasing from Dorel!
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
WM3669 (Black Coffee)
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739.
You can also chat with us at www.dhpfurniture.com
Lot Number
B34WM366900-241637-C
(TAKEN FROM CARTON)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM3669 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel WM3669

Summary of Contents for Dorel WM3669

  • Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. C.W. - 2021/5/20 B34WM366900-241637-C 2021 Dorel Home Products All Rights Reserved...

  • Page 2: Limited 1-Year Warranty

    Limited 1 year Warranty Read Before Beginning Assembly Dorel warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product.
  • Page 3 PARTS...

  • Page 4: Parts List

    Table Top Table Legs Table Tube Base 4 PCS 1 PC 1 PC PART NUMBERS WM3669 PART (Black Coffee) LABELS T711140 Each part has unique part number. Please reference the appropriate part number when contacting customer service for replacement parts.

  • Page 5: Hardware List

    HARDWARE LIST 1/4" X 1/2" M5 X 5/8" 1/4" X 1 7/8" Bolt Screw Bolt L-Allen Key 1 PC 40 PCS 16 PCS 8 PCS Hardware Pack Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 6 Step 1 NOTE: Support should be inside Attach the right and left chair legs B & C to the back frame A with bolts NOTE: Do not fully tighten the bolts, Loose bolts will facilitate assembly in the following steps. NOTE : Leg B and C are not interchangeable.
  • Page 7 Step 2 Attach the stretcher D to the chair legs B & C with bolts Tighten all bolts previously installed in steps 1 to 2.
  • Page 8 Step 3 NOTE: The narrow part of Part E must be oriented towards Part A as show below. Attach the seat cushion E to subassembly from previous STEP with screws using a Phillips head screw driver (not included). X 16...
  • Page 9 Step 4 Attach table legs F X 4 to table top H with bolts NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following steps. NOTE:To avoid fraying the surface of table top, please lay the table top H on a piece of carpet or carton board.
  • Page 10 Step 5 Attach table tube base G to table legs F X 4 with bolts Tighten all bolts previously installed in steps 4 to 5. NOTE:To avoid fraying the surface of table top, please lay the table top H on a piece of carpet or carton board.

  • Page 11: Helpful Hints

    CAUTION: This unit is intended for use only with the products and/or maximum Helpful Hints weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
  • Page 12 Informaci n sobre la garant a Lea antes de comenzar a ensamblar Dorel garantiza que este producto est libre de defectos de material y de Llame a nuestro n mero gratuito si necesita asistencia. fabricaci n, comprometi ndose a corregirlos en caso de ser hallados. Esta garant a Trabaje en un rea espaciosa y cerca de donde su producto ser utilizado, es v lida por un a o a partir de la fecha de compra original.
  • Page 13 Tambi n confirme que ha recibido todos los componentes necesarios para el ensamblaje al compararlos con la tabla de piezas indicadas en la secci n en ingl s. N MERO DE PIEZAS WM3669 ETIQUETAS DESCRIPCI N (Caf Negro) DE PIEZAS...
  • Page 14 Instrucciones L mites de peso: 73.5 Lb / 33 Kg para la mesa 250 Lb / 113 Kg para cada silla Paso 1 Consejos tiles Una B & C a A con El soporte debe estar en el interior (ver la secci n en ingl s). Mueva sus muebles nuevos con cuidado, se requiere de dos personas para levantar y trasladar su producto a su nueva ubicaci n.
  • Page 15 Merci d'avoir achet un produit Dorel ! Informations sur la garantie Avant de commencer l'assemblage Dorel garantit que ce produit est exempt de tout vice de mat riaux et de fabrication Si vous avez besoin d'aide, appelez notre service la client le sans frais.
  • Page 16 (illustrations disponibles dans la section en anglais). LISTE DES PI CES WM3669 TIQUETTE DESCRIPTION (Caf Noir) DES PI CES Cadre arri re...

  • Page 17: Conseils Utiles

    Instructions Limite de Poids: 73.5 Lb / 33 Kg pour la table 250 Lb / 113 Kg pour chaque chaise tape 1 Attacher B & C A avec Le support doit tre l'int rieur (voir section en anglais). Conseils utiles Ne serrez pas compl tement les boulons.
