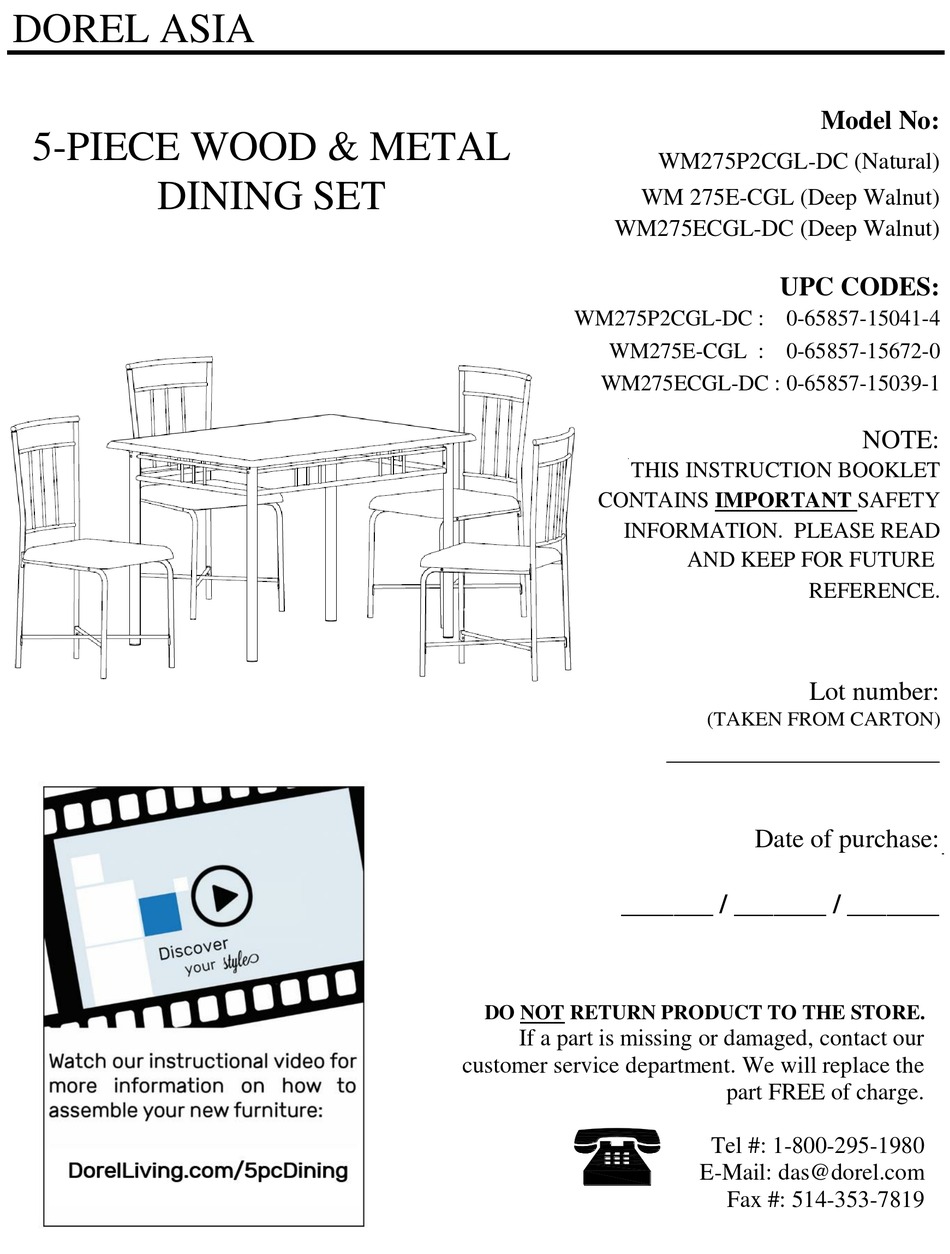

DOREL ASIA
Model No:
5-PIECE WOOD & METAL
WM275P2CGL-DC (Natural)
DINING SET
WM 275E-CGL (Deep Walnut)
WM275ECGL-DC (Deep Walnut)
UPC CODES:
WM275P2CGL-DC : 0-65857-15041-4
WM275E-CGL : 0-65857-15672-0
WM275ECGL-DC : 0-65857-15039-1
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ
AND KEEP FOR FUTURE
REFERENCE.
Lot number:
(TAKEN FROM CARTON)
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our
customer service department. We will replace the
part FREE of charge.
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSISTANCE
DorelLiving.com/5pcDining
1-800-295-1980
E-Mail: das@dorel.com
DO NOT RETURN PRODUC
Fax #: 514-353-7819
E-MAIL:DAS@DOREL.COM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel WM275P2CGL-DC
Summary of Contents for Dorel WM275P2CGL-DC
- Page 1 Model No: 5-PIECE WOOD & METAL WM275P2CGL-DC (Natural) DINING SET WM 275E-CGL (Deep Walnut) WM275ECGL-DC (Deep Walnut) UPC CODES: WM275P2CGL-DC : 0-65857-15041-4 WM275E-CGL : 0-65857-15672-0 WM275ECGL-DC : 0-65857-15039-1 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
- Page 3 5-PIECE WOOD & METAL DINING SET WM275P2CGL-DC / WM275E-CGL / WM275ECGL-DC HARDWARE LIST Φ1/4"×1/2" Φ5/32"×1-1/8" Φ1/4"×1-1/4" HEX SOCKET HEAD BOLT PHILLIPS COUNTERSINK HEX SOCKET HEAD BOLT 36 PCS SCREW -16 PCS 8PCS Φ1/4"×2-1/8" Φ1/8"×5/8" HEX SOCKET HEAD BOLT PHILLIPS ROUND...
- Page 4 5-PIECE WOOD & METAL DINING SET WM275P2CGL-DC / WM275E-CGL / WM275ECGL-DC PARTS LIST LEFT LEG RIGHT LEG BACK FRAME 4 PCS 4 PCS 4 PCS TUBE BASE SEAT CUSHION SEAT SUPPORT 4 PCS 4 PCS 4 PCS APRON TABLE TOP...
- Page 5 5-PIECE WOOD & METAL DINING SET WM275P2CGL-DC / WM275E-CGL / WM275ECGL-DC STEP 1 Attach table legs (G) to aprons (H) with hex socket head bolts (6) and (3) as shown. Use Allen key (5) to tighten bolts.
- Page 6 5-PIECE WOOD & METAL DINING SET WM275P2CGL-DC / WM275E-CGL / WM275ECGL-DC Use these round markings to align the table frame. The screws are self-drilling and will make their own holes. STEP 2 Place the tabletop (I) upside down on a flat, smooth surface. Place previously assembled table frame upside down onto tabletop and center the frame onto it.
- Page 7 5-PIECE WOOD & METAL DINING SET WM275P2CGL-DC / WM275E-CGL / WM275ECGL-DC STEP 3 Attach left leg (B) and right leg (C) to the back frame (A) with hex socket head bolts (3). Use Allen key (5) to install bolts. NOTE: Do not fully tighten bolts. Loose bolts will facilitate assembly in the...
- Page 8 5-PIECE WOOD & METAL DINING SET WM275P2CGL-DC / WM275E-CGL / WM275ECGL-DC STEP 4 Attach seat support (D) to legs (B) and (C) with hex socket head bolts (1). Use Allen key (5) to install bolts. NOTE: Do not fully tighten bolts. Loose bolts will facilitate assembly in the...
- Page 9 5-PIECE WOOD & METAL DINING SET WM275P2CGL-DC / WM275E-CGL / WM275ECGL-DC STEP 5 Attach tube base (E) to chair frame with hex socket head bolts (3). Use Allen key (5) to install bolts. NOTE: The mounting brackets on tube base (E) have to be positioned in a way that they follow the angle with the chair legs.
- Page 10 5-PIECE WOOD & METAL DINING SET WM275P2CGL-DC / WM275E-CGL / WM275ECGL-DC STEP 6 Place seat cushion (F) and chair frame upside down on a smooth, flat surface. Attach seat cushion (F) to chair frame with Phillips countersink head screws (2).
- Page 11 5-PIECE WOOD & METAL DINING SET WM275P2-CGL / WM275P2CGL-DC /WM275E-CGL CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 12 MODEL #: WM275P2CGL-DC / WM275E-CGL / WM275ECGL-DC Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
