ASSEMBLY MANUAL
Model No:
2-IN-1 CRIB
DA4162ND
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Contact Customer Service
with any questions.
NEED HELP!
1-800-295-1980
CALL US FOR ASSISTANCE
das@dorel.com
1-800-295-1980
DO NOT RETURN PRODUCT
E-MAIL:DAS@DOREL.COM
Advertisement
Related Manuals for Dorel DA4162ND
Summary of Contents for Dorel DA4162ND

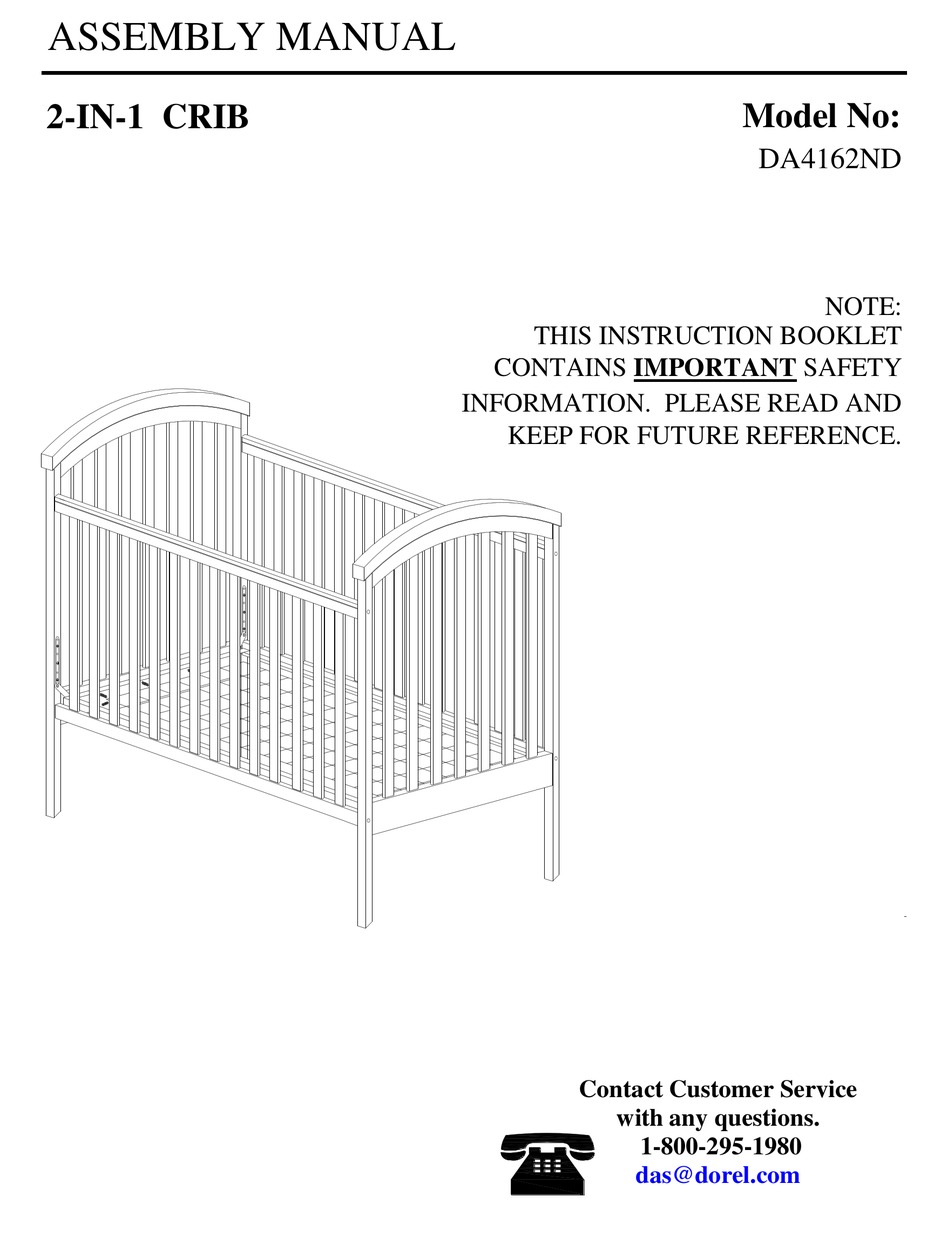

- Page 1 ASSEMBLY MANUAL Model No: 2-IN-1 CRIB DA4162ND NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Contact Customer Service with any questions. NEED HELP! 1-800-295-1980 CALL US FOR ASSISTANCE das@dorel.com 1-800-295-1980 DO NOT RETURN PRODUCT...
- Page 2 Customer Service Department No. 413 12345 Albert-Hudon Boulevard, Suite 100 Montreal, Quebec Canada H1G 3L1 E-MAIL: das@dorel.com WARNING Failure to follow these warnings and assembly instructions could result in serious injury or death. Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE.
-
Page 3: Care And Cleaning
NOTES Ensure all parts and components are present before beginning assembly. Assemble on soft, smooth surface to prevent damage to product finish. Phillips head screw driver is not included. DO NOT use power tools. CAUTION: Adult assembly required. Assembly will require two people. WARNING: Should this product become damaged, and/or components are broken or missing, DO NOT USE. -
Page 4: Hardware List
2-IN-1CRIB DA4162ND HARDWARE LIST 1/4" x 2-1/2" BARREL NUT HEX SOCKET HEAD BOLT 8 PCS 10 PCS 6 mm x 3/4" BARREL NUT HEX SOCKET HEAD BOLT 2 PCS 16 PCS GATE PIN ALLEN KEY 2 PCS 1 PC SPRING WASHER - 26 PCS... -
Page 5: Parts List
2-IN-1CRIB DA4162ND PARTS LIST SIDE FRAME STATIONARY SIDE 2 PCS 2 PCS GUARD RAIL MATTRESS SUPPORT 1 PC 1 PC... - Page 6 2-IN-1CRIB DA4162ND NOTE: PLEASE MAKE SURE THE TEETHING RAILS ON THE STATIONARY SIDE (B) ARE FACING UP. SIDE FRAME (A) STATIONARY SIDE (B) CRIB ASSEMBLY INSTRUCTION NOTE: When inserting bolts, turn clockwise until tighten. Then loosen 1/2"-3/4" of a turn. After crib is completely assembled, return to each bolt and tighten.
- Page 7 HEX SOCKET HEAD BOLT RUBBER STOPPER 2 PCS 6 PCS 2-IN-1CRIB DA4162ND HARDWARE LIST 3/16" x 3/8" 6 mm x 3/4" STEP 1 HEX SOCKET HEAD BOLT BOLT 16 PCS 2 PCS Attach left and right side frames (A) to stationary side (B) with hex socket 1/4"...
- Page 8 2-IN-1CRIB DA4162ND STEP 2: Attach mattress support (D) to the 4 corner posts with bolts (2) and spring washers (7). Use Allen Key (3) to tighten bolts. Refer to details 1 and 2 for direction on how to properly attach the mattress support.
- Page 9 HEX SOCKET HEAD BOLT BOLT 16 PCS 2 PCS DA4162ND STEP 3 Attach left and right side frames (A) to stationary side (B) with hex socket 1/4" x 2-1/2" head bolts (1), spring washers (7) and barrel nut (4) . Use Allen key (3) to tighten hex socket head bolts (1).
- Page 10 2-IN-1CRIB 1/4" x 2-1/2" DA4162ND HEX SOCKET HEAD BOLT 6 PCS TODDLER BED & DAY BED ASSEMBLY INSTRUCTIONS 6 mm x 3/4" HEX SOCKET HEAD BOLT 16 PCS ALLEN KEY 1 PC DIAGRAM A TODDLER BED & DAY BED ASSEMBLY INSTRUCTIONS: STARTING FROM CRIB STEP 1 Detach the stationary side (B) with 2 side frame (A) by Allen key (3).
- Page 11 2-IN-1CRIB DA4162ND Stop using crib when CAUTION: ANY MATTRESS USED child begins to climb out IN THIS CRIB MUST BE AT LEAST or reaches the height of 27-1/4 INCHES BY 51-5/8 INCHES 35 in. (89 cm). (69CM BY 131CM) WITH A...
