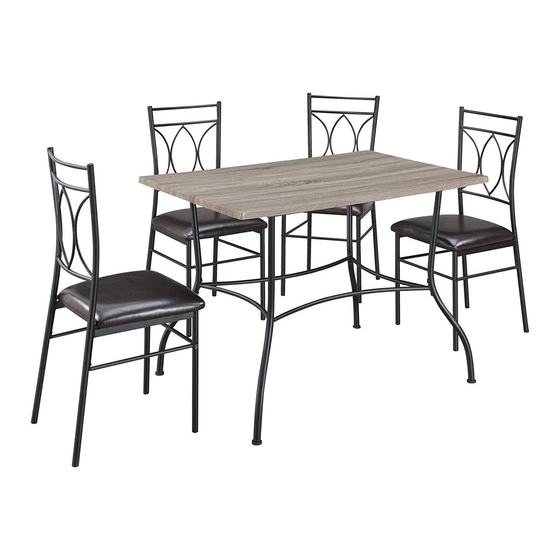

5-pc wood & metal dining set

Advertisement

Quick Links

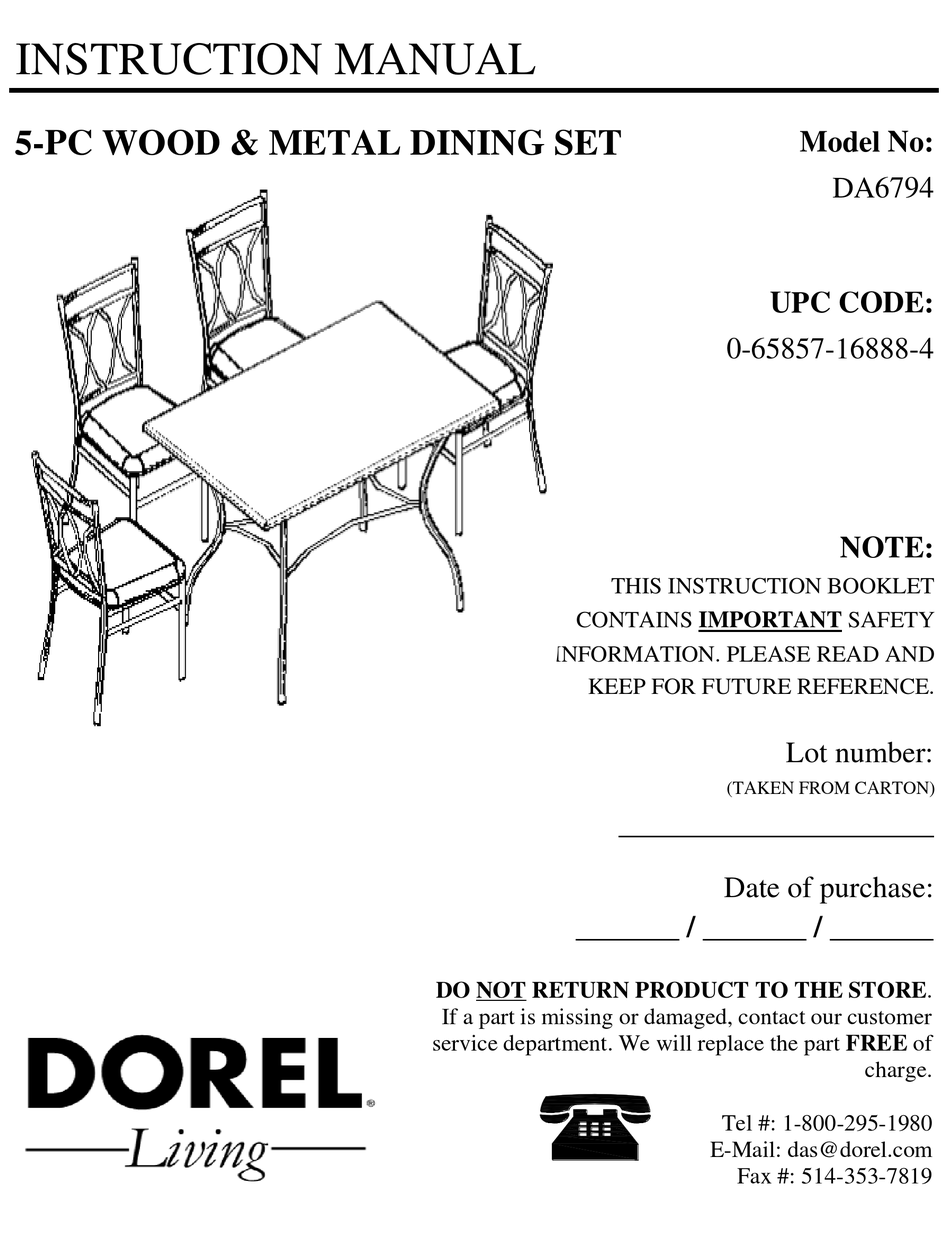

INSTRUCTION MANUAL
5-PC WOOD & METAL DINING SET
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
Model No:
DA6794
UPC CODE:
0-65857-16888-4
NOTE:
Lot number:
(TAKEN FROM CARTON)
Date of purchase:
charge.
NEED HELP!
CALL US FOR ASSIS
Tel #: 1-800-295-1980
1-800-295-1980
E-Mail: das@dorel.com
DO NOT RETURN P
Fax #: 514-353-7819
E-MAIL:DAS@DOR

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA6794 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dorel DA6794

  • Page 1 INSTRUCTION MANUAL 5-PC WOOD & METAL DINING SET Model No: DA6794 UPC CODE: 0-65857-16888-4 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
  • Page 2 Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
  • Page 3: Hardware List

    5-PC WOOD & METAL DINING SET DA6794 HARDWARE LIST Ø1/4" X 1/2" Ø1/4" X 1-3/8" Ø3/16" X 5/8" BOLT BOLT WOOD SCREW 48 PCS 8 PCS 16 PCS ALLEN KEY 1 PC...
  • Page 4: Parts List

    5-PC WOOD & METAL DINING SET DA6794 PARTS LIST BACK FRAME RIGHT CHAIR LEG LEFT CHAIR LEG 4 PCS 4 PCS 4 PCS CHAIR FRONT RAIL CHAIR MIDDLE RAIL SEAT CUSHION 4 PCS 4 PCS 4 PCS TABLE TOP TABLE STRETCHER...
  • Page 5 5-PC WOOD & METAL DINING SET DA6794 STEP 1 Attach the right and left chair legs (B & C) to back frame (A) with bolts (1) and Allen key (4). Attach the chair middle rail (E) to chair legs (B & C) with bolts (1) and Allen key (4).
  • Page 6 5-PC WOOD & METAL DINING SET DA6794 STEP 2 Attach the chair front rail (D) to the chair legs (B & C) with bolts (2). Ensure that the chair front rail (D) goes smoothly into the two chair legs before tightening the bolts (2).
  • Page 7 5-PC WOOD & METAL DINING SET DA6794 STEP 3 Attach the seat cushion (F) to the chair frame with wood screws (3) as shown. Use a Phillips head screw driver (not included) to tighten the screws. NOTE- Seat cushion (F) does not have pre-drilled holes. Wood screws (3) will make their own holes in seat cushion (F).
  • Page 8 5-PC WOOD & METAL DINING SET DA6794 STEP 4 Attach the metal legs (I) to the table top (G) with bolts (1). Leave bolt (1) loose. Attach the stretcher (H) to the table legs (I) with bolts (1). Use Allen key (4) to tighten all bolts installed in this step.
  • Page 9 5-PC WOOD & METAL DINING SET DA6794 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
  • Page 10 MODEL #: DA6794 Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
