Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with
quality, convenience and style in mind. We trust it will provide you with many years of exceptional
comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece
by taking a few minutes to go through this booklet. It contains important information on our
warranty and care tips to keep your furniture looking as good as new.
Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to Friday
8am to 5pm (EST) to answer any question you may have. For faster service, always have the
model number ready when calling our toll free number 1-800-295-1980 or emailing us at
das@dorel.com .
For more great furniture ideas, check out our website at
You can also keep up to date on all the latest trends by liking our
Date of Purchase: _____ / _____ / _____
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our
customer service department. We will replace the part FREE of charge.
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Model Number:
DL7519E
DL7519W
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

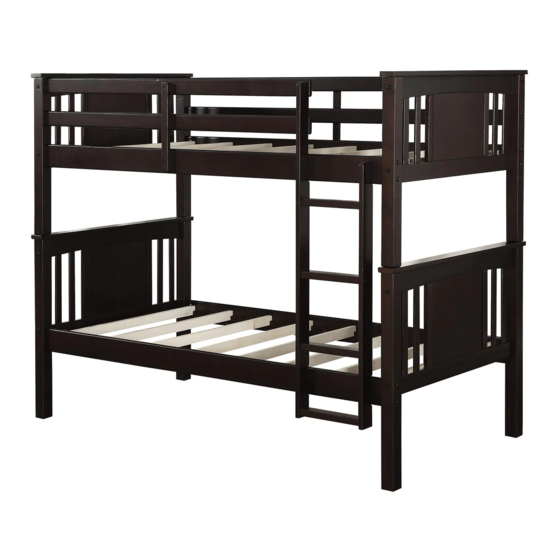

TWIN BUNK BED
UPC Code:
0-65857-17348-2
0-65857-17349-9
www.dorelliving.com
Lot Number:
(taken from carton)
Color:
Espresso
White
Facebook
page.
Advertisement
Table of Contents
Related Manuals for Dorel DL7519E
Summary of Contents for Dorel DL7519E
- Page 1 Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to Friday 8am to 5pm (EST) to answer any question you may have. For faster service, always have the model number ready when calling our toll free number 1-800-295-1980 or emailing us at das@dorel.com .
- Page 2 12345 Albert-Hudon Boulevard, Suite 100 Montreal, Quebec Canada, H1G 3L1 E-MAIL: das@dorel.com WARNING STRANGULATION HAZARD - NEVER ATTACH OR HANG ITEMS TO ANY PART OF THE BUNK BED THAT ARE NOT DESIGNED FOR USE WITH THE BED; FOR EXAMPLE, BUT NOT LIMITED TO HOOKS, BELTS AND JUMP ROPES.
- Page 3 Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
- Page 4 TWIN BUNK BED DL7519E / DL7519W HARDWARE LIST ∅1/4" x 100mm ∅6.5mm x 48mm JOINT CONNECTOR (4mm HEX HEAD) WOOD JOINT CONNECTOR (4mm HEX HEAD) 16 PCS 14 PCS ∅6.5mm x ∅4mm x 35mm WOOD JOINT CONNECTOR (4mm HEX HEAD)
- Page 5 TWIN BUNK BED DL7519E / DL7519W PARTS LIST TOP POST TOP POST TOP POST 2 PCS 1 PC 1 PC BOTTOM POST BOTTOM POST TOP HEADBOARD TOP 2 PCS 2 PCS CROSS -2 PCS...
- Page 6 TWIN BUNK BED DL7519E / DL7519W PARTS LIST HEADBOARD BOTTOM CROSS TOP SIDE RAIL (WITH 3 HOLES) BOTTOM SIDE RAIL (WITH 2 HOLES) 4 PCS 1 PC 1 PC TOP SIDE RAIL (WITH 1 HOLE) SLAT BOTTOM SIDE RAIL (WITH NO HOLE)
- Page 7 TWIN BUNK BED DL7519E / DL7519W PARTS LIST TOP HEADBOARD SLAT SLAT BOTTOM HEADBOARD SLAT 8 PCS 4 PCS 8 PCS TOP HEADBOARD SLAT TOP HEADBOARD PANEL BOTTOM HEADBOARD SLAT 4 PCS 2 PCS 4 PCS BOTTOM HEADBOARD PANEL BOTTOM HEADBOARD TOP...
- Page 8 TWIN BUNK BED DL7519E / DL7519W STEP 1 One of the headboard top crosses (F) has a label on it. Do not use it in this step. Insert stoppers (10) into headboard bottom cross (G) as shown above. Insert top headboard slats (S & V) and top headboard panel (W) to top headboard bottom cross (G) and push down until firmly in place.
- Page 9 TWIN BUNK BED DL7519E / DL7519W STEP 2 Repeat the previous step to assemble the remaining three sets of headboards. Be sure to pair the bottom posts (D) and (E) for one pair; (E) and (D) for another; and the top posts (C) and (A) for the last pair.
- Page 10 TWIN BUNK BED DL7519E / DL7519W Holes Holes STEP 3 Attach the two headboards with bottom posts (D and E) to bottom side rails (I and K) using joint connectors (1) and barrel nuts (8) as shown. Use Allen key (9) to tighten to joint connectors.
- Page 11 TWIN BUNK BED DL7519E / DL7519W STEP 4 Insert wood dowels (7) into each end of the long guardrails (M). Attach two long guardrails (M) and two top side rails (H and J) to top posts (A and B) & (A and C) as shown.
- Page 12 TWIN BUNK BED DL7519E / DL7519W STEP 5 Insert two slats (T) onto the center slots of the bottom side rails (I and K) of the bottom bunk as shown. NOTE: Once inserted, there should be three empty spaces left on each side.
- Page 13 TWIN BUNK BED DL7519E / DL7519W STEP 6 Insert slats (L) into the remaining holes on the bottom side rails (I and K) on the lower bunk. Secure slats (L) to the bottom side rails (I and K) with flat head wood screws (4), using a phillips head screw driver (not included).
- Page 14 TWIN BUNK BED DL7519E / DL7519W STEP 7 Insert wood dowels (7) into the holes in the ends of short guardrails (N). Attach short guardrails (N) to top post (A) with wood joint connectors (3). Attach the guardrail leg (R) to the short guardrails (N) and top side rail (H) with flat head wood screws (5).
- Page 15 TWIN BUNK BED DL7519E / DL7519W 8 PCS 8 PCS STEP 8 To assemble the ladder, insert wood dowels (7) into the end of the ladder steps (Q). Attach long ladder end (O) and short ladder end (P) to ladder steps (Q) with wood joint connectors (2), using...
- Page 16 TWIN BUNK BED DL7519E / DL7519W Slats are not shown in illustration for clarity 6PCS STEP 9 Attach the ladder to the short guardrails (N), the top side rail (H) and bottom side rail (I) with wood joint connectors (2) as shown.
- Page 17 Instructions for Converting the bunk bed into two single beds DL7519E / DL7519W Remove the ladder and all the guardrails. With the help of another person, remove the top bunk from the lower bunk. Disassemble the side rails from all headboards (top and lower bunks).
- Page 18 TWIN BUNK BED DL7519E / DL7519W CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 19 MODEL #: DL7519E / DL7519W Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
