Dorel DA6921 Instruction Manual

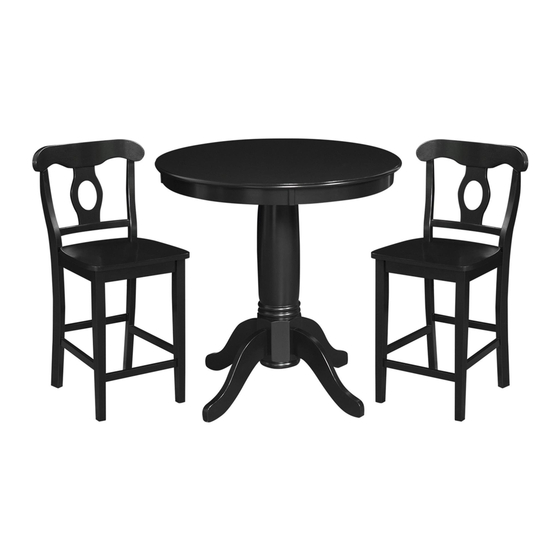

3-pc counter height dining set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

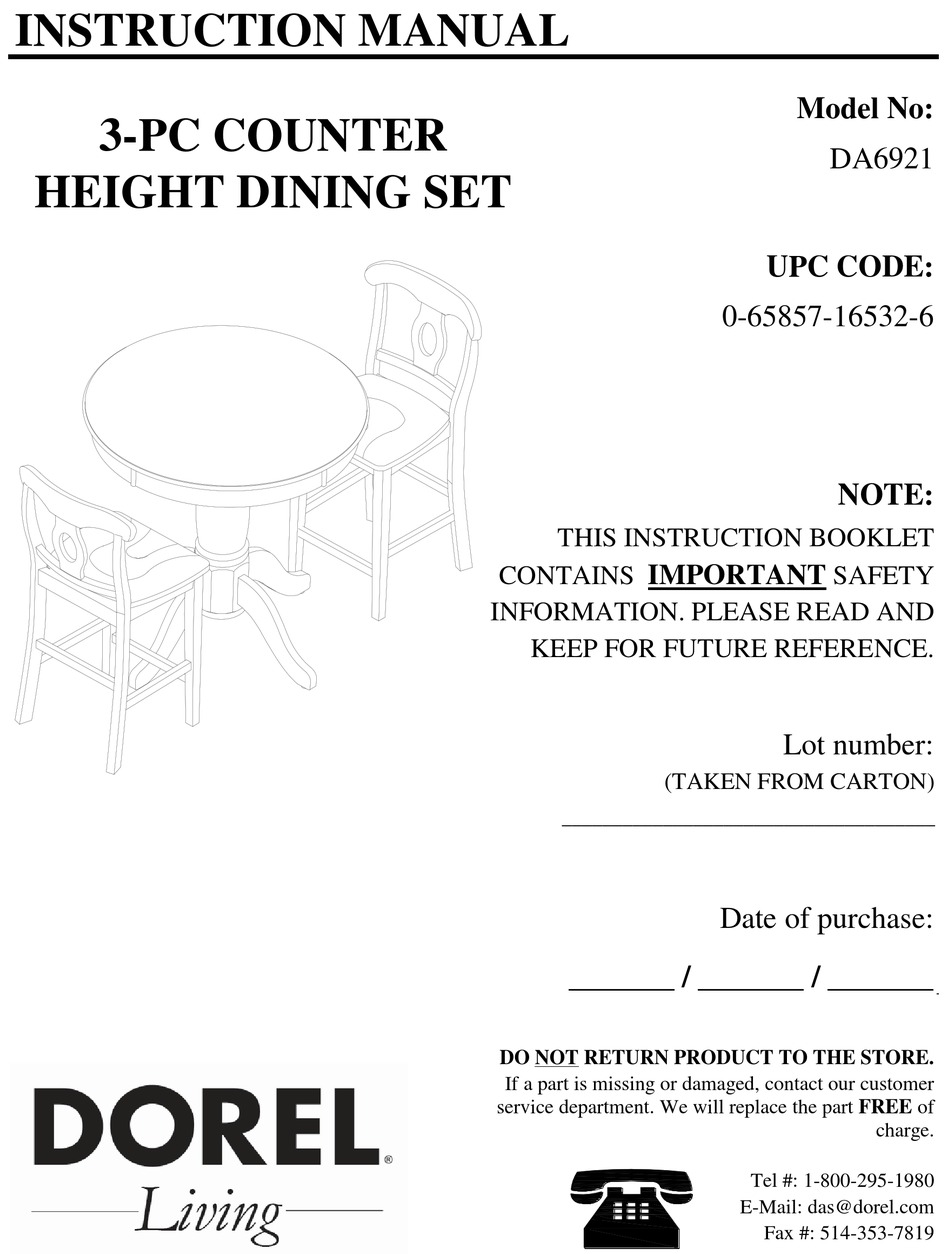

INSTRUCTION MANUAL
Model No:
3-PC COUNTER
DA6921
HEIGHT DINING SET
UPC CODE:
0-65857-16532-6
NOTE:
THIS INSTRUCTION BOOKLET
IMPORTANT
CONTAINS
SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR A
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETUR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA6921 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel DA6921

Summary of Contents for Dorel DA6921

  • Page 1 INSTRUCTION MANUAL Model No: 3-PC COUNTER DA6921 HEIGHT DINING SET UPC CODE: 0-65857-16532-6 NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.

  • Page 2: Care And Cleaning

    Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.

  • Page 3: Hardware List

    DA6921 3-PC COUNTER HEIGHT DINING SET HARDWARE LIST Ø5/16" x 12MM Ø5/16" x 12MM SPRING WASHER 8 PCS 38 PCS Ø5/16" x 19MM Ø5/16" x 1-1/4" FLAT WASHER BOLT 38 PCS 4 PCS Ø1/4" x 2-1/4" BOLT ALLEN WRENCH 8 PCS 1 PC Ø1/4"...

  • Page 4: Parts List

    DA6921 3-PC COUNTER HEIGHT DINING SET PARTS LIST TABLE TOP TABLE BASE PANEL CENTER POST 1 PC 1 PC 1 PC CHAIR BACK FRAME LEFT FRONT LEG 4 PCS 2 PCS 2 PCS RIGHT FRONT LEG LEFT SIDE STRETCHER RIGHT SIDE STRETCHER...
  • Page 5 DA6921 3-PC COUNTER HEIGHT DINING SET STEP 1 Place center post (C) upside down on a clean smooth surface. Remove the plastic plugs from the legs (D). Attach legs (D) to the center post (C) using nuts (1), spring washers (2) and flat washers (3).
  • Page 6 DA6921 3-PC COUNTER HEIGHT DINING SET STEP 2 Turn the assembled pedestal upright. Attach the table base panel (B) to the center post (C) with spring washers (2), flat washers (3) and bolts (4) as shown. Fully tighten the bolts (4) using Allen key (7).
  • Page 7 DA6921 3-PC COUNTER HEIGHT DINING SET STEP 3 Place the table top (A) upside down on a clean, smooth surface. Attach the table pedestal (assembled in the previous step) to the table top (A) using spring washers (2), flat washers (3) and bolts (9) as shown.
  • Page 8 DA6921 3-PC COUNTER HEIGHT DINING SET STEP 4 Turn the table upright. Adjust the levelers underneath each leg to ensure that the table level with the floor both vertically and horizontally. You've finished assembling the dining table. STEP 5 STEP 4...
  • Page 9 DA6921 3-PC COUNTER HEIGHT DINING SET STEP 5 Attach the seat frame (K) to the chair back frame (E) using bolts (8), spring washers (2) and flat washers (3) through the corners of the seat frame (K). Secure the seat frame (K) to the chair back frame (E) using bolts (9), spring washers (2) and flat washers (3) through the center of the seat frame (K).
  • Page 10 DA6921 3-PC COUNTER HEIGHT DINING SET STEP 6 Attach the left front leg (F) and the right front leg (G) to the seat frame (K) with bolts (5), spring washers (2) and flat washers (3). Use Allen key (7) to install the bolts (5). Do not fully tighten the bolts.
  • Page 11 DA6921 3-PC COUNTER HEIGHT DINING SET STEP 7 Attach the seat board (L) to the chair frame with wood screws (10) using a Phillips head screw driver (not included). To facilitate the attachment of the seat board (L) to the assembled seat frame, place seat board...
  • Page 12 DA6921 3-PC COUNTER HEIGHT DINING SET STEP 8 Turn the chair upright. Repeat steps 5-7 to assemble the remaining chair. STEP 5 STEP 4 STEP 3 STEP 6 STEP 7 STEP 10 STEP 8 STEP 11 STEP 9...
  • Page 13 DA6921 3-PC COUNTER HEIGHT DINING SET CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.

  • Page 14: Customer Service

    MODEL #: DA6921 Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
