- Page 1 Installation and Operation Manual Thermo Scientific General Purpose, Flammable Storage, and Explosion Proof Freezers...
- Page 2 © 2016 Thermo Fisher Scientific. All rights reserved...
- Page 3 General Purpose, Flammable Material Storage Explosion Proof Freezers Explosion-Proof Flammable Material Storage General Purpose 05LFEETSA 05EFEETSA 05FFEETSA 02LREETSA...
-
Page 4: Table Of Contents
Table of Contents Safety Information..............3 Alert Signals ................3 Intended Use Statement............5 Explosion - Proof Refrigerators and Freezers ......6 Overview ...................6 Model 05EFEETSA ..............7 Flammable Materials Storage Refrigerators and Freezers..................8 Overview ...................8 Model 05FFEETSA..............9 General - Purpose Storage Refrigerators and Freezers ..10 Overview .................10... -
Page 5: Safety Information
Safety Information Your satisfaction and safety are important to Thermo Scientific and a complete understanding of this unit is necessary to attain these objectives. As the ultimate user of this apparatus, it is your responsibility to understand its proper function and operational characteristics. - Page 6 Safety Information DANGER RISK OF CHILD ENTRAPMENT Before you throw away your old refrigerator or freezer: • Take off doors • Leave the shelves in the place so that children may not easily climb inside. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
-
Page 7: Intended Use Statement
Intended Use Statement The Refrigerators/Freezers described in this manual are for professional use only. These products are intended for use in research for the storage of samples or inventory in the following temperature ranges: General Purpose Freezers: -12°C to -24°C General Purpose Refrigerators: 1°C to 8°C Warning... -
Page 8: Explosion-Proof Refrigerators And Freezers
It is the end user's responsibility to meet these requirements. Thermo Scientific cannot assist with the selection of devices, recommend, approve or design any device or monitoring circuit. -
Page 9: Model 05Efeetsa

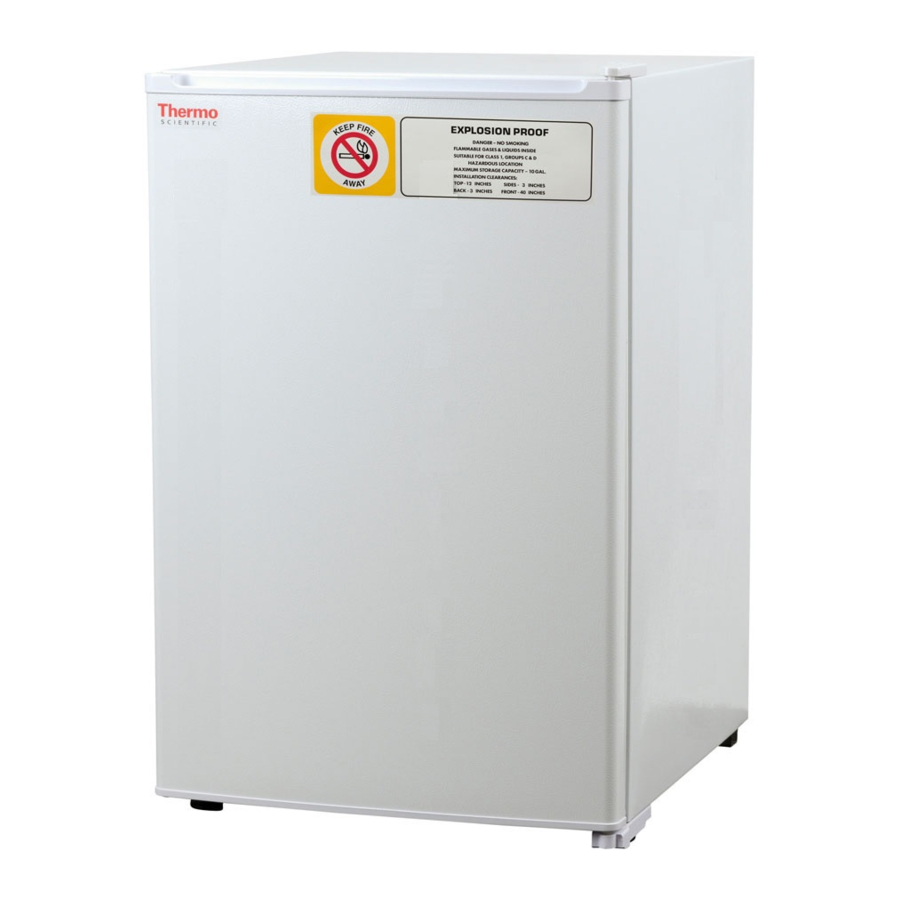

XPLOSION ROOF NITS MODEL 05EFEETSA 21.3” Wide, Features: • 5.0 cubic ft. under-counter freezer • Adjustable Mechanical thermostat • UL Listed • Magnetic gasket • Hermetically-sealed compressor • Manual defrost • White color • 3 Wired shelves and 3 door shelves Freezer Chamber Dimensions Total Vol. -
Page 10: Flammable Materials Storage Refrigerators And Freezers
It is the end user's responsibility to meet these requirements. Thermo Scientific cannot assist with the selection of devices, recommend, approve or design any device or monitoring circuit. -
Page 11: Model 05Ffeetsa
LAMMABLE ATERIALS TORAGE NITS MODEL 05FFEETSA 21.3” Wide, Features: • 5.0 cubic ft. under-counter freezer • Adjustable Mechanical thermostat • UL Listed • Magnetic gasket • Hermetically-sealed compressor • Manual defrost • White color • 3 Wired shelves and 3 door shelves Freezer Chamber Dimensions Total Vol. -
Page 12: General - Purpose Storage Refrigerators And Freezers
General-Purpose Laboratory Refrigerators and Freezers Overview These are general-purpose units available in all refrigerators, all freezers and combination refrigerator/ freezer models. These units are intended for basic laboratory use only. Storage of high-value, life science materials or clinical biological materials may require alarm, monitoring, back-up and temperature performance features. -
Page 13: Model 05Lfeetsa
ENERAL URPOSE ABORATORY NITS MODEL 05LFEETSA 21.3” Wide, Features: • 5.0 cubic ft. under-counter freezer • Adjustable Mechanical thermostat • UL Listed • Magnetic gasket • Hermetically-sealed compressor • Manual defrost • White color • 3 Wired shelves and 3 door shelves Freezer Chamber Dimensions Total Vol. -
Page 14: Model 02Lreetsa
ENERAL URPOSE ABORATORY UNITS MODEL 02LREETSA 18.63” Wide, Cube Size Refrigerator Reversible Door Swing Features: • Adjustable thermostat • Manual defrost • Front-mounted lock • 1 interior shelf • 100% CFC free • Cold wall design Total Vol. Refrigerator Chamber Dimensions Exterior Dimensions Model Cu. -
Page 15: Unpacking And Installation
Allow at least 1.25" above the top of the unit. For 05EFEETSA, 05FFEETSA, 05LFEETSA models: Allow 1" of space on the sides. Allow at least 4" above the top of the unit and the same amount of space between the... -
Page 16: Electrical
NSTALLATION Electrical Units must be connected to a grounded outlet matching the nameplate and/or the information furnished in this manual. If you are not sure about the outlet, you should contact a qualified electrician for assistance. Caution DO NOT REMOVE, under any The unit should always be connected to its own individual outlet. -
Page 17: How To Seal Junction Box Conduit With Fiber And Sealing Compound To Help Protect Against Explosions (Explosion-Proof Units Only)
NSTALLATION How to Seal Junction Box Conduit with Fiber and Sealing Compound to Help Protect Against Explosions (Explosion - Proof Units Only): The purpose of the procedure that follows is to build fiber rope dams on the top and bottom hubs of the vertical conduit. The fiber rope da m ns w ill surround con duit wiri ng t hat is hous ed inside the vertical condu it. - Page 18 NSTALLATION Figure 2: Conduit, Cutaway • Insert fiber rope material down into vertical conduit opening. Pressing down firmly, work the material into the top hub and the bottom hub and—most importantly—being sure the material COMPLETELY SURROUNDS THE WIRING, from the top to the bottom, completely blocking this end of the vertical conduit. •...
- Page 19 NSTALLATION • Pour sealing compound down in between the two fiber rope dams filling the remaining space. Pour slowly, being careful not to trap air bubbles. Immediately wipe off any spilled sealing compound. • Screw conduit domed-cover back onto conduit opening. NOTE: INITIAL SETUP OF SEALING COMPOUND WILL OCCUR IN APPROXIMATELY 30 MINUTES HOWEVER, THE SEALING COMPOUND REQUIRES A MINIMUM OF 8 HOURS ABOVE 32ºF TO DEVELOP SUFFICIENT STRENGTH TO WITHSTAND EXPLOSIONS.
-
Page 20: Operation
Operation Environmental Operating Conditions POLLUTION DEGREE*: INSTALLATION CATEGORY*: 2000 Meters MSL (Mean Sea Level) ALTITUDE: HUMIDITY: 80% maximum, non-condensing ELECTRICAL SUPPLY: 115V 60Hz AC VOLTAGE TOLERANCE: ±10% of normal rated line AMBIENT TEMPERATURE RANGE: 16ºC to 32ºC PRODUCT USAGE: This product is intended for use indoors only *Refer to IEC 664-1 Temperature Control The freezer temerature can be adjusted by the... -
Page 21: Manual Defrost Procedure
PERATION Manual Defrost Procedure Caution sharp instrument, For the most efficient operation and minimum energy scraper blade remove consumption, defrost the freezer/refrigerator when the frost on the refrigerator and frost surfaces freezer/refrigerator walls is excessive or 1/4 inch thick. very danger because real... -
Page 22: How To Save Energy
PERATION How to Save Energy • Be sure to follow location suggestions as mentioned in the previous INSTALLATION section. • Wipe moisture from glassware or other materials before placing them in a unit. • Don't overcrowd the unit. Too many items can increase electrical energy demand in order to keep everything cool. -
Page 23: Maintenance
• Turn off the freezer. Make no attempt to service or repair a Thermo Scientific product under warranty • Wash interior liner with a solution of two tablespoons of baking soda and a quart of warm water. Then, rinse and wipe it out. -
Page 24: Troubleshooting
Troubleshooting In the event that your unit is not operating properly, check the following before calling for service assistance this may save you the cost of unnecessary service calls. Symptom Possible Cause of Problem Unit not operating. Make certain that the unit is connected to a grounded outlet. Make certain that temperature control knob is not in OFF Position. -
Page 25: Replacement Parts
Replacement Parts To obtain replacement parts information and pricing, please call the Customer Service Department at 1-800-438-4851 and have the unit’s model, serial and code numbers available. This information is located on data plates on the rear of the unit. -
Page 26: Ordering Procedure
Ordering Procedures Please refer to the Specification Plate for the complete model number, serial number, and series number when requesting service, replacement parts or in any correspondence concerning this unit. All parts listed herein may be ordered from the Thermo Scientific dealer from whom you purchased this unit or can be obtained promptly from the factory. -
Page 27: Weee Compliance
Ulteriori informazioni sulla conformità di Thermo Fisher Scientific con queste Direttive, l’elenco delle ditte di riciclaggio nel Vostro paese e informazioni sui prodotti Thermo Scientific che possono essere utili alla rilevazione di sostanze soggette alla Direttiva RoHS sono disponibili sul sito www.thermo.com/ France Conformité... -
Page 28: Warranty
One Year Limited Warranty This Thermo Scientific product is warranted to be free of defects in materials and workmanship for one (1) year from the first to occur of (i) the date the product is sold by the manufacturer or (ii) the date the product is purchased by the original retail customer (the “Commencement Date”). - Page 29 Important For your future reference and when contacting the factory, please have the following information readily available: Model Number: Serial Number: Date Purchased: The above information can be found on the dataplate attached to the equipment. If available, please provide the date purchased, the source of purchase (manufacturer or specific agent/rep organization), and purchase order number.
- Page 30 Thermo Fisher Scientific Inc. 275 Aiken Road Asheville, NC 28804 United States www.thermofisher.com 327342H01 Rev. F...
