jbc CP-2QF Instruction Manual

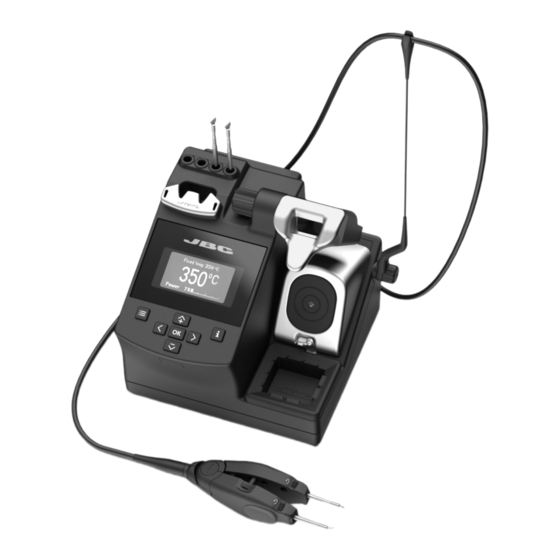

Precision rework station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
CP
Precision Rework Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-2QF and is the answer not in the manual?

Questions and answers

Related Manuals for jbc CP-2QF

Summary of Contents for jbc CP-2QF

  • Page 1 INSTRUCTION MANUAL Precision Rework Station...

  • Page 2: Packing List

    This manual corresponds to the following references: CP-9QF (100V) CP-1QF (120V) CP-2QF (230V) Packing List The following items are included: Control Unit ......... 1 unit Adjustable Micro Tweezers ....1 unit Ref. AM120-A Power Cord ........... 1 unit Brass Wool ............ 1 unit Ref.

  • Page 3: Features And Connections

    para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Adjustable Cable Collector Adjustable Tool Holder 100 mm Cartridge Holder Tip Exchanger 80 mm Screen Tip Cleaner with Antisplash Membrane (Brass Wool inside) 60 mm 带清洁海绵座的刮锡垫 Wiper 50 mm AM120...

  • Page 4: Tip Cleaner

    Leaves a small layer of solder on the tip preventing oxidation between cleaning and rewetting. If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder. Wiper Ref. CL7984 A temperature-resistant receptacle for removing...
  • Page 5 para manuales - color gris 200 mm 130 mm 130 mm Wool/Brush Replacement 1. Unlock the splashguard. 2. Lift off the splashguard and change the worn brasswool/brush for a new one. 100 mm Wool Lock 80 mm 60 mm More cleaning options: 50 mm 40 mm Inox Wool*...

  • Page 6: Changing Cartridges

    Changing Cartridges 1. Removing 2. Positioning Place the cartridges in the extractor and pull Place the tweezers on top of the new cartridge to remove the cartride. and press down slightly. 3. Inserting Use the holes for fixing the cartridges *Important It is essential to insert the cartridges up to the mark for a proper connection.

  • Page 7: Compatible Cartridges

    para manuales - color gris 200 mm 130 mm 130 mm 4. Rotational Cartridge 5. Vertical Cartridge Alignment Alignment 100 mm 80 mm 60 mm Slightly turn the wheels to align Close the tweezers and the rear wheel allows the cartridges to the cartridges as required.

  • Page 8: Operation

    Operation JBC’s Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life is five times longer than with other brands..

  • Page 9: Control Process

    para manuales - color gris 200 mm Control Process 130 mm 130 mm Work Screen 100 mm Fixed temp. 3 5 0 3 5 0 Displays a specific fixed temp. 80 mm Shown when you have selected Levels ºC 2 7 0 2 7 0 3 5 0 3 5 0 4 0 0 4 0 0...

  • Page 10: Menu Screen

    Menu Screen Default PIN: 0105 S t a t i o n s e t t i n g s S t a t i o n s e t t i n g s M a i n m e n u M a i n m e n u Temp unit Celsius...

  • Page 11: Station Settings

    (e. g. riveting). (e.g. multilayered or high Defaut min. temp. is 200 ºC dissipation boards), JBC (392 ºF). This is considered to strongly recommends using be a proper starting point for other aids like preheaters.

  • Page 12: Tool Settings

    Tool Settings Parameter Description Recommendations Warnings Fix One Temperature Ideal for soldering more than Fix a value within the one component at a specific temperature range of the temperature. The station will station (90-450 ºC/190- reject any attempt to change 840 ºF). the temperature.

  • Page 13: Usb Connector

    It provides a more precise / ± 90 °F to achieve zero error. When the user changes 50 mm adjustment between the JBC strongly recommends the cartridge type, the selected temperature and the the use of TID-A or TIA-A parameter should be reset CDE-B actual one.

  • Page 14: Maintenance

    - Periodically check all cables. - Replace any defective or damaged pieces. Only use original JBC spare parts. - Repairs should only be performed by a JBC authorized technical service. EARTH When this warning appears on the main FUSE screen, earthing fuse must be replaced.
  • Page 15 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
  • Page 16 Notes...
  • Page 17 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 18 Notes...

  • Page 19: Specifications

    Specifications 130 mm 130 mm Precision Rework Station Ref.: CP-9QF 100V 50/60Hz. Input fuse: T2A. Output: 23.5V Ref.: CP-1QF 120V 50/60Hz. Input fuse: T2A. Output: 23.5V 100 mm Ref.: CP-2QF 230V 50/60Hz. Input fuse: T1A. Output: 23.5V - Nominal Power:...
  • Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
