jbc CSV-2D User Manual

Compact desoldering station with electric pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.jbctools.com
English
Compact Desoldering Station
with Electric Pump
Ref. CS-D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSV-2D and is the answer not in the manual?

Questions and answers

Related Manuals for jbc CSV-2D

Summary of Contents for jbc CSV-2D

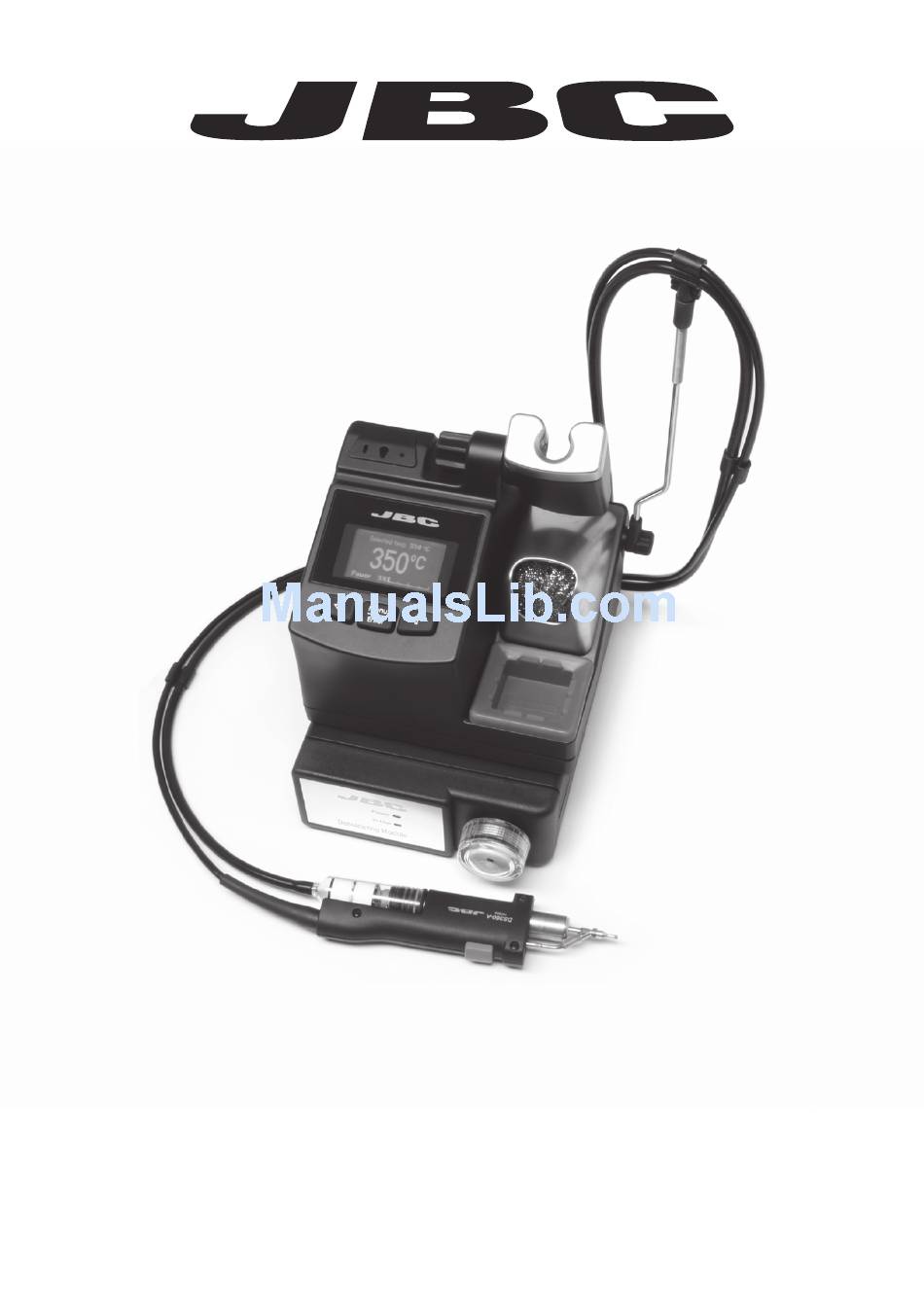

  • Page 1 www.jbctools.com English Compact Desoldering Station with Electric Pump Ref. CS-D...

  • Page 2: Packing List

    Accessories ....1 unit (5 units) (5 units) Ref. 0008466 Ref. CSV-1D (120V) Ref. DS360-A Ref. 0010259 Ref. C360002 Ref. C360004 CSV-2D (230V) CSV-9D (100V) Filter Cleaning brush Solder Collector (2 units) Ref. 0008297 (2 units) Ref. 0008473 Ref. 0008467 Power Cable ....

  • Page 3: Adjustable Stand

    w w w.jbctools.com Features Adjustable Stand Cable collector Adjust the tool stand to suit your work position. Adjustable Stand: Intelligent Heat Management Process Control Tip Cleaning System Cable collector Place the cable on the collector to keep the work area free of cable. Micro Desoldering Iron Ref.

  • Page 4: Usb Connector

    Ref. CL6220 Ref. CL6205 When used carefully, An alternative to Manage and monitor as many stations as your PC can handle by using the JBC Manager it provides a more Brass Wool. software. You can export data to other PCs.

  • Page 5: Operation

    Operation Process Control The JBC Exclusive Heating System Work Screen Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user Shown when you fix a can work at a lower temperature and improve the quality of soldering. Tip temperature is further Fixed temp.

  • Page 6: Changing The Tip

    w w w.jbctools.com Changing the Heating Element Changing the Tip 1. Remove the tip by using a flat-nosed pliers. 2. Insert the new tip and follow the same 1. Remove by pulling the filter and the solder collector. Twist the tip and pull. steps conversely.

  • Page 7: Maintenance

    Press the new fuse into the holder and If necessary use a tool to lever it off. replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.

  • Page 8: Specifications

    w w w.jbctools.com Specifications Exploded View CS-1D 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. CS-2D 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. CS-9D 100V 50/60Hz. Input fuse: 2A. Output: 23,5V. - Weight: 2.8 Kg (6.2lb) - Dimensions: 150 x 175 x 145 mm - Temperature selection: 180-450°C (356-842°F) - Output Peak Power: 40W - Tip to ground resistance: <2 ohms...
  • Page 9 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.

This manual is also suitable for:

Csv-1dCsv-9d
