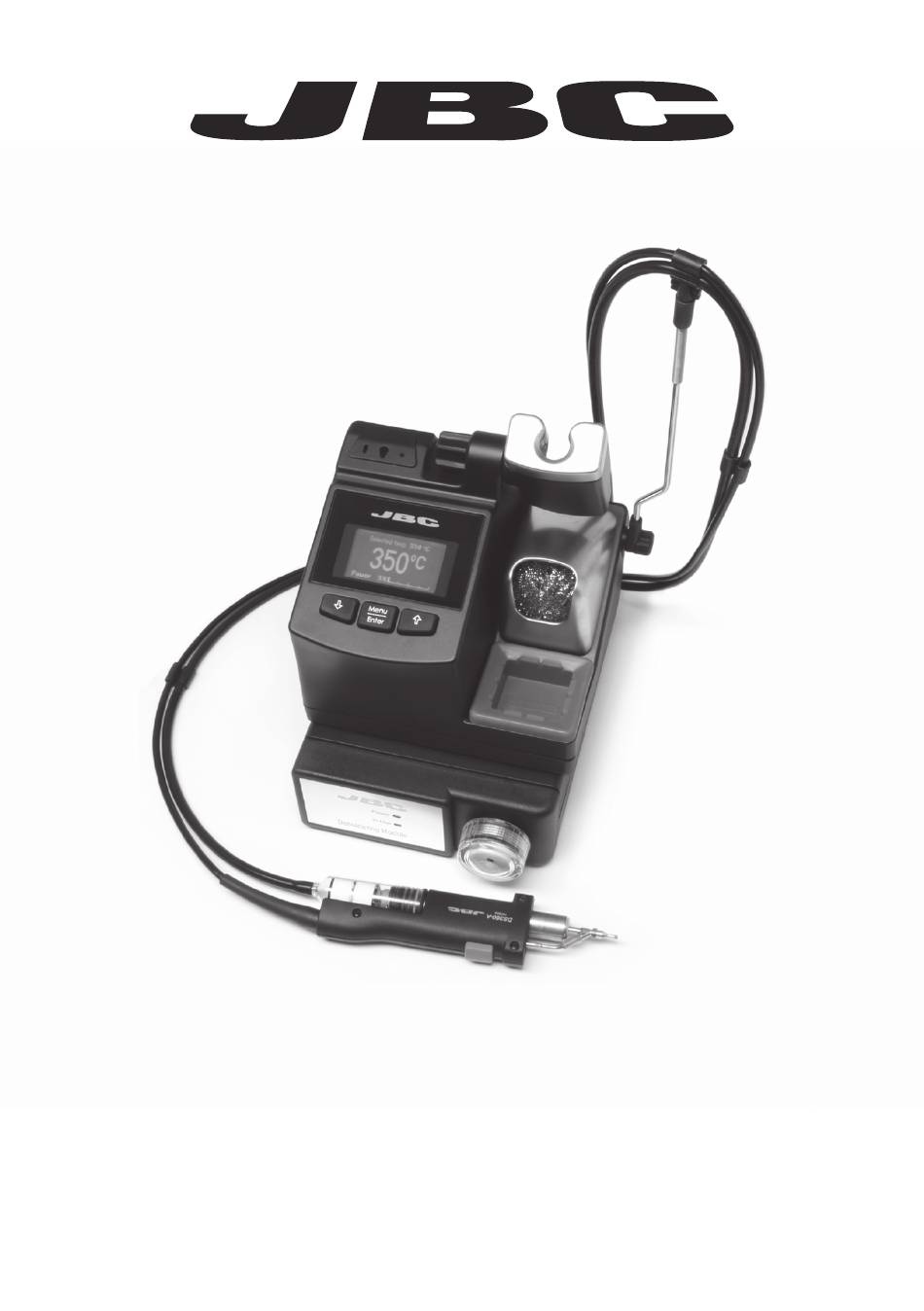

- Page 1 www.jbctools.com English Compact Desoldering Station with Pneumatic Pump Ref. CV-D...
-
Page 2: Packing List
Packing List The following items should be included: CSV Control Unit Micro Desoldering Iron Ref. CSV-1D (120V) Ref. DS360-A CSV-2D (230V) CSV-9D (100V) Power Cord Brass Wool Sponge Ref. 0009417 (100V/120V) Ref. CL6210 Ref. S0354 0009401 (230V) - Page 3 w w w.jbctools.com Tips Tips Cleaning Rods DS360-A Accessories (5 units) (5 units) Ref. 0008466 Ref. 0010259 Ref. C360002 Ref. C360004 Filter Cleaning brush Solder Collector (2 units) Ref. 0008297 (2 units) Ref. 0008473 Ref. 0008467 Pneumatic Desoldering Module 50 Filter Box Cotton Filters Escape Filter Ref.
- Page 4 Features Cable collector Adjustable Stand: Intelligent Heat Management Process Control Tip Cleaning System Micro Desoldering Iron Ref. DS360-A Equipotential connection Main switch Fuse Power Socket USB-B Module Air pressure range Cable onnector supply (4 - 6 bar)* Ref. 0010207 Suction Filter Ref.
-
Page 5: Adjustable Stand
w w w.jbctools.com Adjustable Stand Tilt the tool stand to suit your work position. Cable collector Place the cable on the collector and adjust to keep work area free of cable. - Page 6 Tip Cleaning System Select the option that best suits your tip cleaning needs. Splashguard Brass Wool Ref. CL6210 Very effective cleaning method. Leaves a small layer of solder on the tip preventing oxidation between cleaning and rewetting. More options for the splashguard (not supplied): Metal Brush Inox Wool Ref.
-
Page 7: Usb Connector
Update the station software via USB connection: Cable USB AB Updater JBC Manager www.jbctools.com/manager.html Manage and monitor as many stations as your Windows PC can handle by using the JBC Mana- ger software. You can export data to other PCs. any JBC station Cable... -
Page 8: Operation
Operation The JBC Exclusive Heating System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases x5 times. 1. Work 2. Sleep 3. Hibernation... -
Page 9: Process Control
w w w.jbctools.com Process Control Work Screen Displays a specific fixed temp. Fixed temp. 3 5 0 Shown when you have Levels ºC 2 7 0 3 5 0 4 0 0 selected temp. levels. Selected temp. 3 5 0 This screen provides useful information of tool status in real time. -
Page 10: Changing The Tip
Changing the Tip 1. Remove the tip by using a flat-nosed pliers. Twist the tip and pull. 2. Insert the new tip and follow the same steps conversely. Important: Change tips only when the tool is hot. Do not hold the tip on the spring clamp. Compatible tips The CS and CV desoldering stations work with C360 tip range. -
Page 11: Changing The Heating Element
w w w.jbctools.com Changing the Heating Element 1. Pull off the filter and the solder collector. 2. Undo the fixing screw indicated in the picture and remove the heating element. 3. Insert the new heating element following the same steps conversely. Heating element Ref. -
Page 12: Maintenance
Press the new fuse into the holder and If necessary use a tool to lever it off. replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 13 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
-
Page 14: Exploded View
Exploded View... -
Page 15: Specifications
w w w.jbctools.com Specifications CV-1D 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. CV-2D 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. CV-9D 100V 50/60Hz. Input fuse: 2A. Output: 23,5V. - Total weight and size: 2,8 Kg (6.2lb) 150 x 175 x 145 mm - Temperature selection: 180-450°C (356-842°F) - Output Peak Power: 40W - Tip to ground resistance: <2 ohms... - Page 16 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
