Poly Documentation
Copyright © 2022, Plantronics, Inc. All rights reserved. No part of this document may be reproduced, translated into
another language or format, or transmitted in any form or by any means, electronic or mechanical, for any purpose,
without the express written permission of Polycom, Inc
6001 America Center Drive
San Jose, CA 95002
USA
Printed from Poly (http://documents.polycom.com)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Focus Room Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Poly Focus Room Kit

Summary of Contents for Poly Focus Room Kit

  • Page 1 Copyright © 2022, Plantronics, Inc. All rights reserved. No part of this document may be reproduced, translated into another language or format, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Polycom, Inc 6001 America Center Drive San Jose, CA 95002 Printed from Poly (http://documents.polycom.com)

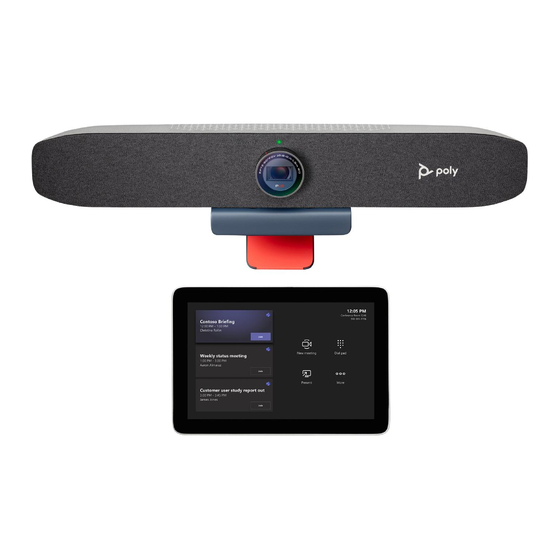

  • Page 2 Poly Focus Room Kit with Poly Studio P15 Setup instructions for the Poly Focus Room Kit. Poly Focus Room Kit with Poly P15 Components Note Before installing the Poly Studio Room Kit, you'll need the following: • Required License for Microsoft Teams Rooms •...

  • Page 3: Cable Management

    Microsoft Teams Rooms help on the Microsoft support website. Poly Focus Room Kit with Poly P15 Cabling Diagram This diagram includes the complete cabling for the Poly Focus Room Kit with Poly Studio P15. Printed from Poly (http://documents.polycom.com) Page 3...
  • Page 4 For more information on Poly Studio P15 setup, see the Poly Studio P15 Quick Start Guide. Connect the Poly GC8 to the Conferencing PC Connect the cables to the Poly GC8 and connect the GC8 to the Conferencing PC. Don’t plug in or power on any components until you’ve connected all cables to the Poly Note GC8 and Conferencing PC.
  • Page 5 If the retaining screw causes the cover to seem stuck, try one of the following: Turn the Poly GC8 so the bottom panel is facing down as you slide off the bottom panel. Push up with one hand while using the screwdriver to turn the retaining screw counterclockwise.
  • Page 6 2 Connect the cables to the Poly GC8. a. Connect the USB-C connector of the supplied USB-A to USB-C fiber optic cable to the Poly GC8. b. Connect the power cable to the Poly GC8. c. If you want to allow users to share content in a conference, connect the mini-HDMI connector of the mini-HDMI to HDMI cable to the Poly GC8.
  • Page 7 3 Reattach the cable guard and the bottom panel. Printed from Poly (http://documents.polycom.com) Page 7...
  • Page 8 For Dell PCs, route the cable through the included Dell cable management bracket. Connect the Poly Studio P15 to the Conferencing PC Connect the Poly Studio P15 camera to the Conferencing PC to add a video camera and microphones. Note The Poly Studio P15 personal video bar ships with a USB-C to USB-C cable.
  • Page 9 When using 4K monitors, the meeting room controls screen may appear on the monitor and not on the Poly GC8 controller. When this happens, the Poly GC8 displays a blank screen. To resolve this issue, Poly recommends using a 1080p limited EDID emulator with your 4K monitor. For additional installation and configuration information, see the EDID manufacturer’s instructions.
  • Page 10 Connect the Conferencing PC to your network using an Ethernet cable. Note Microsoft Teams Room doesn’t support wireless video conferencing. Procedure • Using an Ethernet cable, connect the Conferencing PC to an Ethernet port. Printed from Poly (http://documents.polycom.com) Page 10...
