Basic Wiring Diagram - Assa Abloy Alarm Controls KP-400 Operating Instructions Manual

Use N/C contact for magnetic locks and fail-safe
electric strikes.
Use N/O contact for fail-secure electric strikes.
The 1N4004 Diode must be used for DC powered
electric strike applications.
AC POWER CAN ONLY
BE USED WITH
AC POWERED
ELECTRIC STRIKES

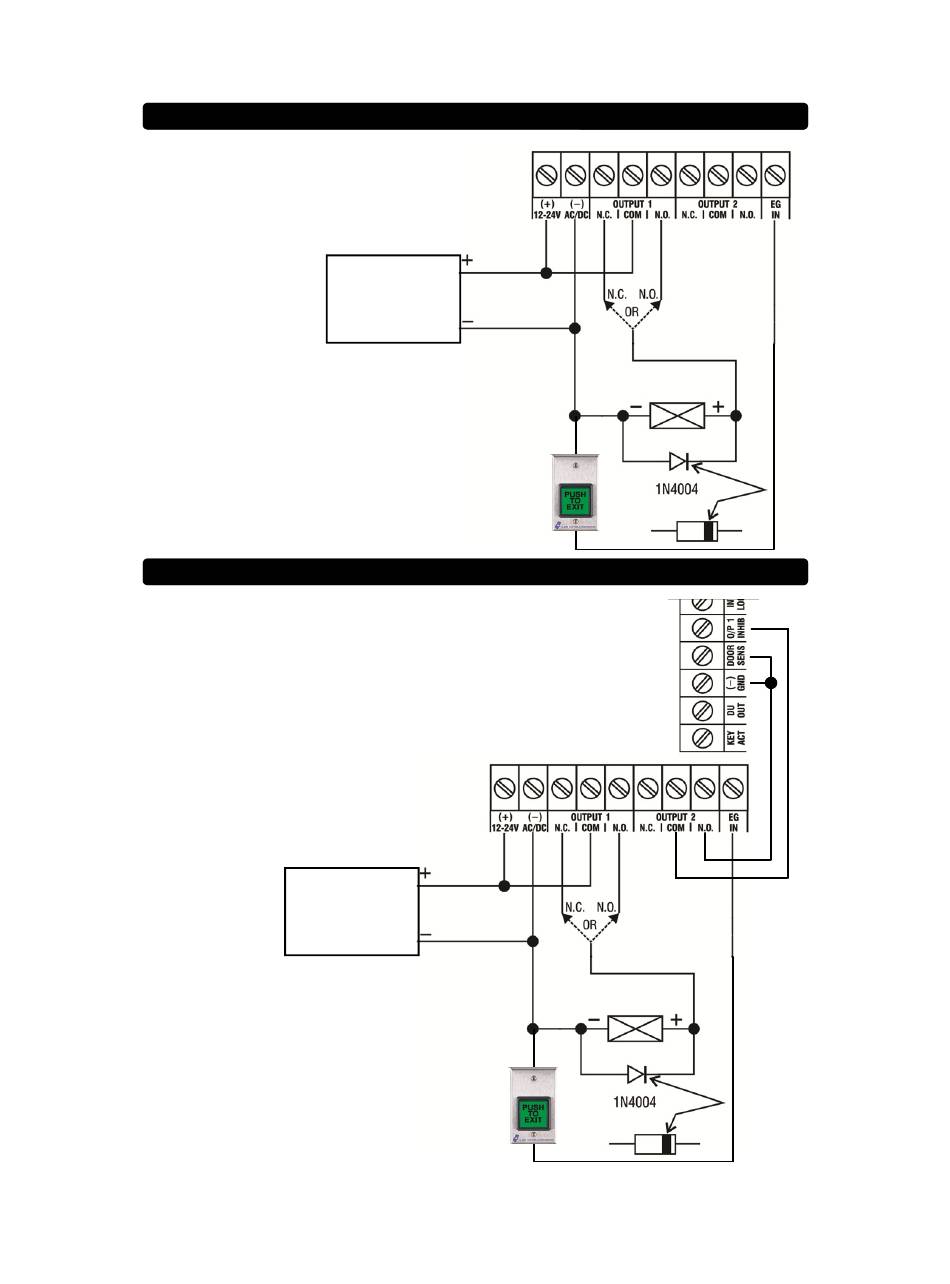

DOOR LOCK INHIBIT WIRING DIAGRAM
Output 2 is used to control access of Output 1 users. Output 2 must be
in Latching Mode. Activating Output 2 will lock out Output 1 users.
Use N/C contact for magnetic locks and fail-safe electric strikes.
Use N/O contact for fail-secure electric strikes.
The 1N4004 Diode must be used for DC powered electric strike
applications.
Warning!
Be careful not to lock people inside!
12 OR 24V
AC OR DC
POWER
SUPPLY
AC POWER CAN ONLY
BE USED WITH
AC POWERED
ELECTRIC STRIKES

BASIC WIRING DIAGRAM

12 OR 24V
AC OR DC
POWER
SUPPLY
MODEL TS-2
REQUEST TO
EXIT STATION
(OPTIONAL)
USE N/O CONTACTS
MODEL TS-2
REQUEST TO
EXIT STATION
(OPTIONAL)
USE N/O CONTACTS
9
MAGNETIC LOCK
OR
ELECTRIC STRIKE
MAGNETIC LOCK
OR
ELECTRIC STRIKE
