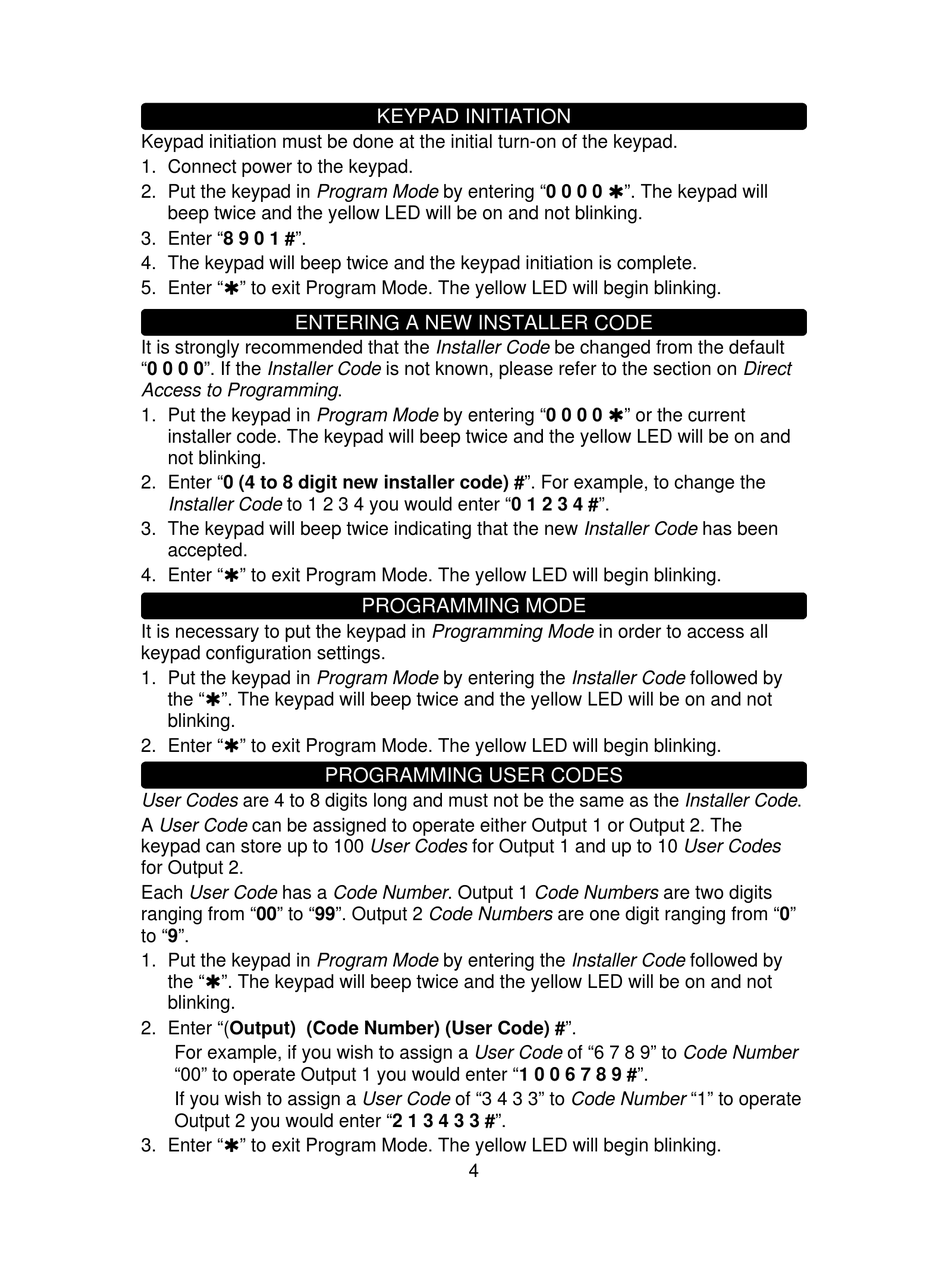

Keypad initiation must be done at the initial turn-on of the keypad.
1. Connect power to the keypad.
2. Put the keypad in Program Mode by entering "0 0 0 0 ". The keypad will
beep twice and the yellow LED will be on and not blinking.
3. Enter "8 9 0 1 #".
4. The keypad will beep twice and the keypad initiation is complete.
5. Enter "" to exit Program Mode. The yellow LED will begin blinking.
ENTERING A NEW INSTALLER CODE
It is strongly recommended that the Installer Code be changed from the default
"0 0 0 0". If the Installer Code is not known, please refer to the section on Direct
Access to Programming.
1. Put the keypad in Program Mode by entering "0 0 0 0 " or the current
installer code. The keypad will beep twice and the yellow LED will be on and
not blinking.
2. Enter "0 (4 to 8 digit new installer code) #". For example, to change the
Installer Code to 1 2 3 4 you would enter "0 1 2 3 4 #".
3. The keypad will beep twice indicating that the new Installer Code has been
accepted.
4. Enter "" to exit Program Mode. The yellow LED will begin blinking.
It is necessary to put the keypad in Programming Mode in order to access all
keypad configuration settings.
1. Put the keypad in Program Mode by entering the Installer Code followed by
the "". The keypad will beep twice and the yellow LED will be on and not
blinking.
2. Enter "" to exit Program Mode. The yellow LED will begin blinking.
User Codes are 4 to 8 digits long and must not be the same as the Installer Code.
A User Code can be assigned to operate either Output 1 or Output 2. The
keypad can store up to 100 User Codes for Output 1 and up to 10 User Codes
for Output 2.
Each User Code has a Code Number. Output 1 Code Numbers are two digits
ranging from "00" to "99". Output 2 Code Numbers are one digit ranging from "0"
to "9".
1. Put the keypad in Program Mode by entering the Installer Code followed by
the "". The keypad will beep twice and the yellow LED will be on and not
blinking.
2. Enter "(Output) (Code Number) (User Code) #".
For example, if you wish to assign a User Code of "6 7 8 9" to Code Number
"00" to operate Output 1 you would enter "1 0 0 6 7 8 9 #".
If you wish to assign a User Code of "3 4 3 3" to Code Number "1" to operate
Output 2 you would enter "2 1 3 4 3 3 #".
3. Enter "" to exit Program Mode. The yellow LED will begin blinking.
KEYPAD INITIATION

PROGRAMMING MODE

PROGRAMMING USER CODES

4
