ROLLOMAXIMUM XL
EN
930 and 1230 cm
Serial no.: 00100-XXXX

Advertisement

Table of Contents
loading

Summary of Contents for DALBO ROLLOMAXIMUM XL

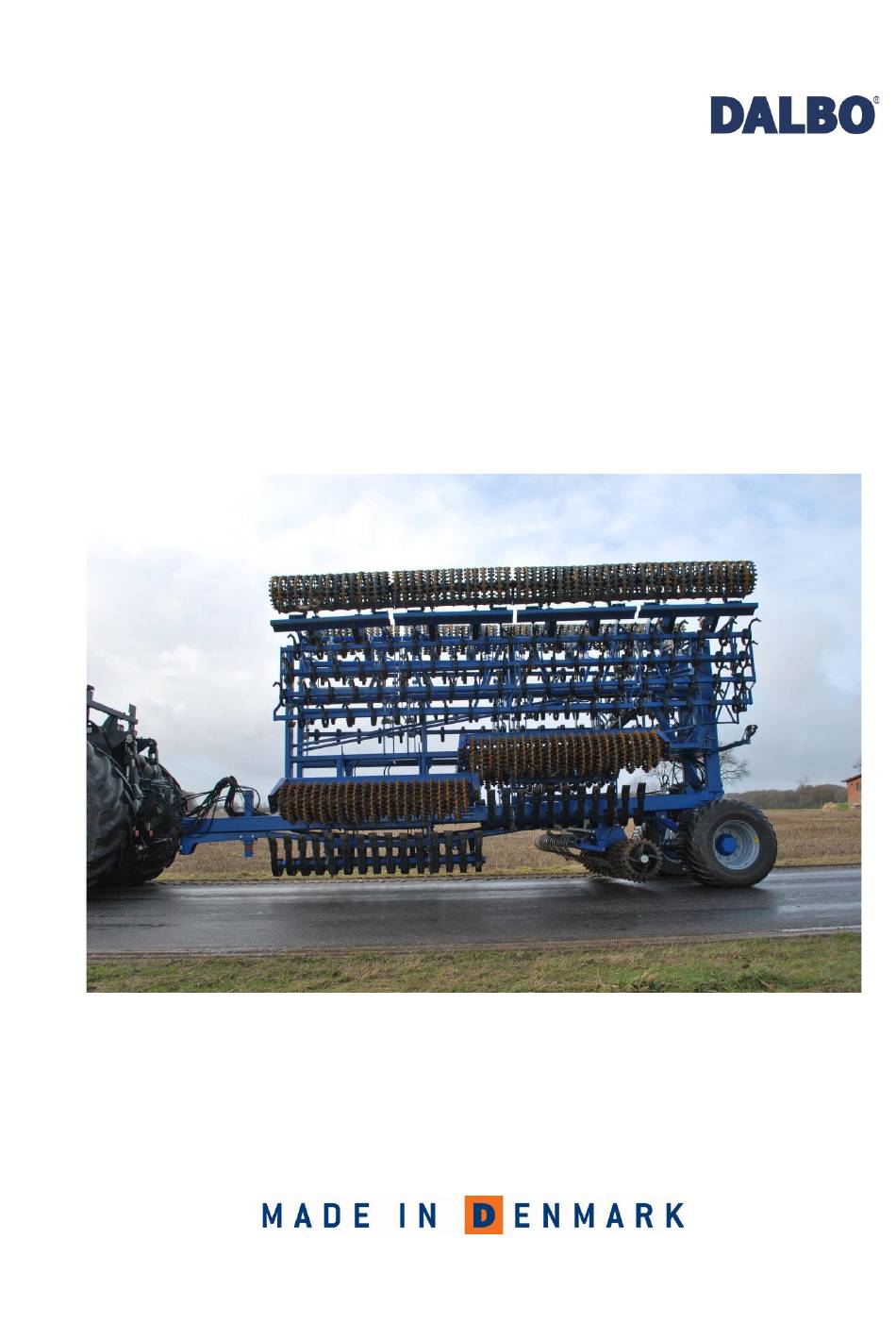

  • Page 1 ROLLOMAXIMUM XL 930 and 1230 cm Serial no.: 00100-XXXX...
  • Page 3 Congratulations on the purchase of your new multifunctional agricultural implement. For safety reasons and to achieve optimum performance from the product, please read the User Guide before use. © Copyright 2002. All rights reserved, DALBO A/S Machine specifications: Type no.: Serial no.:...
  • Page 4: Table Of Contents

    ROLLOMAXIMUM XL Table of Contents ................................... 6 AFETY General ................................6 Hydraulics ..............................7 Assembly................................ 7 Maintenance and repair ..........................7 Road transport .............................. 8 Correct use ..............................8 Technical data ............................... 8 ............................9 OW TO USE THIS MANUAL Delivery ................................
  • Page 5 ROLLOMAXIMUM XL Replacing the crackerboard cylinder (green) ..................32 Removal/fitting wheel ..........................35 Replacing rollers ............................35 Replacing the roller in the front centre section ..................36 Replacing the front centre roller ....................... 36 .............................. 37 YDRAULIC DIAGRAM ................................40 UARANTEE ................................
  • Page 6: Safety

    ROLLOMAXIMUM XL Safety This symbol appears in the instruction manual each time there is a safety warning concerning your safety, the safety of others or the safe operation of the machine. All safety instructions must be observed and made available to all users of the ma- chine.
  • Page 7: Hydraulics

    ROLLOMAXIMUM XL Hydraulics • Fold out machine and set down on an underlay for any repair work on the hy- draulic system. Relieve hydraulic pressure, switch engine off and remove igni- tion key. • Clean hydraulic connections thoroughly before reconnecting. When connecting hydraulic hoses to tractor hydraulics, ensure they are not under pressure.
  • Page 8: Road Transport

    ROLLOMAXIMUM XL Road transport • All statutorily required safety and warning features must be fitted and tested before transporting the machine on public roads. The driver is responsible for correct lighting and warning signs in accordance with traffic regulations. • Check with local traffic authorities whether transport on public roads is allowed given the machine's dimensions.
  • Page 9: How To Use This Manual

    ROLLOMAXIMUM XL How to use this manual The sequence of topics in this manual may at first glance not always appear to be logical. Please refer to the table of contents for page numbers for individual items. The manual is divided into main sections: •...
  • Page 10: Limitations To Use

    ROLLOMAXIMUM XL Limitations to use The following describes what the machine can and cannot be used for: • The machine may only be used for levelling, compacting and harrowing cultivated land. Fields on which the machine is used must be well tilled, i.e. without major unevenness or potholes.
  • Page 11: Description Of The Machine

    ROLLOMAXIMUM XL Description of the machine Construction The ROLLOMAXIMUM XL is a robust, multifunctional agricultural implement with the following features: • The machine consists of 5 different working implements. At the front there is a parallel- mounted hydraulically adjustable crackerboard, followed by a Ø53/Ø48 cm cross-kill roller.
  • Page 12: Connecting And Disconnecting

    • ROLLOMAXIMUM XL 930 / 1230 may only be hitched to a tractor via a pick- up hitch as shown in the photo on this page. Never use a ball hitch or the tractor lift arms.
  • Page 13: Disconnection

    ROLLOMAXIMUM XL Tilt cylinder White Double-acting Raises side frames off the transport locks at the front of the drawbar and tilts the whole machine middle frame with side frames backwards / for- wards. Retract/ Double-acting Retracts/extends side sections and distributes...
  • Page 14: Adjusting Drawbar Height

    ROLLOMAXIMUM XL ROLLOMAXIMUM is supplied with factory settings, but fine adjustment will always be required before use. Numerous adjustment options make the machine more flexible and optimise its use. To ensure that the ground is uniformly worked, the drawbar must be correctly aligned to the tractor used.
  • Page 15 ROLLOMAXIMUM XL Lift side sections off the transport cradle (A) with the tilt cylinder (marked: white valve block no. 4). Extend/retract cylinder (marked: Red) is activated and the side sections are com- pletely folded out. The tilt cylinder (marked: white valve block no.
  • Page 16: Retraction

    ROLLOMAXIMUM XL Retraction The wheel frame (marked: yel- low) is activated and the ma- chine is lifted off the ground. The tilt cylinder (marked: white valve block no. 4) is retracted and the machine is tilted for- ward to the side frames and the centre frame is in the up- right position.
  • Page 17 ROLLOMAXIMUM XL To reduce the height of the ma- chine's centre of gravity and lower the transport height to a maximum of 4 metres, the machine can be lowered via the wheel frame (A) 400 cm (marked: yellow). The machine is lowered until there is approx.
  • Page 18: Adjustment Of Hydraulic Weight Transfer System

    ROLLOMAXIMUM XL Adjustment of hydraulic weight transfer system The hydraulic weight transfer system distributes the weight evenly between all the machine's sections. Once the roller is fully extended and the transport wheels are off the ground, the extend/retract cylinders are depressurised (marked: red), the cylinder control lever is then moved in the opposite direction.
  • Page 19: Adjustment Of The Hydraulic Suspension On The Middle Cross-Kill Shaft

    ROLLOMAXIMUM XL  To prolong the ROLLOMAXIMUM's service life and the optimise the tilled field finish, it is very important that the extend/retract outlet (marked: Red) is set to the float position for field work.  If the outlet (marked: red) is not set to float position, this constitutes in- correct use and in the worst case may cause the frame to break.
  • Page 20: Operating Speed

    ROLLOMAXIMUM XL Operating speed An operating speed of 6-10 km/h is recommended, but always operate according to conditions. Power requirement will depend on soil type, terrain and speed. This is a crucial fac- tor as it determines the working depth with crackerboards and the harrow section.
  • Page 21: Adjusting Harrowing Depth

    ROLLOMAXIMUM XL A deeper setting will increase the level- ling effect to that of a levelling board, as a small bank of soil builds up in front of the tines. It is not designed to act as a dozer blade, but to break the soil down. As each tine can move individually and thus yield to localised pressure, the crackerboard is easy to use and requires little adjustment compared to a levelling board.
  • Page 22: Adjusting The Rear Levelling Board

    ROLLOMAXIMUM XL The hydro-clip spacer rings (C) are stowed on the scale (D), when not in use. If no spacer rings are used on the cylinder, the harrow can go to the max- imum depth. Two types of hydro-clip are supplied with the machine with a total of 4x 31.8 mm and 6x 21.4 mm...
  • Page 23: Maintenance

    ROLLOMAXIMUM XL The rear cross-kill roller (A) is adjusted ex works via the row of holes (B) so that the frame (C) is level, when the machine is in the working position on a level surface. Horizontal If the underlying soil is...
  • Page 24 ROLLOMAXIMUM XL Page 24...
  • Page 25: Adjustment

    ROLLOMAXIMUM XL Lubrication points Num- Lubrica- Balloon ber of tion in- nip- tervals, ples hours Flange bearing rear cross-kill roller Spindles rear levelling board / front crackerboard Cylinders harrow hoist Parallel-arm harrow hoist Connecting arm harrow hoist Bearing front cross-kill roller (side)
  • Page 26: Replacement And Repairs

    ROLLOMAXIMUM XL Replacement and repairs  Safety is vital in the performance of all repair work on the machine. Always observe the following points, plus those under Safety First in the instruction manual. When replacing cylinders, always fill the new cylinder with oil before pressurising system.
  • Page 27 ROLLOMAXIMUM XL Activate extend cylinder after fitting until cylinder shows movement. Reverse cyl- inder until it returns to start position. Move cylinder backwards and forwards sev- eral times. If air is not correctly bled off from the cylinder as described above, there is a risk that part of the machine can suddenly move much quicker than normal, before the tractor driver can prevent it.
  • Page 28: Replacing The Tilt Cylinder (White Valve Block No. 4)

    ROLLOMAXIMUM XL 1. Fit new gaskets in upper part and collar shoe. The scraper ring is mounted using a piece of pipe, passed around outside of lip, (or a special drift). Fit collar (9) onto collar shoe using tubular bar or screwdriver.
  • Page 29 ROLLOMAXIMUM XL Replacing gasket in tilt cylinder 1. Drain oil from cylinder by moving ram carefully backwards and forwards. 2. Extend cylinder halfway. Unscrew and remove upper part (3) from cylinder tube (1). Use special tool to remove upper part. If upper part is stuck, heat front of upper part.
  • Page 30: Replacement Of Wheel Cylinder (Yellow)

    ROLLOMAXIMUM XL Replacement of wheel cylinder (yellow) The machine is folded out to the work- ing position, the wheels (B) are lifted off the ground and pressure relieved from the wheel cylinders (A). 1. Disconnect hoses from cylinder 2. Support cylinder 3.
  • Page 31: Replacing Cylinder For The Front Centre Cross-Kill Axle (Black)

    ROLLOMAXIMUM XL 3. Remove split pins from pins, remove pins 4. Remove cylinder 5. Fit new or repaired cylinder After fitting, the harrow hoist is actuated until the cylinder shows a slight travel. Reverse cylinder until it returns to start position. Move cylinder backwards and forwards several times.
  • Page 32: Replacing The Track Loosener Cylinder (White Valve Block No. 2)

    ROLLOMAXIMUM XL therefore swing out very quickly if air bleeding is not performed correctly. This rep- resents a major risk of injury to personnel and of damage to the machine. Ensure no personnel are within the extension radius of the side sections.
  • Page 33 ROLLOMAXIMUM XL The machine is extended to the work- ing position, the wheels are raised so that the two cross-kill rollers are rest- ing on the ground. The crackerboard tines (A) are then lowered so that they rest on the ground. The cylinder is then depressurised (B).
  • Page 34 ROLLOMAXIMUM XL Replacing the gasket set in the crackerboard cylinder Cylinder 25/60/25-205 1 Drain oil from cylinder by moving ram carefully backwards and forwards. 2 Extend cylinder halfway. Unscrew and remove upper part (3) from cylinder tube (1). Use special tool to remove upper part. If upper part is stuck, heat front of upper part.
  • Page 35: Removal/Fitting Wheel

    ROLLOMAXIMUM XL Removal/fitting wheel Before removing wheel, fully extend the machine to the working position with rings resting on ground. Wheels can then be raised off the ground. Remove wheel nuts. Remove wheel. Replace wheel, hand-tighten wheel nuts. Lower wheels to ground. Tighten wheel nuts to 510 Nm.
  • Page 36: Replacing The Roller In The Front Centre Section

    ROLLOMAXIMUM XL Replacing the roller in the front centre section Lifting gear with a minimum lifting capacity of 1000 kg must be available. Replacing the front centre roller 1. The machine is extended into the working position and low- ered via the wheel frame (A) until the axle (B) just touches the ground.
  • Page 37: Hydraulic Diagram

    ROLLOMAXIMUM XL Hydraulic diagram Page 37...
  • Page 38 ROLLOMAXIMUM XL Page 38...
  • Page 39 ROLLOMAXIMUM XL Page 39...
  • Page 40: Guarantee

    • Non-original spare parts used. DALBO A/S cannot be held liable for consequential damage, loss of earnings or profit or as a result of de- fects. DALBO A/S cannot be held liable for labour costs other than those reasonably incurred for repairs or the replacement of parts covered by the guarantee.
  • Page 41: Scrapping

    ROLLOMAXIMUM XL Scrapping The machine should be extended and lowered to the ground. It is essential that all cylinders are depressurised. Beware of the weight of any given part when removing or disassembling. All parts must be supported or lifted to avoid danger of falling.
  • Page 42: Spare Parts

    ROLLOMAXIMUM XL Spare parts Page 42...
