PRE-OPERATION CHECKLIST

Package Contents & Assembly
Model: IWC28S
Package Contents:
Air Compressor
25 ft Air Hose
1/4" BSPP to Male QD Fitting
Owner's Manual
Air Filter
Wheel & Foot Assembly Kit:
2 - #44 Nut - 17mm (11/16")
2 - #45 Washers
2 - #46 Wheel
2 - #47 Wheel bolts (Phillips head)
1 - #49 Nut - 13mm (1/2")
1 - #50 Cushion Foot
1 - #51 bolt - 13mm (1/2")
Assembly:

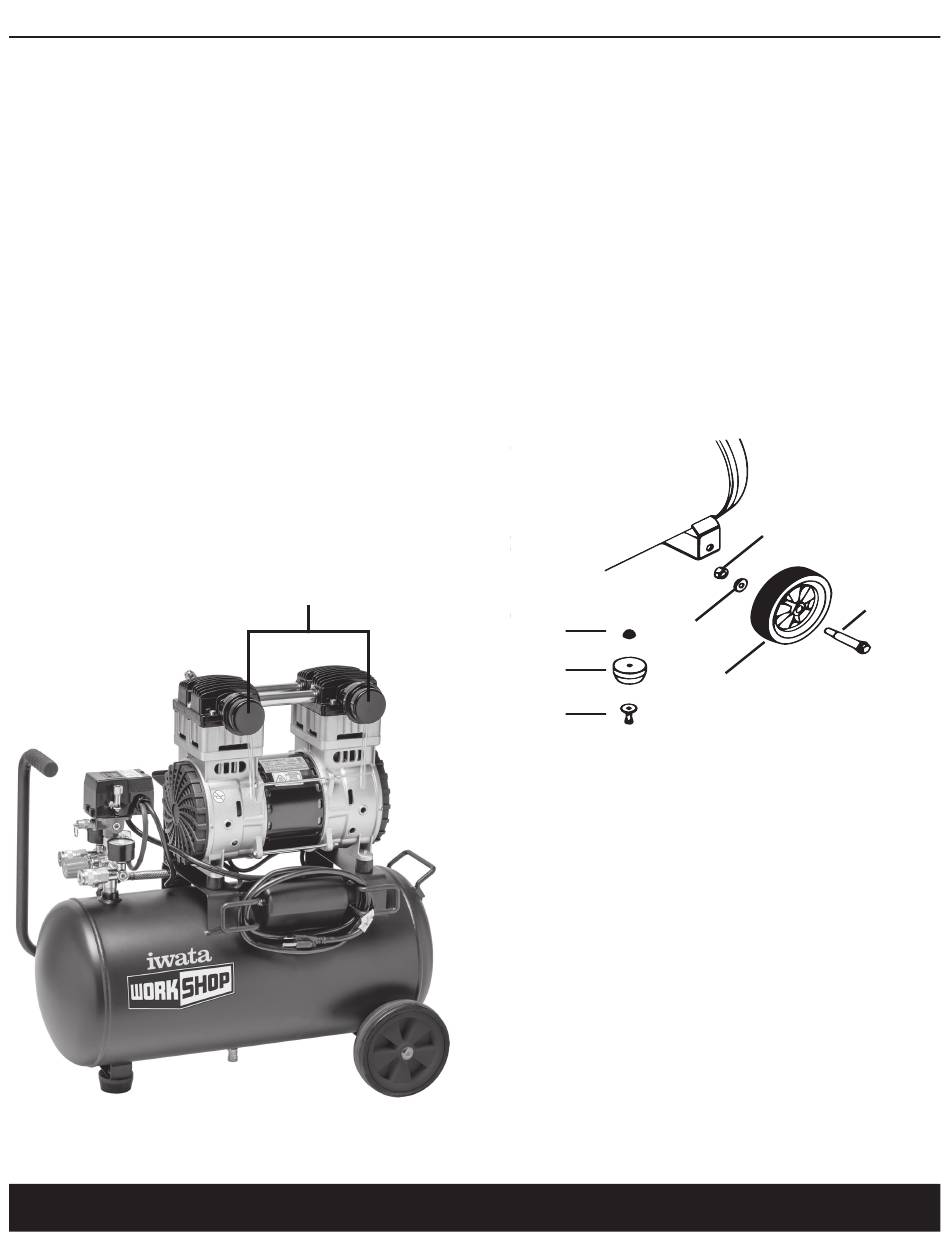

Install The Air Filter
1. Attach the air filter to the top rear of motor head. (Looking
from the front to the back of the air compressor.)
Screw the air filter into the motor head port that is located
under the plastic head cover.
8
Customer Support 503-253-7308 M-F, 8am-4:30pm PST | iwata.support@iwata-medea.com | www.iwata-airbrush.com/blog/contact-us
Air Filter
www.iwata-airbrush.com
Install The Wheel Kit
1. Slide bolt #47 through Wheel #46 .
2. Slide the bolt #47 through wheel support hole located on
the back bottom of the air compressor tank.
3. Attached the Washer #45 and Nut #44 to the bolt #47 and
tighten firmly.
4. Repeat steps 1-3 to assemble the other wheel.
5. Slide bolt #51 through the Cushion Foot #50
6. Slide bolt #51 through cushion foot support hole located
on the front bottom of the air compressor..
7. Attach Nut #49 to bolt #51 firmly.
45
49
50
51
44
47
46
