Iwata IS-50 Silver Jet Assembly Instructions

P.O. Box 14397 * Portland, OR 97293 * Ph.503.253.7308 * Fx.503.253.0721

e-mail: info@iwata-medea.com * website: www.iwata-medea.com

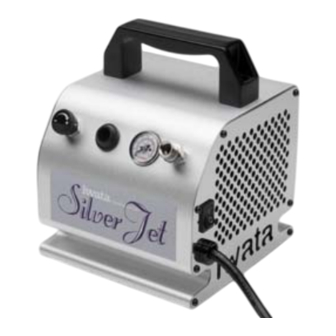

Iwata Silver Jet Air Compressor

Congratulations on the purchase of the Iwata Silver Jet Air

Compressor. This air compressor has been designed for user who

needs quite, clean and pulse free air with precise adjustment of air

pressure to the airbrush. Carefully follow the instructions in this

owners manual before using the unit.

Features:

Oil-less piston compressor

Air Pressure Adjustor

Air Pressure Gauge

Airbrush Holder

Power Switch

Protective Metal Case

Pistol Grip Filter

a. Carefully unpack the compressor and all packaged components.

Included in the box are the following

items:

1 ea. IS-50 compressor

1 ea. Airbrush Airhose

1 ea. Pistol Grip Filter

b. Screw the Pistol Grip Filter

onto the airbrush

(finger tighten only)

Assembly Instructions

Model IS-50

Table of Contents

Do you have a question about the IS-50 Silver Jet and is the answer not in the manual?

Page 1: Assembly Instructions
Assembly Instructions Iwata Silver Jet Air Compressor Model IS-50 Congratulations on the purchase of the Iwata Silver Jet Air Compressor. This air compressor has been designed for user who needs quite, clean and pulse free air with precise adjustment of air pressure to the airbrush.
Page 2 c. Screw the airhose onto the Pistol Grip Filter. (finger tighten only) d. Screw the airhose onto the compressor. e. Press down on the trigger before turning on the unit. f. Plug the unit into a grounded wall outlet. Turn ON the unit by pressing the top side of the switch.
