Summary of Contents for Iwata Smart Jet Pro IS-875

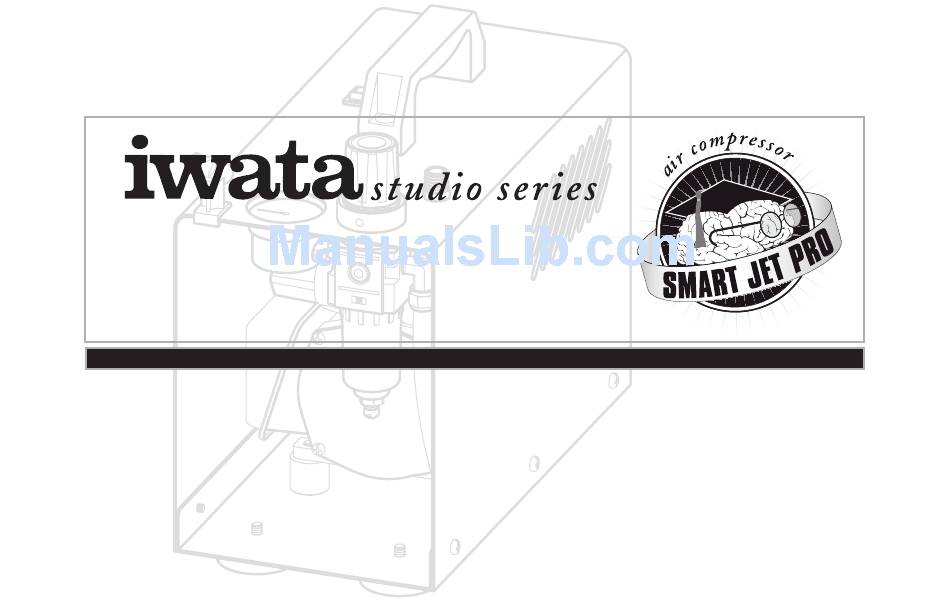

- Page 1 A I R C O M P R E S S O R IWATA STUDIO SERIES SMART JET PRO AIR COMPRESSOR — IS-875 Congratulations on your new purchase! The Iwata Smart Jet Pro Air Compressor delivers quiet, clean, pulse free air along with superb moisture separation and precise air pressure adjustment.
-
Page 3: Need Assistance
If you have any issues with this product, call ANEST IWATA-MEDEA (U.S.A.) 503-253-7308 (M-F 8am-4pm Paci c Time) or your local ANEST IWATA a liate before returning to your place of purchase. ANEST IWATA-MEDEA, INC. ANEST IWATA CORPORATION ANEST IWATA AUSTRALIA PTY LTD. - Page 4 FEATURES Oil-Less Piston Compressor Oil-less means oil-less! The compressor uses PTFE gaskets to seal the compression chamber. This allows the compressor to be quiet without atomizing oil into the air stream, which makes the compressor virtually maintenance free. Air Pressure Adjustment Knob Though not a full regulator, the air pressure adjustment knob allows control of the air pressure.
- Page 5 ASSEMBLY INSTRUCTIONS Unpack the compressor and all packaged components. Enclosed you’ll find: a. Smart Jet Pro Compressor (#IS 875) b. Straight Air Hose (#DT I 10) c. Adapter Kit (for other brands of airbrushes) d. Smart Jet Pro Manual VOLTAGE - CAUTION READ CAREFULLY If you bought the compressor in the country you’re going to use it, it’s completely ready to go.
-
Page 6: Getting Started
2. Screw the other end of the air hose onto your Iwata airbrush and hand tighten to create a leakproof seal. NOTE: If not using an Iwata airbrush, then screw on the appropriate air hose adaptor for the brand of airbrush being used. - Page 7 REGULATING THE PRESSURE When you first hook up your airbrush to your compressor and depress the trigger of your airbrush, the pressure that registers on your gauge is called your “working pressure. ” Your working pressure can vary depending on the size of your airbrush’s nozzle. The smaller the nozzle size, the higher your working pressure.
-
Page 8: Maintenance
MAINTENANCE Draining the Moisture Filter 1. After prolonged use of the compressor, water condensation will accumulate inside the moisture filter. 2. To drain the moisture filter, make sure the unit is turned on. 3. With a paper towel or rag, push up on the relief valve under the moisture filter bowl. Moisture will expel from filter bowl until empty. -
Page 9: Troubleshooting
1. There is an air leak in the air hose fittings or in the compressor system. 2. The air intake filter is clogged. 3. The regulator needs to be adjusted to increase the air pressure. For any other problems or issues call or contact ANEST IWATA-MEDEA at 503-253-7308 or email at: info@iwata-medea.com... -
Page 10: Warranty
Genuine Iwata Copyright © 2009 Iwata-Medea Inc. All rights reserved. The Iwata-Medea logo, Iwata-Medea®, Iwata Eclipse™, Iwata Revolution™, Iwata Kustom™, Iwata Micron™, Sprint Jet™, Smart Jet Pro™, Power Jet Pro™, Power Jet Lite™, Medea Super Lube ™, Pistol Grip Filter™,... - Page 12 — w w w . I W A T A A I R B R U S H . c o m — ANEST IWATA-MEDEA, Inc. • 1336 N. Mason St. • Portland, Oregon 97217 tel: (503) 253-7308 • fax: (503) 253-0721 •...
