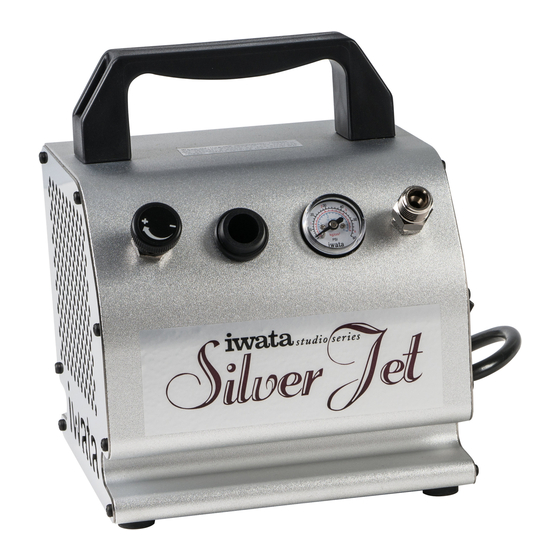

IWATA STUDIO SERIES SILVER JET AIR COMPRESSOR — IS-50
Congratulations on your new purchase! The Iwata Silver Jet Air Compressor has been designed for
users who need quiet, clean, pulse-free air with precise adjustment of air pressure to the airbrush.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Studio Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Iwata Studio Series

  • Page 1 IWATA STUDIO SERIES SILVER JET AIR COMPRESSOR — IS-50 Congratulations on your new purchase! The Iwata Silver Jet Air Compressor has been designed for users who need quiet, clean, pulse-free air with precise adjustment of air pressure to the airbrush.
  • Page 2 ASSEMBLY INSTRUCTIONS Features: • Oil-Less Piston Compressor • Air Pressure Adjustment Knob • Air Pressure Gauge • Airbrush Holder • Cord Wrap • Protective Metal Case Λαβή / Handle ιακόπτη On/O • Pistol-Grip Filter Ατσάλινο κάλυ α (δεξιά) Έξοδο αέρα / Air outlet Μετρητή...
  • Page 3 The Pistol-Grip Filter is included with the Iwata Studio Series Silver Jet Compressor.
  • Page 4: Getting Started

    Screw the Pistol-Grip Filter onto the airbrush. Finger tighten only. (Image 1) a. The Pistol-Grip Filter fits Iwata airbrushes only. Image 1 Screw the airhose onto the Pistol-Grip Filter. (Image 2) a. Airhose fits Pistol-Grip Filter and Iwata airbrushes only. Image 2...
  • Page 5 GETTING STARTED (CONTINUED) Screw the airhose onto the compressor. (Image 3) a. Other brands of airbrush hoses will fit the compressor. (both have 1/4” threads) Press down on the airbrush trigger before turning on the unit. (Image 4) Image 3 Image 4...
  • Page 6 GETTING STARTED (CONTINUED) Plug the unit into a grounded wall outlet. Turn ON the unit by pressing the top side of the switch. (Image 5) Adjust the air pressure by turning the air adjustment knob to the desired pressure. Turn knob toward + to increase pressure and toward - to decrease pressure.
  • Page 7 GETTING STARTED (CONTINUED) When not using your airbrush, place the front of the airbrush into the holder. (Image 7) Image 7...
  • Page 8 GETTING STARTED (CONTINUED) When storing your Silver Jet, you can use the cord wrap feature around the base of the unit. (Image 8) 10. Note on voltage: If you bought the compressor in the country you’re going to use it, it’s completely ready to go. If you’re going to transfer the compressor to another country with a different voltage, you’ll need a plug adapter and the appropriate power converter.
