Iwata IS 50 Instruction Manual

Iwata IS 50 Instruction Manual

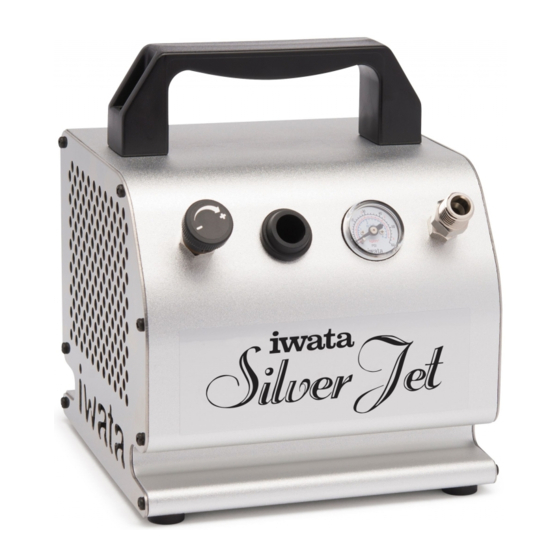

Oil-free mini compressor

Advertisement

Quick Links

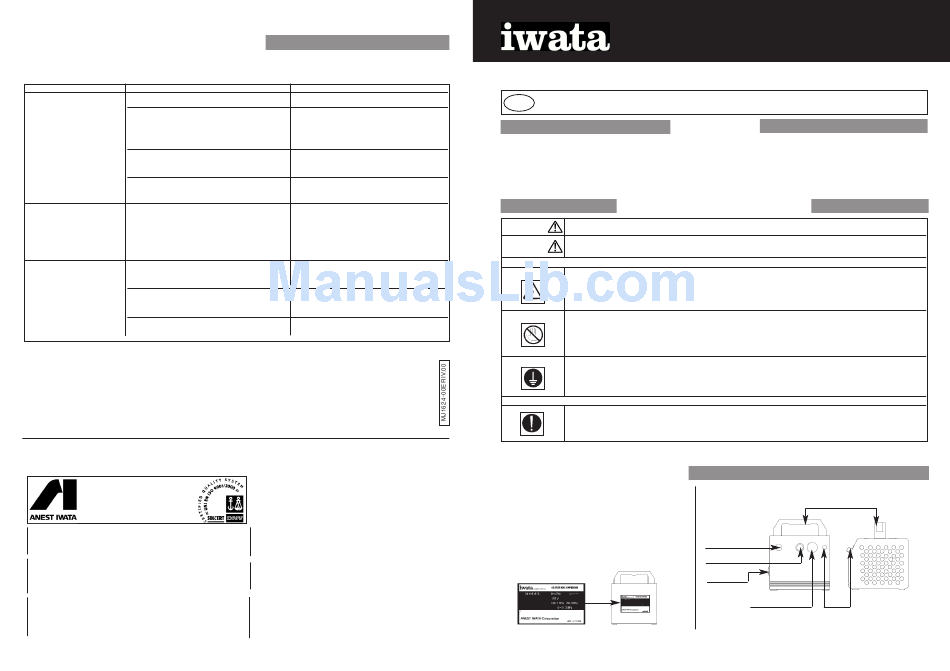

PROBLEMS AND REMEDIES
Parts marked with *, are particularly difficult for the operator to handle . If it is necessary to replace these parts, please con-
tact the retailer.
Problem
Cause
The power switch is off.
The engine does
not work.
Safety system is activated.
Reduced voltage.
Seizure of compressor
Pressure does not increase
Air escapes from each connection
or takes a long time to
or from hoses.
increase.
Incorrect positioning.
Presence of anomalous
noises or vibrations.
Worn internal parts of the compressor.
Loose parts.
ANEST IWATA Europe S.r.l.
46, Corso Vigevano 10155, Torino Italy
Direct Tel. +39 011 - 22 74 402
Fax +39 011 - 22 74 406
info@anest-iwataeu.com
www.anest-iwataeu.com
ANEST IWATA Italia S.r.l.
46, Corso Vigevano 10155, Torino (Italy)
Tel. diretto +39 011 - 24 80 868 - Fax: +39 011 - 85 19 44
info@anest-iwata.it
www.anest-iwata.it
ANEST IWATA Iberica
Calle de Les Teixidores, 3-5
08918 - Badalona (Barcelona)
Tel.:+34 933 20 59 93 - Fax.:+34 933 20 59 65
info@anest-iwata.es
www.anest-iwata.es
ANEST IWATA Europe s.r.l.
NIEDERLASSUNG DEUTSCHLAND
Mommsenstrasse 5, 04329 Leipzig
Telefon: +49 0341 241 4430 - Fax: +49 0341 241 443 29
info@anest-iwata.de
www.anest-iwata.de
Remedy
Switch the power switch on.
Switch power switch off, discharge air
pressure and switch on again after 15 min-
utes.
Contact local electricity company.
* Repair
Tighten or replace necessary parts.
Stabilise the 4 feet.
* Repair
Tighten them.
European Sales Branches:
ANEST IWATA Scandinavia
Ögärdesvägen 6C, 433 30 PARTILLE - Sweden
Tel. +46 (0)31 - 340 28 60 - Fax +46 (0)31 - 340 28 69
info@anest-iwata.se
www.anest-iwata.se
ANEST IWATA France
25 rue de Madrid - 38070 St Quentin Fallavier - France
Tél. +33 (0)4 - 74 94 59 69 - Fax +33 (0)4 - 74 94 34 39
info@anest-iwata.fr
www.anest-iwata.fr
ANEST IWATA U.K.
Unit 10 Little End Road - Eaton Socon
St. Neots - CAMBRIDGESHIRE
PE19 8JH
Tel.: +44 (0) 1480 405419 Fax: +44 (0) 1480 217610
enquiries@anest-iwata.co.uk
www.anest-iwata.co.uk
OIL-FREE MINI COMPRESSOR IS 50
Before use, adjustment or maintenance, it is important to read this instruction manual very carefully. This manual must be stored in
GB
a safe place for any future reference that may be necessary.
IMPORTANT
This product should be operated only by an adequately trained operator, for safe use and maintenance of the equipment. Any
misuse or handling other than those indicated in this Instruction Manual is not covered by guarantee. ANEST IWATA disclaims all
responsibility for any accident or damage caused by failure to observe the operational and safety procedures in this manual. In
the interest of user friendliness, this manual contains information in a brief and concise form.
For any additional information you may require regarding spray gun operations, or if any missing parts or any damage during
transportation is found, please contact your nearest ANEST IWATA Company (see last cover page).

IMPORTANT INFORMATION

WARNING
Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or loss of life.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or
CAUTION
property damage.
OTHER SAFETY SYMBOLS
INDICATES THAT ATTENTION MUST BE PAID TO...
A brief explanation is in the symbol or near to it.
This example indicates, "pay attention to any possible electrical discharge".
INDICATES SPECIFIC DANGEROUS OPERATIONS THAT MUST NOT BE CARRIED OUT
A brief explanation is in the symbol or near to it.
This example indicates, "do not touch".
INDICATES SPECIFIC IMPORTANT OPERATIONS THAT MUST BE CARRIED OUT
A brief explanation is in the symbol or near to it.
This example indicates, "ground the compressor".
SUPPLEMENTARY NOTES
IMPORTANT
Indicates necessary procedures that must be followed to ensure safe, correct and efficient use of the product.
ANEST IWATA will not accept responsibility for any damage or injury caused by failure to observe warnings and instruc-
tions contained within this instruction manual.
CHECKING THE PRODUCT
INSPECTION OF PRODUCT
Check that the model name you have purchased is
the same as that indicated on the plate, found on the
back of the compressor.
Ensure that the product has not been damaged during
transportation.
INSPECTION OF ACCESSORIES
Check that the following accessories are included:
Instruction manual_4 m spiral air hose_
moisture grip filter.
Distributed by: ANEST IWATA Corporation _ 3176,Shinyoshida-cho, Kohoku-ku, Yokohama, 223-8501 Japan_ Made in Taiwan
Instruction Manual
COMPONENT NAMES
Handle
Pressure regulator
knob
Airbrush holder
Power
Switch
Air
Pressure gauge
outlet
FRONT VIEW
SIDE VIEW
