POWER JET SERIES
IS-900, IS-925 and IS-975
A I R C O M P R E S S O R S

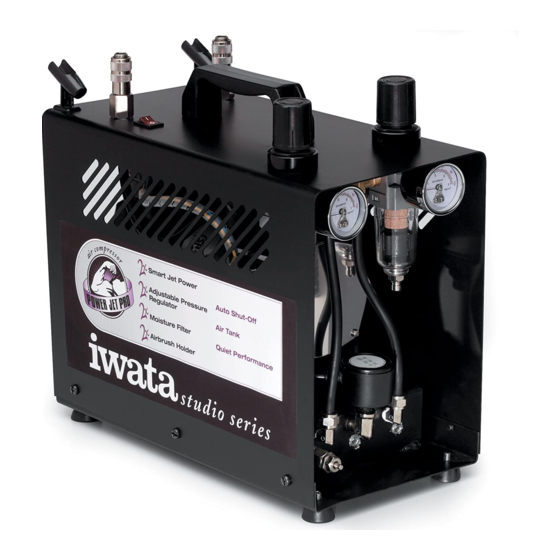

IWATA STUDIO SERIES POWER JET SERIES AIR COMPRESSORS — IS-900, IS-925 and IS-975
Congratulations on your new purchase! The Iwata Power Jet Series Air Compressors delivers quiet,
clean, pulse free air along with superb moisture separation and precise air pressure adjustment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Jet Series and is the answer not in the manual?

Questions and answers

Related Manuals for Iwata Power Jet Series

Summary of Contents for Iwata Power Jet Series

  • Page 1 IWATA STUDIO SERIES POWER JET SERIES AIR COMPRESSORS — IS-900, IS-925 and IS-975 Congratulations on your new purchase! The Iwata Power Jet Series Air Compressors delivers quiet, clean, pulse free air along with superb moisture separation and precise air pressure adjustment.
  • Page 3 EXPLODED DIAGRAM - POWER JET PRO IS-975 VOLTAGE - CAUTION READ CAREFULLY If you bought the compressor in the country you’re going to use it, it’s completely ready to go. If you’re going to transfer the compressor to another country with a different voltage, you’ll need a plug adapter and the appropriate power converter.
  • Page 4 EXPLODED DIAGRAM - POWER JET IS-900 VOLTAGE - CAUTION READ CAREFULLY If you bought the compressor in the country you’re going to use it, it’s completely ready to go. If you’re going to transfer the compressor to another country with a different voltage, you’ll need a plug adapter and the appropriate power converter.
  • Page 5 EXPLODED DIAGRAM - POWER JET LITE IS-925 VOLTAGE - CAUTION READ CAREFULLY If you bought the compressor in the country you’re going to use it, it’s completely ready to go. If you’re going to transfer the compressor to another country with a different voltage, you’ll need a plug adapter and the appropriate power converter.
  • Page 6 7. Quick Disconnect (QD) Adapters 8. Quick Disconnect (QD) Ports 9. Air Hose Adapters (See also www.iwata-medea.com and search for “How to set up your Power Jet Pro”) Set Up 1. Plug it in. 2. The coiled air hoses and male QD adapters come pre-assembled. Take the coiled air hoses and push the male QD adapter into the female QD...
  • Page 7 HOW TO SET UP YOUR POWER JET PRO (CONT’D) Things To Remember Extension Cords: Note: DO NOT use an undersized extension cord. Use only with Heavy Duty extension cord. QDs And Air Hoses: Note: If a leak is found later on, use a wrench to tighten the air hose to the adapter. Note: If using a different brand airbrush screw the appropriate adapter onto the air hose, then screw the airbrush into the adapter.
  • Page 8 Screw the other end of the air hose onto the airbrush. Note: If you’re using a brand of airbrush other than Iwata, use the appropriate adapter from the adapter kit. You might have to try them out to see which one is right.
  • Page 9 HOW TO SET UP YOUR POWER JET (IS 900) & POWER JET LITE (IS 925) (CONT’D) On the Power Jet Lite, the airbrush should fit into the black airbrush holder by placing the front end of the airbrush into the holder. If using a bottle feed airbrush with the bottle attached, put the back end of the airbrush into the holder.
  • Page 10 DRAINING THE TANK ON YOUR POWER JET SERIES AIR COMPRESSOR The air tank will collect moisture and will need to be drained. How often is based on the weather and how much humidity is in the air. Turn off the compressor.
  • Page 11 MAINTENANCE FOR ALL POWER JET SERIES AIR COMPRESSORS Releasing Built Up Moisture In The Moisture Trap • Release the water by pushing up on the drain valve located underneath the moisture trap’s clear bowl. • This will open the valve and drain off the collected moisture.
  • Page 12 If the air leak is in the middle of a hose the hose will need to be replaced. For all other problems or issues call or contact Iwata-Medea at (503) 253-7308 or email us at: info@iwata-medea.com.
  • Page 13 Yes, it’s a feature! You don’t have to unplug the compressor when you want it to stop, just flip the switch. Auto-Shut off This is the Smart part of the Power Jet series. Thermal Overload Switch If the compressor ever decides to overheat, the Thermal Overload Switch will turn off your compressor. If this switch cuts in it’s saving your compressor.
  • Page 14 Genuine Iwata Copyright © 2010 Iwata-Medea Inc. All rights reserved. The Iwata-Medea logo, Iwata-Medea®, Iwata Eclipse™, Iwata Revolution™, Iwata Kustom™, Iwata Micron™, Sprint Jet™, Smart Jet™, Power Jet Pro™, Power Jet Lite™, Medea Super Lube ™, Pistol Grip Filter™, and all products denoted with ®...
  • Page 16 — w w w . I W A T A M E D E A . c o m — Iwata-Medea, Inc. • 1336 N. Mason St. • Portland, Oregon 97217 tel: (503) 253-7308 • fax: (503) 253-0721 • info@iwata-medea.com...

This manual is also suitable for:

Power jet is-900Power jet lite is-925Power jet is-975
