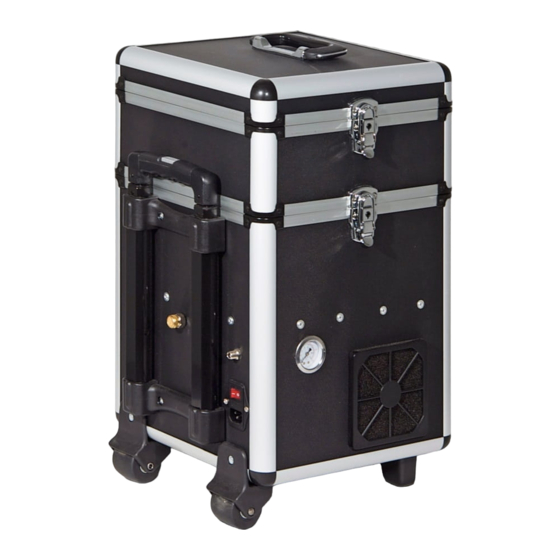

IWATA STUDIO SERIES MAXX JET AIR COMPRESSOR — IS-1000
Congratulations on your new purchase! The Iwata Maxx Jet Air Compressor delivers quiet, clean,
pulse free air along with superb moisture separation and precise air pressure adjustment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STUDIO SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Iwata STUDIO SERIES

  • Page 1 A I R C O M P R E S S O R IWATA STUDIO SERIES MAXX JET AIR COMPRESSOR — IS-1000 Congratulations on your new purchase! The Iwata Maxx Jet Air Compressor delivers quiet, clean, pulse free air along with superb moisture separation and precise air pressure adjustment.
  • Page 3: Need Assistance

    NEED ASSISTANCE If you have any issues or warranty service questions, contact your local ANEST IWATA a liate before returning to your place of purchase. ANEST IWATA-MEDEA, INC. ANEST IWATA CORPORATION ANEST IWATA AUSTRALIA PTY LTD. Portland, Oregon U.S.A. Yokohama, Japan Mt.
  • Page 4: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 6 EXPLODED DIAGRAM (CONT’D)
  • Page 7 • A powerful 1/6 hp, oil-less, two pole motor • Runs at twice the RPMs of the Iwata Power Jet • The Maxx Jet powers Iwata’s Eclipse G-3, G-5, G-6 and light use with the RG-3 • Dual manifold air regulator with airbrush and spray gun holders •...
  • Page 8: Getting Started

    Take the spray gun hose (large fittings on both ends) and screw one end to the second output on the air regulator. Now you can screw your Iwata airbrush onto the airbrush hose and your Iwata G-3, G-5, G-6 or RG-3 onto the spray gun hose.
  • Page 9 GETTING STARTED (CONT’D) 10. Place your airbrush on the airbrush holder and your spray gun onto the spray gun holder. 11. Plug the compressor into a grounded wall outlet. (Avoid using an extension cord.) 12. Turn the compressor ON by pressing down the on/off switch back of the unit. (You will see the button light up.) A.
  • Page 10: Maintenance

    MAINTENANCE Remove The External Air Intake Filter • Use a crescent wrench (or 16 mm wrench) adjusted to fit the flat faces of the external air filter mounted to the back of the case. • With the wrench fitted to air filter unscrew the external air filter by turning the wrench counter-clockwise until it is unthreaded from the case. •...
  • Page 11 MAINTENANCE (CONT’D) Changing The Air Intake Filter • If the external air intake filter is clogged with debris and cannot be cleaned it will need to be replaced. • Use a crescent wrench (or 16 mm wrench) adjusted to fit the flat faces of the external air filter mounted to the back of the case. •...
  • Page 12: Ending A Session

    MAINTENANCE (CONT’D) The air tank will collect moisture and will need to be drained. How often is based on the weather and how much humidity is in the air. Turn off the compressor. Depressurize the tank. (Release remaining air in tank.) * Air may be released through the airbrush or through the moisture trap pressure relief valve.
  • Page 13: Troubleshooting

    Both methods provide an airtight seal. If the air leak is in the middle of a hose the hose will need to be replaced. For any other problems or issues call or contact ANEST IWATA-MEDEA at 503-253-7308 or email at: info@iwata-medea.com...
  • Page 14: Warranty

    Genuine Iwata ©2016 Anest Iwata-Medea, Inc. All rights reserved. The Anest Iwata-Medea logo, Anest Iwata-Medea and Iwata Studio Series are registered trademarks of Anest Iwata-Medea, Inc. Iwata Custom Micron, Iwata Hi-Line and Iwata Eclipse are trademarks of ANEST IWATA Corporation. Iwata, the Iwata logo and NEO for Iwata are registered trademarks of ANEST IWATA Corporation. All other trademarks are the properties of their respective owners.
