Removing the Front Bezel
To remove the front bezel follow these steps:
CAUTION: Do not attempt to operate the workstation with the
front bezel removed. The bezel is needed to ensure
proper air flow for system cooling.
1.
Release the front bezel by pushing in the two locking tabs at the front of the
system unit as shown in Figure 3.
2.
Swing the panel down and pull up slightly so the two guide pins on the bottom
clear their guides and lay the front bezel down.

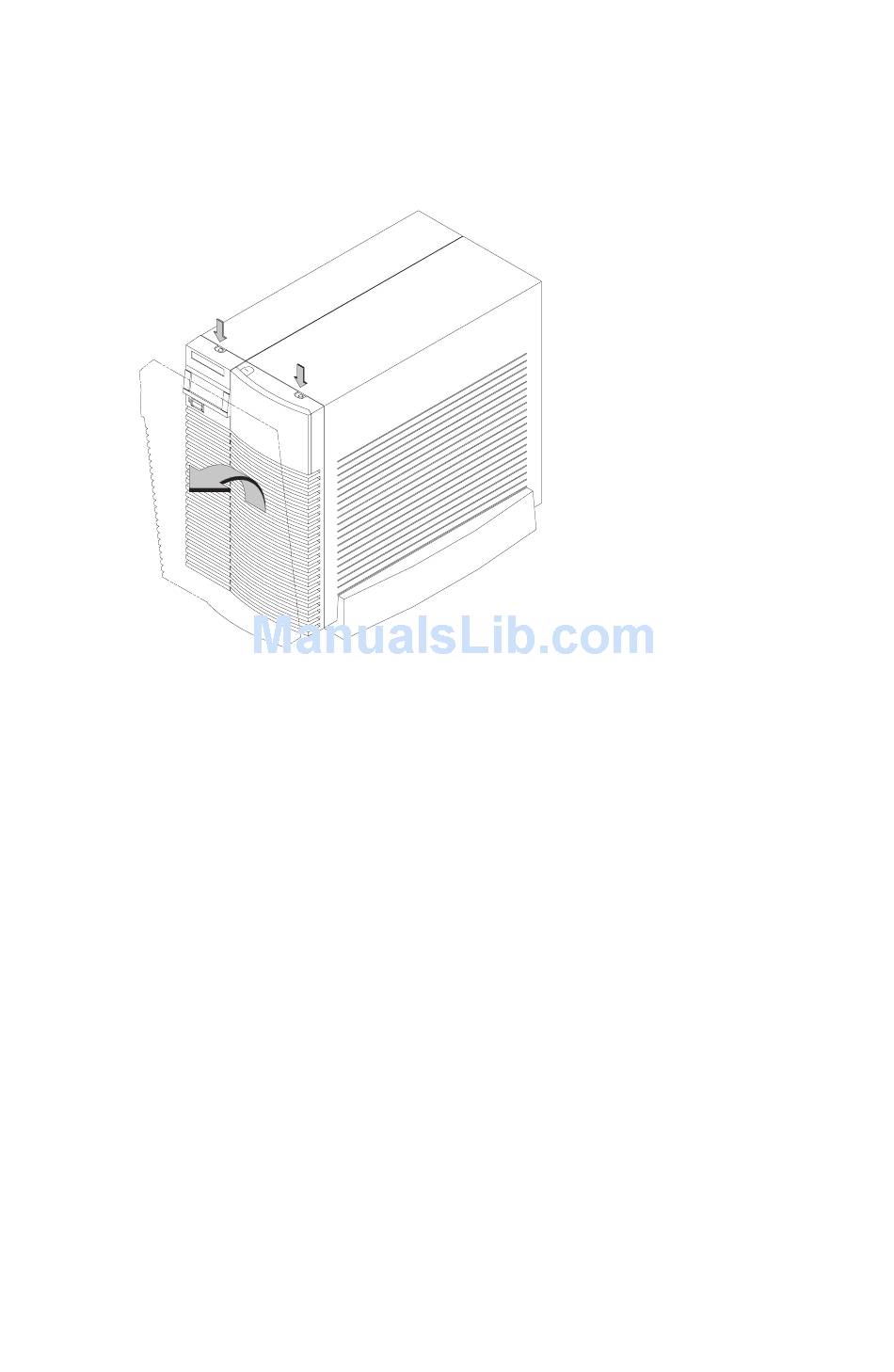

Figure 3. Removing the Front Bezel
11
