HP Visualize J2240 Upgrade Instructions page 38

J class workstations

Hide thumbs Also See for Visualize J2240:

Table of Contents

11.

Slide the J2240 PCI/EISA Assembly into the system unit and secure it with the

four captive screws. See Figure 20. You may need to tip or rotate the PCI/EISA

assembly slightly to get it past the system unit tie–down point.

CAUTION: Do Not install the J2240 PCI/EISA Assembly until

you have replaced the J282 Main Tray Assembly

with the new J2240 Main Tray Assembly or you

will damage connectors on both assemblies.

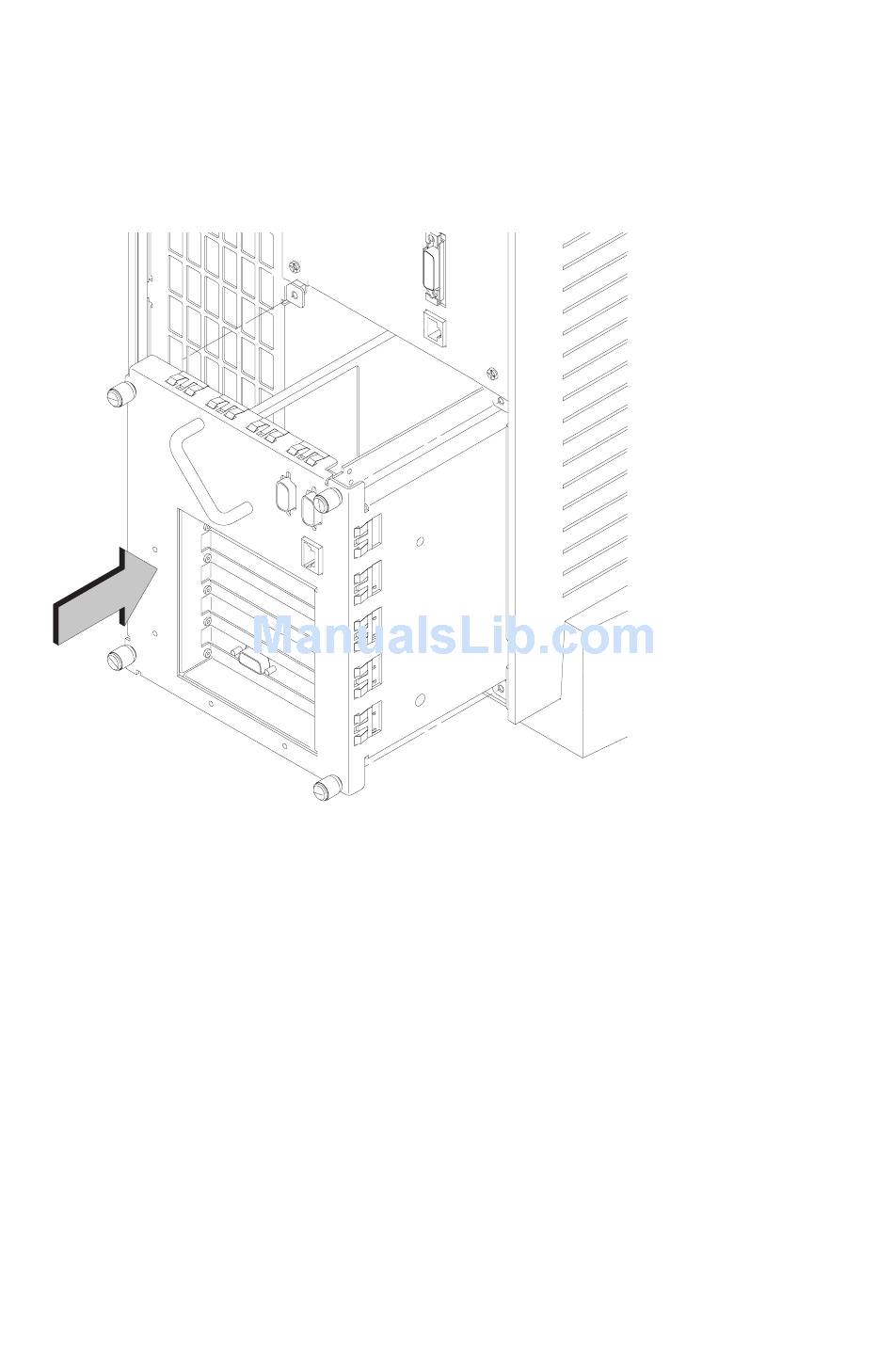

Figure 20. Replacing J2240 PCI/EISA Assembly

NOTICE:

You may need to exert strong pressure to fully seat

the J2240 PCI/EISA Assembly
