Removing the J282 Main Tray Assembly

To remove the J282 Main Tray Assembly (CPU Tray) follow these steps:

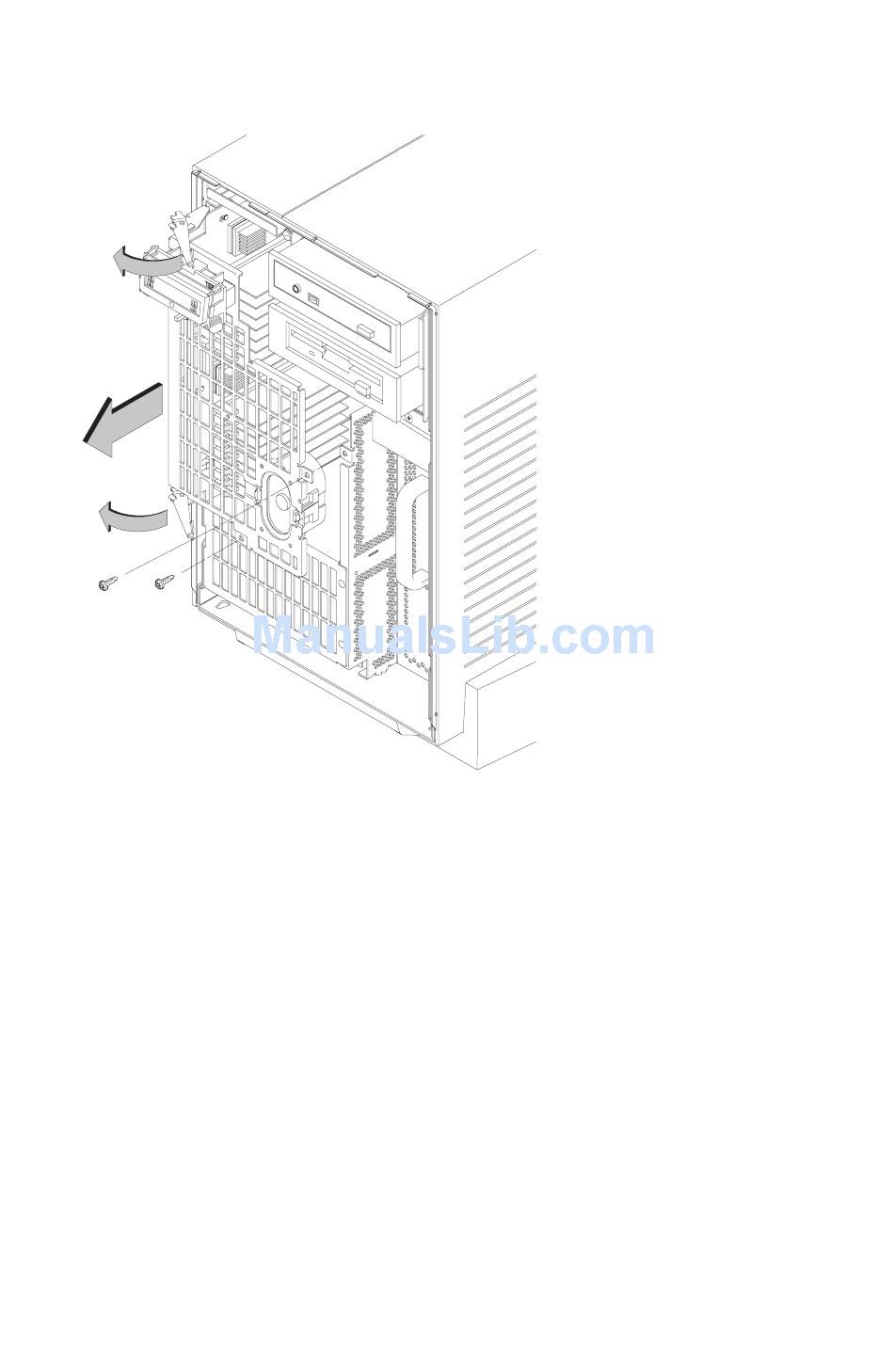

Figure 4. Removing the Main Tray Assembly

Remove the two screws in the center of the J282 Main Tray Assembly using a

#20 Torx driver.

Pull the ejector handles on the left side, top and bottom of the Main Tray

Assembly to release the board assembly from the internal connectors. Refer to

Figure 4.
