Installing the PCI/EISA Assembly

Move your GSC/EISA cards from your J282 EISA Assembly to your J2240

PCI/EISA Assembly and install the J2240 PCI/EISA Assembly by using the

following steps:

Place both of the assembly units side by side and rotate them 90 degrees

clockwise and place on a flat surface, as shown in Figure 13.

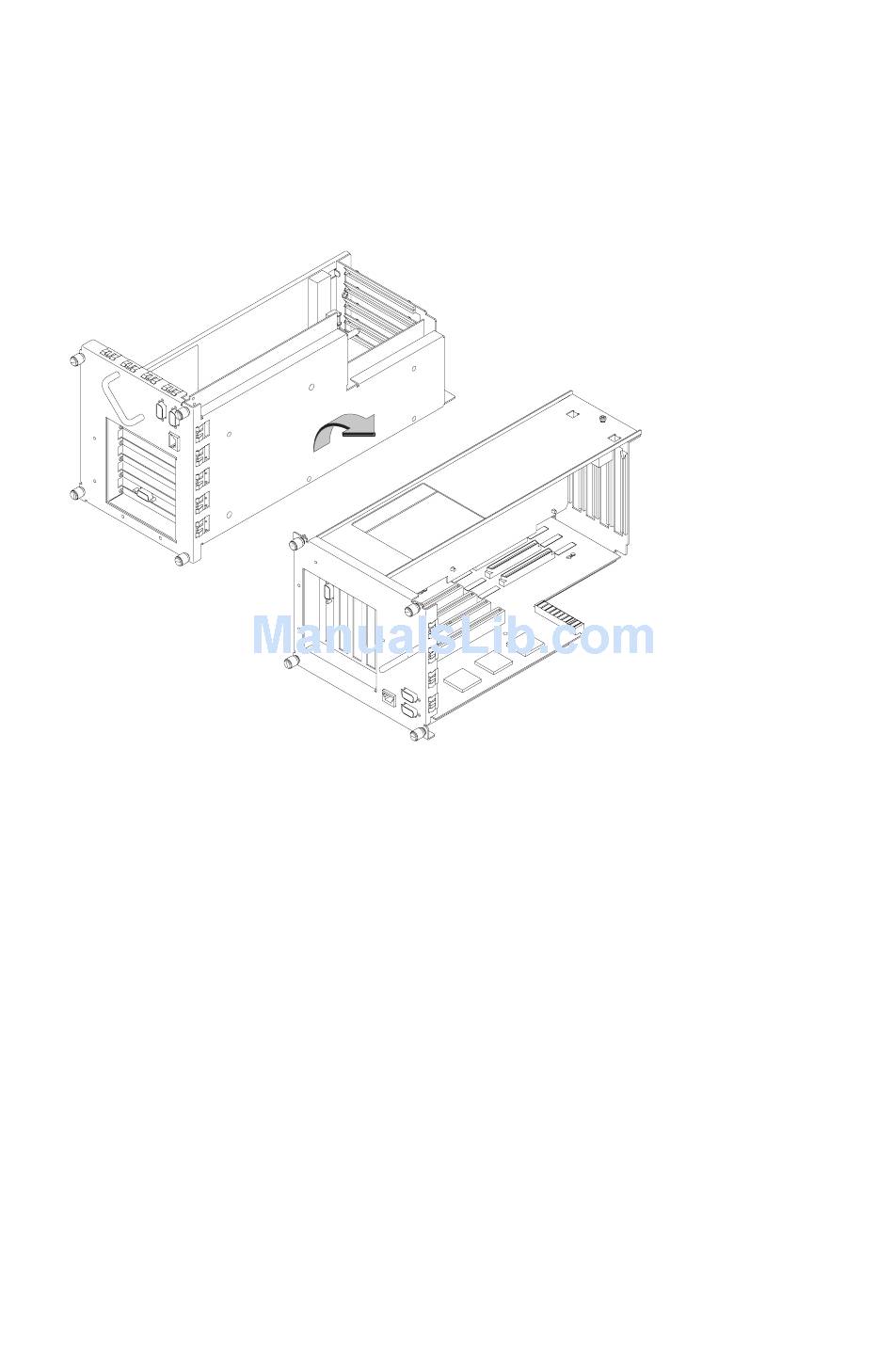

Rotating the PCI/EISA Assembly for Installation

Figure 13.
