Installing A Memory Module - HP Visualize c200 Install Manual

4 To install a memory module, close the ejector tabs on each side of the memory
5 Press firmly and evenly on the memory module to ensure that it is completely
White Ejector Tab

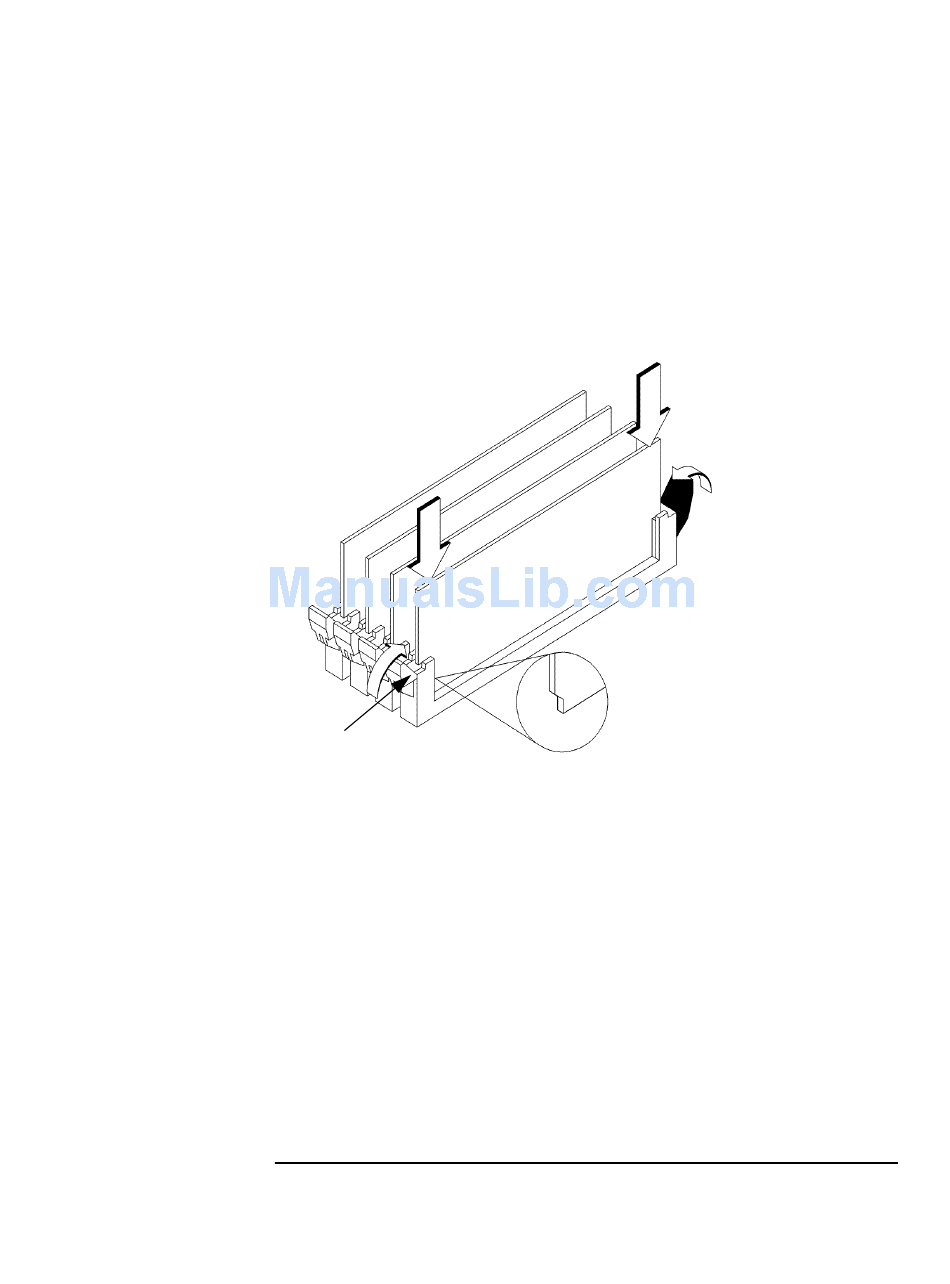

Figure 7

Installing a Memory Module

Transfer Memory Modules From the Old CPU Board to the New CPU Board
connector and line the memory module up with the guides, as shown in Figure 7.
Make sure that the notched end of the memory module is toward the white ejector
tab as shown in Figure 7.
seated.
