Installing the C360 CPU Board
Installing the C360 CPU Board

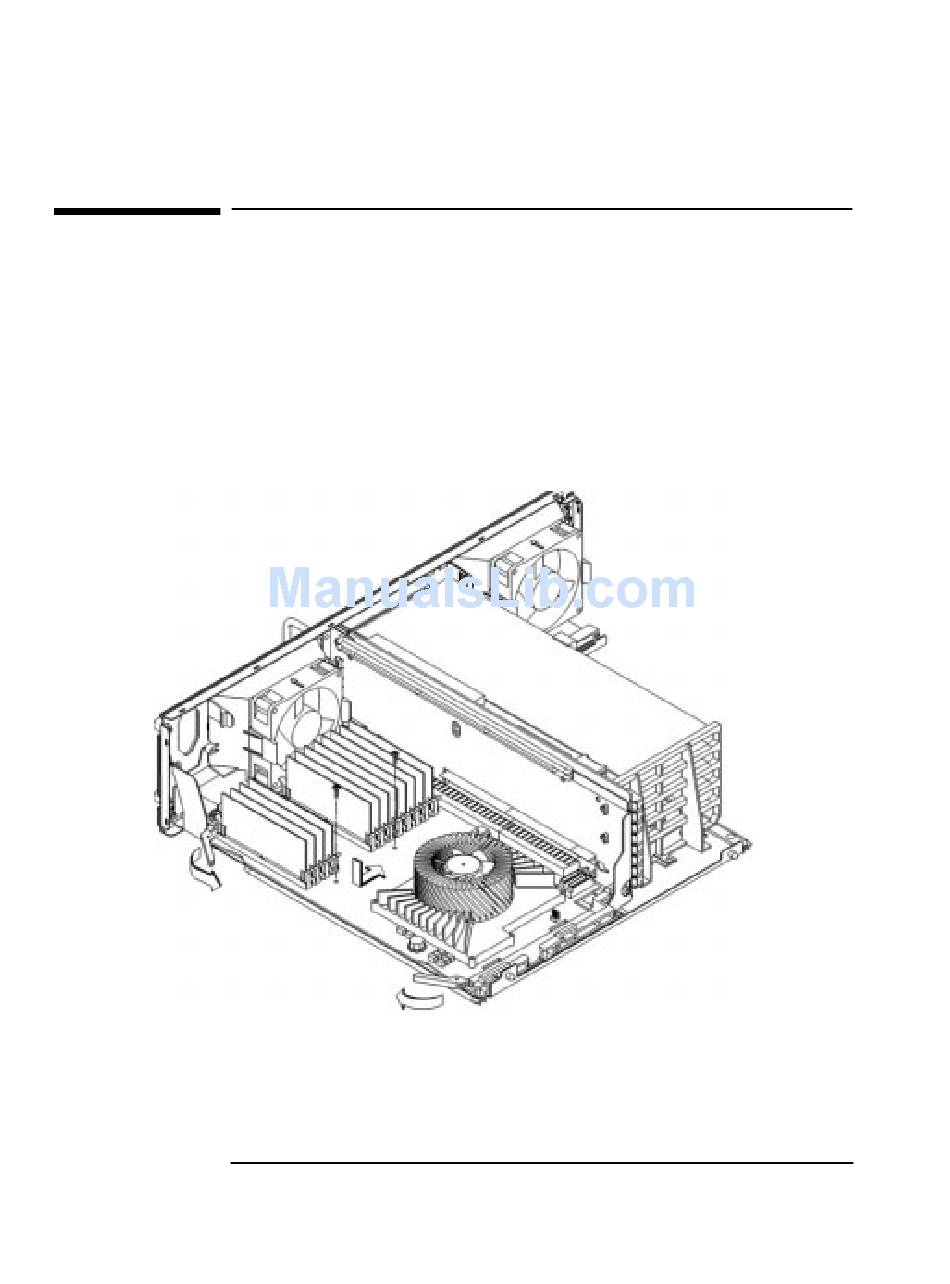

Figure 4 Installing the CPU Board (C360)
10
Perform the following steps to install the C360 CPU board into the system
unit:
1 Be sure to support the board under the heat sink or you will damage the
CPU board. Set the CPU board down into the main tray. Slide the CPU
board in approximately one inch, to install it.
2 Push the two ejector handles at the same time, as shown in Figure 4.
3 Replace the two CPU board retaining screws, as shown in Figure 4.
