Installing the Main Tray Assembly
Installing the Main Tray Assembly
Install the C360 main tray assembly, as described in the following proce-
dure:
1 Align the main tray assembly with the chassis and slide it into place, as shown in
Figure 8
2 Slide the main tray in until you feel it make contact with the internal connectors.
3 Push firmly and evenly on the main tray assembly to make sure that all connec-
4 Start all five thumb screws loosely, then tighten them firmly. See Figure 8.
NOTICE: To maintain regulatory agency compliance, verify that the main tray is
fully seated and all five thumb screws are completely tightened.
14

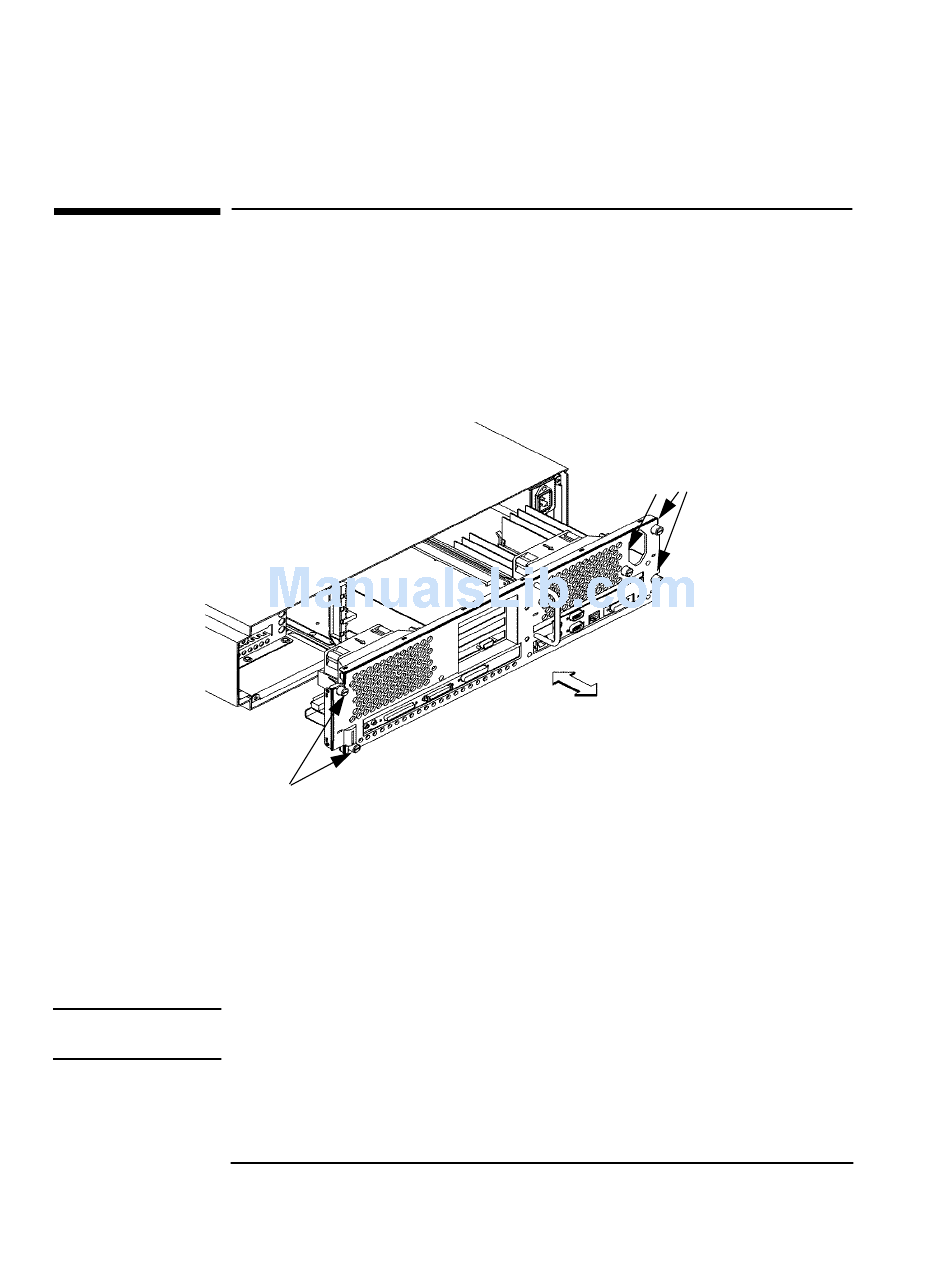

Figure 8.
Thumb Screws
Installing the New Main Tray Assembly
tors are fully seated.
Thumb
Screws
