RavenC160-180.FB 16 Wed Jul 10 14:00:20 1996

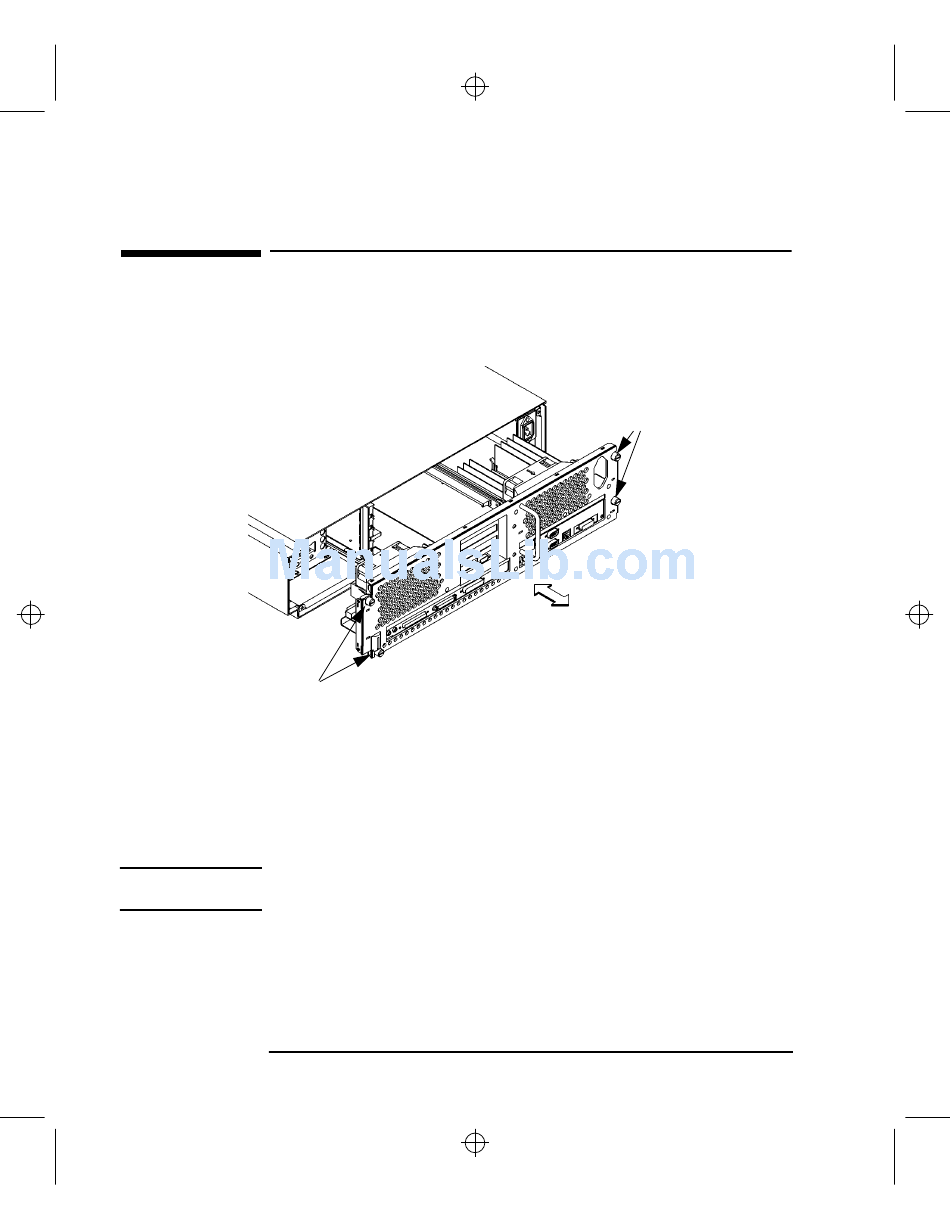

Figure 9
NOTICE:

Replacing the Main Tray Assembly

Replacing the Main Tray Assembly
1 Align the main tray assembly with the chassis and slide it into place, as shown in
Figure 9.
Thumb Screws
Replacing the Main Tray Assembly
2 Slide the main tray in until you feel it make contact with the internal connectors.
3 Push firmly and evenly on the main tray assembly to make sure that all connec-
tors are fully seated.
4 Loosely start all four thumb screws, then tighten them firmly. See Figure 9.
To maintain regulatory agency compliance, verify that the main tray is
fully seated and all four thumb screws are completely tightened.
16
Thumb
Screws
