Installing the Model C180 CPU Board
Installing the Model C180 CPU Board
1 Line up the CPU board with the main tray guides, as shown in Figure 8.

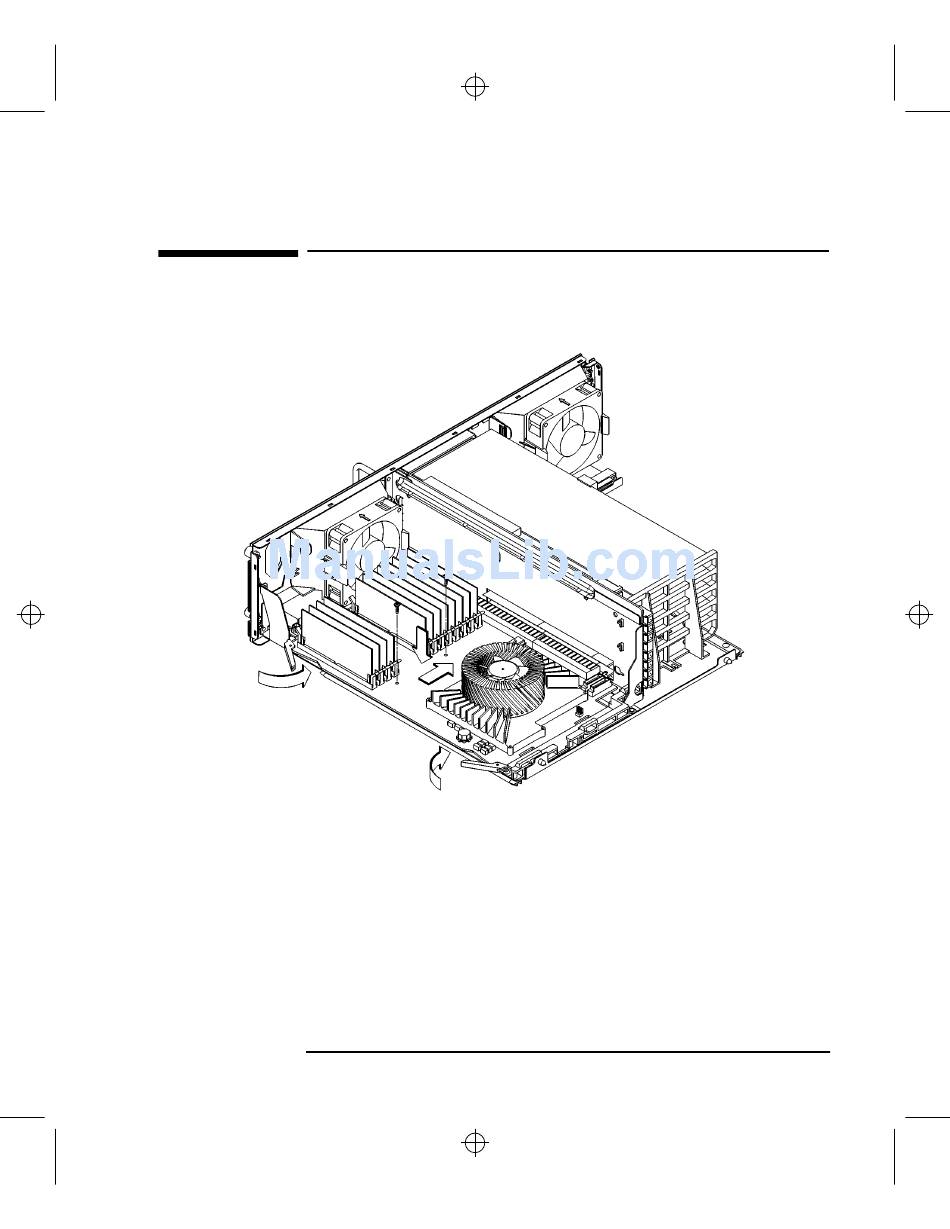

Figure 8 Installing the New CPU Board
2 Lower the CPU onto the guides, as shown in Figure 8.
3 Pull the two ejector handles so that they are fully open.
4 Slide the CPU board in until it starts to make contact with the backplane.
5 Push on both ejector handles evenly and firmly to seat the CPU board in the back-
plane connectors.
6 Replace the two CPU retaining screws, as shown in Figure 8.
