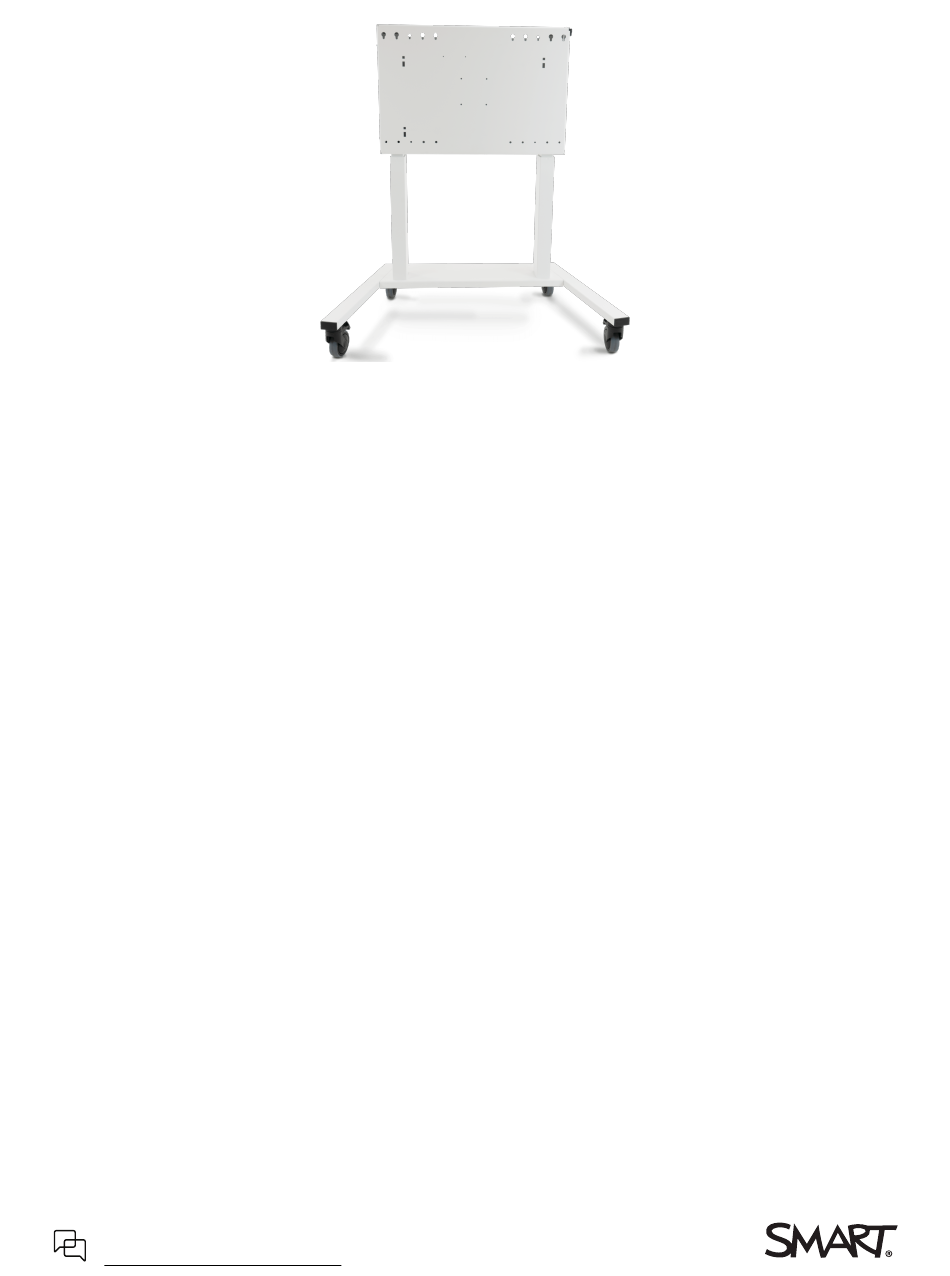

- Page 1 SMART electric height-adjustable mobile stand User guide FSE-400 Was this document helpful? smarttech.com/docfeedback/171370...
- Page 2 © 2019–2022 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.
-
Page 3: Important Information
Use the FSE-400 stand only with SMART Board interactive displays with diagonal measurements that range from 65" (163 cm) to 86" (219 cm) and that weigh between 92.4 lb. (42 kg) and 200 lb. - Page 4 Do not use the stand if the power cord is damaged. Replace a damaged power cord only with a new cord and power bar provided by SMART Technologies or a qualified service technician. Do not modify or make changes to the control unit or hand switches.
- Page 5 Important information Do not open the control box. There is danger of electric shock. Allow only qualified service technicians to service the stand. Allowing anyone else to service the stand will void the warranty/guarantee. Refer all servicing to qualified service personnel. Servicing is required when the stand has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the stand, the stand has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 6: Table Of Contents
Contents Important information Chapter 1 About the stand Features Components Accessories More information Chapter 2 Using the stand Moving the stand Raising and lowering the stand Chapter 3 Troubleshooting the stand Resolving general issues smarttech.com/kb/171370... -
Page 7: Chapter 1 About The Stand
Features Components Control panel Accessories More information Features The SMART electric height-adjustable mobile stand has the following features: Feature Description Powered height With its 26" (66 cm) of electric-powered height adjustment, you can easily adjustment adjust the height of a mounted display with the press of a button. -

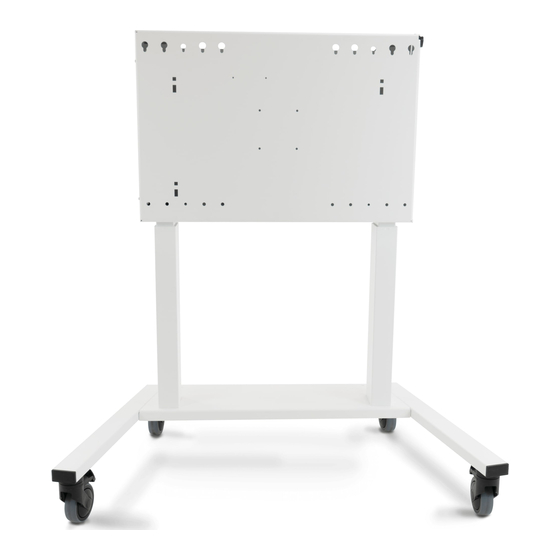

Page 8: Components
Chapter 1 About the stand Components The stand consists of the following components: Description Mounting holes Control panel Locking casters [Not shown] Storage cabinet (rear surface) [Not shown] Surge-protected power bar (mounted inside the cabinet) smarttech.com/kb/171370... -
Page 9: Accessories
Chapter 1 About the stand Control panel You can raise and lower the stand with the control panel. It’s located on the right side of the stand, but you can remove and attached it to a mounted display. See the illustrated installation instructions for information on how to move the control panel. -
Page 10: More Information
Chapter 1 About the stand More information See the following resources for more information: FSE-400 specifications: smarttech.com/kb/171386 FSE-400 illustrated installation instructions: smarttech.com/kb/171362 These documents are available in the Support section of the SMART website: smarttech.com/support. smarttech.com/kb/171370... -
Page 11: Chapter 2 Using The Stand
Chapter 2 Using the stand Moving the stand Raising and lowering the stand Calibrating the stand Resetting the stand Raising and lowering the stand Moving the stand Warning Do not use the handles to lift the stand. Do not move the stand while external cables are connected or when the power is on. ... -
Page 12: Raising And Lowering The Stand
Chapter 2 Using the stand 8. After the stand is moved, flip the caster brakes down to lock them and secure the stand in place. 9. Connect the power cable to the outlet and secure any cables that run along the floor. Raising and lowering the stand Warnings ... - Page 13 Chapter 2 Using the stand To factory reset the stand 1. Connect the stand to a power outlet. 2. Press the Down button and lower the stand to the lowest position. 3. Press the Down button for five seconds and then release it. The stand moves up and down 1 cm.
-
Page 14: Chapter 3 Troubleshooting The Stand
