SMART Height-Adjustable Wall mount (HAWM-UX/UF Integration And Cabling Manual

Height ­adjustable wall mount for smart board 600 and 800 interactive whiteboard projector systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

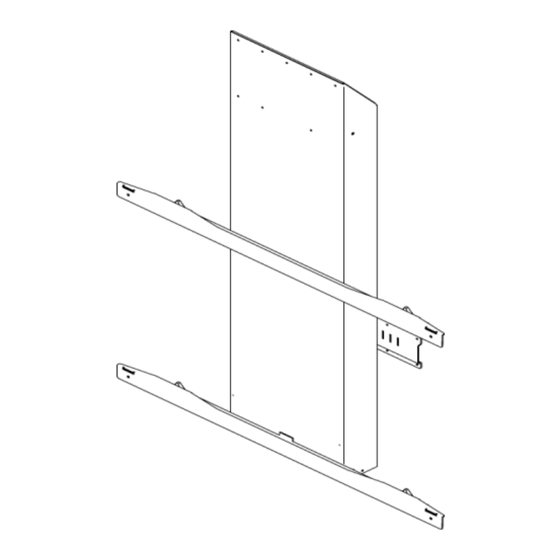

SMART
Height­Adjustable Wall
Mount (HAWM-UX/UF)
Integration and Cabling
Guide
For SMART Board™ 600 and 800 interactive whiteboard
projector systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART Height-Adjustable Wall mount (HAWM-UX/UF and is the answer not in the manual?

Questions and answers

Related Manuals for SMART SMART Height-Adjustable Wall mount (HAWM-UX/UF

Summary of Contents for SMART SMART Height-Adjustable Wall mount (HAWM-UX/UF

  • Page 1 SMART Height­Adjustable Wall Mount (HAWM-UX/UF) Integration and Cabling Guide For SMART Board™ 600 and 800 interactive whiteboard projector systems...
  • Page 2 Product Registration If you register your SMART product, we’ll notify you of new features and software upgrades. Register online at www.smarttech.com/registration. Keep the following information available in case you need to contact SMART Technical Support. Serial Number: ___________________________________________________ Date of Purchase: ___________________________________________________ FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the...

  • Page 3: Table Of Contents

    Contents Product Registration B Contents i Best practices for cabling your HAWM-UX/UF............1 Introduction ..................... 1 Best practices for cabling................2 Customizing your cables................. 4 Cabling an 885ix system to a HAWM-UX/UF............5 Introduction ..................... 5 Mounting your HAWM-UX/UF mobility switch ..........6 Placing cables for HAWM-UX/UF-mounted components .......
  • Page 4 CON T EN TS Placing cables for HAWM-UX/UF-mounted components ......54 Placing cables for other components............58 Cabling a 600i3 or D600i3 system to a HAWM-UX/UF ........65 Introduction ....................65 Mounting your HAWM-UX/UF mobility switch ..........66 Placing cables for remotely mounted components ........68 Index ........................

  • Page 5: Best Practices For Cabling Your Hawm-Ux/Uf

    Chapter 1 Best practices for cabling your HAWM-UX/UF Introduction ..................... 1 Best practices for cabling................1 Customizing your cables................. 4 Introduction Your SMART HAWM-UX/UF Height-Adjustable Wall Mount (HAWM-UX/UF) is an easy-to-adjust platform for connecting the components of your SMART Board™ interactive whiteboard system.

  • Page 6: Best Practices For Cabling

    CH A P T E R 1 – B EST PRACTI CE S FOR C A B L I NG Y O U R H A W M - U X / U F Best practices for cabling Use the best practices in this section when placing cables for any type of interactive whiteboard system mounted on a HAWM-UX/UF.

  • Page 7: Best Practices For Cabling Your Hawm-Ux/Uf

    CH A P T E R 1 – B EST PRACTI CE S FOR C A B L I NG Y O U R H A W M - U X / U F Mount your peripheral devices to a permanent location near the HAWM-UX/UF. If the peripheral device moves or can move, it can cause cable strain if the device is moved too far from and interferes with the HAWM-UX/UF.

  • Page 8: Customizing Your Cables

    CH A P T E R 1 – B EST PRACTI CE S FOR C A B L I NG Y O U R H A W M - U X / U F Customizing your cables Cables supplied by SMART for connecting your projector to the extended control panel (ECP) or interactive whiteboard are long enough to accommodate the additional distances your HAWM-UX/UF requires.

  • Page 9: Cabling An 885Ix System To A Hawm-Ux/Uf

    Chapter 2 Cabling an 885ix system to a HAWM-UX/UF Introduction ..................... 5 Mounting your HAWM-UX/UF mobility switch ..........6 Placing cables for HAWM-UX/UF-mounted components ....... 7 Placing cables for other components............13 Introduction SMART Board 885ix interactive whiteboard systems always include a SMART UX60 ultra-short-throw projector and an extended control panel (ECP) located on the interactive whiteboard.

  • Page 10: Mounting Your Hawm-Ux/Uf Mobility Switch

    CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F Mounting your HAWM-UX/UF mobility switch The mobility switch controls the vertical movement of the HAWM-UX/UF and your interactive whiteboard system.

  • Page 11: Placing Cables For Hawm-Ux/Uf-Mounted Components

    CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F 3. Secure the mobility switch cable using a Phillips® No. 2 screwdriver and the two screws listed inside the HAWM-UX/UF installation guide.
  • Page 12 CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F Using the SMART UX60 projector connection panel for HAWM-UX/UF-mounted components To access the projector connection panel and wire management clip, remove the input/output cover on the left side of the projector and remove the cable covers.
  • Page 13 CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F Using the SMART UX60 projector ECP for HAWM-UX/ UF-mounted components The following diagram and list identify the ECP ports that connect to HAWM-UX/UF-mounted components.
  • Page 14 10 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F Connecting the SMART UX60 projector’s ECP harness cable The ECP harness cable controls all signals and commands sent between the ECP and the projector.
  • Page 15 11 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F Connecting the SMART UX60 projector to the wire management bundle (WMB) SMART recommends that when the WMB isn’t in use, you use the WMB’s magnetic...
  • Page 16 12 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F 3.
  • Page 17 13 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F Number Function RCA composite video input jack (for peripheral devices such as a...
  • Page 18 14 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F Connecting your SMART UX60 projector to the pen tray audio jack The audio and power jacks are located beside each other on the back of the pen tray.
  • Page 19 15 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F 2.

  • Page 20: Placing Cables For Other Components

    16 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F Placing cables for other components Cables for peripheral devices connected to the projector but not mounted on the HAWM-UX/UF are at the greatest risk of damage, because they shift as the...
  • Page 21 17 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F Using the SMART UX60 projector connection panel for other components The following diagram and list identify the projector connection panel connections to...
  • Page 22 18 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F NOTES •...
  • Page 23 19 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F To connect your projector 1.
  • Page 24 20 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F 5.
  • Page 25 21 | CH A P T E R 2 – C A B L I N G A N 8 85 i x S Y S T E M T O A H A W M - U X /U F...

  • Page 26: Introduction

    Chapter 3 Cabling an 880i4 or 885i4 system to a HAWM-UX/UF Introduction ....................24 Mounting your HAWM-UX/UF mobility switch ..........24 Placing cables for HAWM-UX/UF-mounted components ......26 Placing cables for other components............35 Introduction The SMART Board 880i4 and 885i4 interactive whiteboard systems include a SMART UF65 high-offset projector or SMART UF65w projector high-offset widescreen projector, both with a 3D projection option and an extended control panel (ECP) that’s located on the interactive whiteboard.
  • Page 27 22 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F Mounting your HAWM-UX/UF mobility switch The mobility switch controls the vertical movement of the HAWM-UX/UF and your...
  • Page 28 23 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F 3.
  • Page 29 24 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F Placing cables for HAWM-UX/UF-mounted components To prevent cable friction, SMART recommends that you first place the cables that...
  • Page 30 25 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F Using the SMART UF65 and SMART UF65w projector ECP for HAWM-UX/UF-mounted components The following diagram and list identify the ECP ports that connect to...
  • Page 31 26 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F Connecting your SMART UF65 or SMART UF65w projector’s ECP harness cable The ECP harness cable controls all signals and commands sent between the ECP...
  • Page 32 27 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F Connecting peripheral devices to the RCA connector pod The RCA connector pod enables you to connect DVD/Blu-ray players and other devices to our interactive whiteboard system using the three RCA jacks.
  • Page 33 28 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F Connecting your SMART UF65 and SMART UF65w projector to the pen tray audio jack The audio and power jacks are located beside each other on the back of the pen tray.
  • Page 34 29 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F 4.
  • Page 35 30 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F Placing cables for other components Cables for peripheral devices connected to the projector but not mounted on the HAWM-UX/UF are at the greatest risk of damage, because they shift as the...
  • Page 36 31 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F Remove the input/output cover on the left side of the projector and remove the cable covers to access the projector connection panel and wire management clip .
  • Page 37 32 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F Using the SMART UF65 and SMART UF65w projector ECP for other components The following diagram and list identify the ECP connections to components that aren’t...
  • Page 38 33 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F To connect your projector 1.
  • Page 39 34 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F 6.
  • Page 40 35 | CH A P T E R 3 – C ABL IN G AN 8 80 i 4 O R 8 8 5 i 4 S Y S T E M T O A H A W M - U X / U F...

  • Page 41: Cabling A 685Ix Or D685Ix System To A Hawm-Ux/Uf

    Chapter 4 Cabling a 685ix or D685ix system to a HAWM-UX/UF Introduction ....................37 Mounting your HAWM-UX/UF mobility switch ..........37 Placing cables for HAWM-UX/UF-mounted components ......39 Placing cables for other components............46 Introduction SMART Board 685ix and D685ix interactive whiteboard systems always include a SMART UX60 ultra-short-throw projector and an extended control panel (ECP) located on the interactive whiteboard.
  • Page 42 36 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F Mounting your HAWM-UX/UF mobility switch The mobility switch controls the vertical movement of the HAWM-UX/UF and your...
  • Page 43 37 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F 3.
  • Page 44 38 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F Placing cables for HAWM-UX/UF-mounted components To prevent cable friction, SMART recommends that you first place the cables that...
  • Page 45 39 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F Number Function 3.5 mm audio output connector (recommended for SBA-L speakers) 4-pin power mini-DIN 5V/2A connector (reserved for ECP harness cable)
  • Page 46 40 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F Number Function USB A jack (recommended location for interactive whiteboard USB...
  • Page 47 41 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F 3.
  • Page 48 42 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F 2.
  • Page 49 43 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F 5.
  • Page 50 44 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F 2.

  • Page 51: Placing Cables For Other Components

    45 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F Placing cables for other components Cables for peripheral devices connected to the projector but not mounted on the HAWM-UX/UF are at the greatest risk of damage, because they shift as the...
  • Page 52 46 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F Using the SMART UX60 projector connection panel for other components The following diagram and list identify the projector connection panel connections to...
  • Page 53 47 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F NOTES •...
  • Page 54 48 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F Connecting the power, network and other peripheral device cables to your projector All cables that connect to your HAWM-UX/UF projector’s connection panel require a...
  • Page 55 49 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F 4.
  • Page 56 50 | CH A P T E R 4 – C A B L I N G A 6 8 5 i x O R D 6 8 5 i x S Y S T E M T O A H A W M - U X / U F Connecting composite video and USB devices to your projector’s ECP The ECP has three USB A jacks and one composite video RCA jack with associated...

  • Page 57: Cabling A 600I4 Or D600I4 System To A Hawm-Ux/Uf

    Chapter 5 Cabling a 600i4 or D600i4 system to a HAWM-UX/UF Introduction ....................53 Mounting your HAWM-UX/UF mobility switch ..........53 Placing cables for HAWM-UX/UF-mounted components ......55 Placing cables for other components............60 Introduction SMART Board 600i4 and D600i4 interactive whiteboard systems include a SMART UF65 high-offset projector or SMART UF65w high-offset widescreen projector, both with a 3D projection option and an extended control panel (ECP) that’s located on the interactive whiteboard.
  • Page 58 52 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F Mounting your HAWM-UX/UF mobility switch The mobility switch controls the vertical movement of the HAWM-UX/UF and your...
  • Page 59 53 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F 3.
  • Page 60 54 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F Placing cables for HAWM-UX/UF-mounted components To prevent cable friction, SMART recommends that you first place the cables that...
  • Page 61 55 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F Using the SMART UF65 and SMART UF65w projector ECP for HAWM-UX/UF-mounted components The following diagram and list identify the ECP ports that connect to...
  • Page 62 56 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F To connect your 1.
  • Page 63 57 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F Connecting your SMART UF65 or SMART UF65w projector to the SBA-L projection audio system The HAWM-UX/UF is designed to accommodate mounting the SBA-L projection audio...

  • Page 64: Placing Cables For Other Components

    58 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F 7.
  • Page 65 59 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F Using the SMART UF65 and SMART UF65w projector connection panel for other components Remove the input/output cover on the left side of the projector and the cable covers to...
  • Page 66 60 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F NOTE SMART recommends that you use a VGA out connector on your source input to simplify the cable placement.
  • Page 67 61 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F Connecting the power, network and other peripheral device cables to your SMART UF65 or SMART UF65w projector Peripheral devices that don’t mount on the HAWM-UX/UF but that connect to your...
  • Page 68 62 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F To connect your 1.
  • Page 69 63 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F 11.
  • Page 70 64 | CH A P T E R 5 – C ABL IN G A 600 I4 OR D 600 I 4 S Y S T E M T O A H A W M - U X / U F...
  • Page 71 Chapter 6 Cabling a 600i3 or D600i3 system to a HAWM-UX/UF Introduction ....................67 Mounting your HAWM-UX/UF mobility switch ..........67 Placing cables for remotely mounted components ........69 Introduction The SMART Board 600i3 or D600i3 interactive whiteboard systems include a SMART UF55 high-offset projector or SMART UF55w high-offset widescreen projector and an extended control panel (ECP) that’s remotely located.

  • Page 72: Mounting Your Hawm-Ux/Uf Mobility Switch

    66 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F Mounting your HAWM-UX/UF mobility switch The mobility switch controls the vertical movement of the HAWM-UX/UF and your...
  • Page 73 67 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F 3.

  • Page 74: Placing Cables For Remotely Mounted Components

    68 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F Placing cables for remotely mounted components Cables for peripheral devices connected to the projector but not mounted on the...
  • Page 75 69 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F 2.
  • Page 76 70 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F 7.
  • Page 77 71 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F 10.
  • Page 78 72 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F Number Function RCA jack audio left/right input (reserved for ECP harness cable)
  • Page 79 73 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F NOTE SMART recommends that you use a VGA out from your source input to simplify the cable placement.
  • Page 80 74 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F To connect your projector 1.
  • Page 81 75 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F 2.
  • Page 82 76 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F 9.
  • Page 83 77 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F To connect your host 1.
  • Page 84 78 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F To connect your host 1.
  • Page 85 79 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F Connecting peripheral devices to your SMART UF55 and SMART UF55w projectors’...
  • Page 86 80 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F Using the SMART UF55 and SMART UF55w projector connection panel for SBA and SBA-L projection audio systems...
  • Page 87 81 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F 4.
  • Page 88 82 | CH A P T E R 6 – C ABL IN G A 600 I3 OR D 600 I 3 S Y S T E M T O A H A W M - U X / U F...

  • Page 89: Index

    Index Numerics 885ix interactive whiteboard mobility switch, 6 600i3 interactive whiteboard network cable, 19 host computer to projector, 77 peripheral device cables, 19 network cable connection, 74 SMART hub VE220 and SE240, 16 SMART hub VE220 and SE240, 68 SMART UX60 projector power cable, SMART UF55 projector power cable, temporary connections, 79 600i4 interactive whiteboard, 51...
  • Page 90 84 | IN DE X movement switch 600i3 interactive whiteboard, 66 600i4 interactive whiteboard, 52 800i4 interactive whiteboard, 25 685ix interactive whiteboard, 36 885ix interactive whiteboard, 9 800i4 interactive whiteboard, 22 SMART UF55 projector, 74 885ix interactive whiteboard, 6 SMART UF55 projector remote- mounted, 78 SMART UF65 projector, 25, 32, 60 SMART UX60 projector, 47...
  • Page 91 85 | IN DE X 25, 55 switch ECP for other components, 32 600i3 interactive whiteboard, 66 for HAWM-mounted components, 24 600i4 interactive whiteboard, 52 for other components, 31, 59 685ix interactive whiteboard, 36 HAWM-mounted components, 54 800i4 interactive whiteboard, 22 power cable, 61 885ix interactive whiteboard, 6 SBA-L audio system, 28, 57...
  • Page 92 86 | –...
