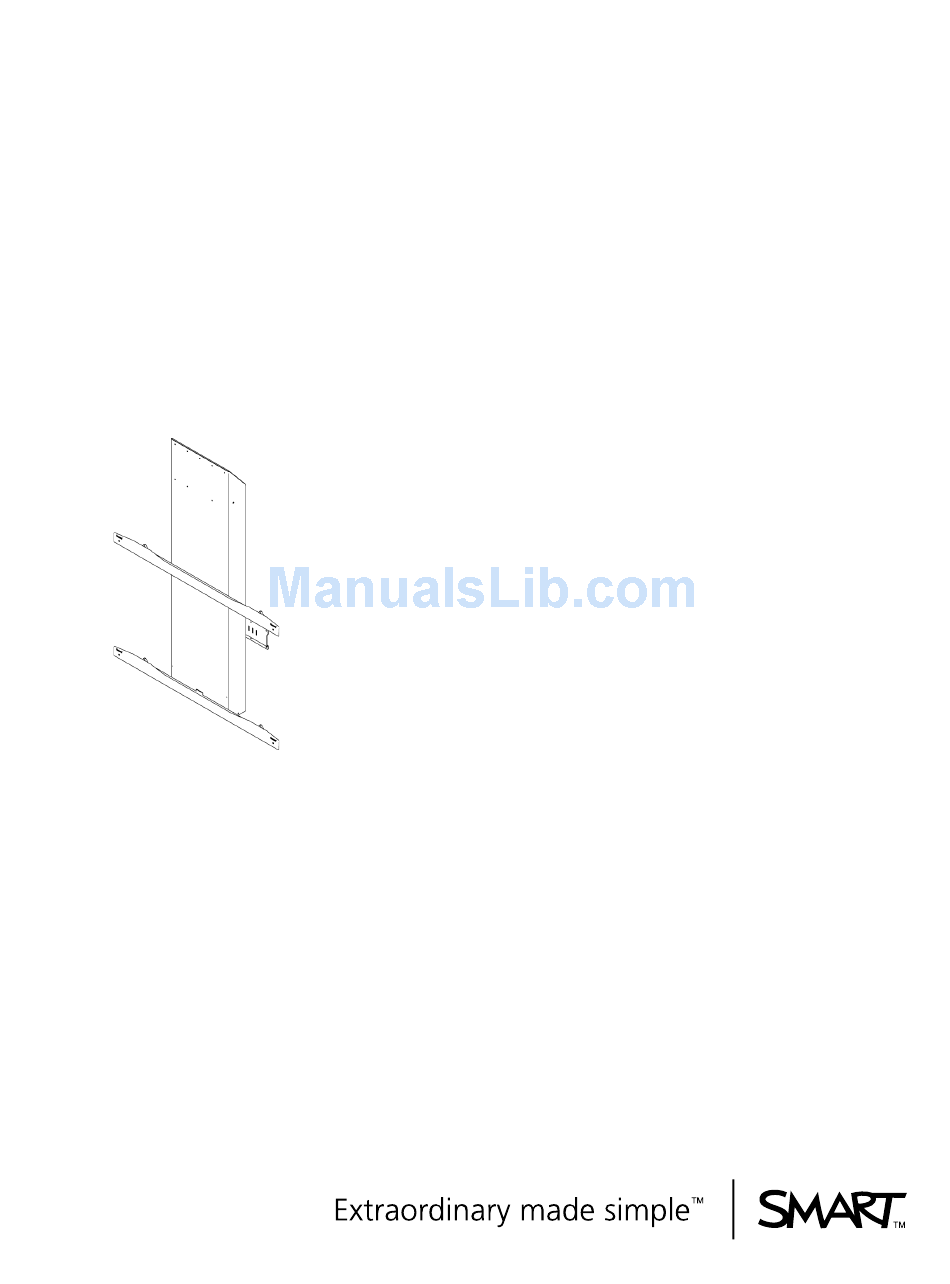

  • Page 1 Integration and Cabling Guide HAWM-UX/UF Height­Adjustable Wall Mount...

  • Page 2: Technical Support

    SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.

  • Page 3: Table Of Contents

    Contents Best practices for placing cables on a Height-Adjustable Wall Mount ....1 Cabling a SMART Board 685ix or D685ix interactive whiteboard system to your SMART Height-Adjustable Wall Mount-UX/UF ............. 5 Cabling a SMART Board 685ix or D685ix interactive whiteboard system ..5 Mounting your HAWM-UX/UF mobility switch ..........
  • Page 4 –...

  • Page 5: Best Practices For Placing Cables On A Height-Adjustable Wall Mount

    The HAWM-UX/UF enables you to operate your interactive whiteboard system at multiple levels, depending on your users’ comfort, access and personal height needs. Some equipment that you connect to your HAWM-UX/UF isn’t movable and can pose a risk of cable damage, unless you take special precautions. By...
  • Page 6 HE IGH T- AD J US TA BLE WAL L M O UN T • Don’t mount your HAWM-UX/UF in the way of power outlets or cable locations. If a power outlet or cable crosses the HAWM-UX/UF’s path of travel, it can result in a broken power supply or cable damage. •...
  • Page 7 Measure the distances at the HAWM-UX/UF’s lowest and highest height, and use the greater number as your minimum cable length.
  • Page 8 (such as cable tray access hatches, ethernet ports and power outlets) and restrictions in the room, and note alternative routing options. If you can, move the HAWM-UX/UF closer to these sources. – To prevent a tripping hazard, bundle or use cable-ties and cable management...

  • Page 9: Cabling A Smart Board 685Ix Or D685Ix Interactive Whiteboard System To Your Smart Height-Adjustable Wall Mount-Ux/Uf

    The mobility switch controls the vertical movement of the HAWM-UX/UF and your interactive whiteboard system. The mobility switch is wired directly to the rear panel of the HAWM-UX/UF. Use the installation guide with the following procedure to place and mount the mobility switch.
  • Page 10 W H I T E B O A R D S Y S T E M T O Y O U R S M A R T H E I G H T - A D J U S T A B L E W A L L To mount the 1. Locate the HAWM-UX/UF mobility switch. If you haven’t done so already, remove HAWM-UX/UF mobility and discard the plastic bag that holds the mobility switch.

  • Page 11: Placing Cables For Hawm-Ux/Uf-Mounted Components

    W H I T E B O A R D S Y S T E M T O Y O U R S M A R T H E I G H T - A D J U S T A B L E W A L L 4. Place the cable through the HAWM-UX/UF’s lower cable clip, making sure that the cable is taut between the interactive whiteboard and the clip, and loose between the clip and the base of the HAWM-UX/UF.
  • Page 12 To access the projector connection panel and wire management clip, remove the input/output cover on the left side of the projector and remove the cable covers. For more information, see the SMART Board 685ix and D685ix Interactive Whiteboard System configuration and user’s guide (smarttech.com/kb/137396).
  • Page 13 The ECP harness cable controls all signals and commands sent between the ECP and the projector. Choose a side of the interactive whiteboard to install your ECP on, and then follow the instructions in the SMART Board 685ix and D685ix Interactive Whiteboard System textless installation instructions (smarttech.com/kb/137394).
  • Page 14 SMART recommends that you use the WMB’s magnetic connection to attach the WMB to the HAWM-UX/UF’s moving frame, when the WMB is out of use. By doing so, you prevent the WMB from shifting as the HAWM-UX/UF rises and descends.
  • Page 15 HAWM-UX/UF’s movement. To connect your SMART 1. If you haven’t already, attach the SMART UX60 WMB to the projector. Attach the UX60 projector’s WMB HD-DB15 connector and the 3.5 mm audio jack to the projector’s connection panel (see page 8).
  • Page 16 WMB does not slip off the anchor point when the HAWM-UX/UF is moving, or make sure the WMB has a minimum of 28" (71.1 cm) excess straight length or a 14" (35.6 cm) loose loop of cable.

  • Page 17: Placing Cables For Other Components

    Placing cables for other components Cables for peripheral devices connected to the projector but not mounted on the HAWM-UX/UF are at the greatest risk of damage, because they shift as the HAWM-UX/UF rises and descends. These peripheral devices and cables include: •...
  • Page 18 HAWM-UX/UF. 1. HD-DB15 (VGA Out) output connector NOTE Due to the complexity of installing a peripheral device to the HAWM-UX/UF, SMART recommends that you use a VGA out connector on your source input, to simplify the cable placement.
  • Page 19 NOTE The HDMI connector is intended for non-interactive audio-video content only, such as high-definition DVD/Blu-ray players. If you connect a cable from the HDMI port to a computer, your SMART Board interactive whiteboard doesn’t recognize touch commands. 9. Power socket SMART UX60 projector ECP diagram for other components The following diagram and list identify the ECP connections to components that aren’t...
  • Page 20 5. Slowly test the movement of the unit, using the HAWM-UX/UF’s mobility switch. Make sure that the cable isn’t taut at any range of the HAWM-UX/UF’s movement. Optionally, find a support location for the power cable that doesn’t interfere with the movement of the HAWM-UX/UF and attach a cable management clip (not included) to the cable.
  • Page 21 11. Slowly test the movement of the unit, using the HAWM-UX/UF’s mobility switch. Make sure the cables are not taut at any range of the HAWM-UX/UF’s movement. If it’s still taut, repeat this procedure until you find a suitable mounting location or...
  • Page 22 To temporarily connect a 1. Make sure that you place the device near the HAWM-UX/UF on a stable support. composite video device to 2. Allow enough excess cable length to accommodate the HAWM-UX/UF’s rise and your projector’s ECP...

  • Page 23: Smart Height-Adjustable Wall Mount-Ux/Uf

    Cabling a SMART Board 600i4 or D600i4 interactive whiteboard system The SMART Board 600i4 and D600i4 interactive whiteboard systems always include a SMART UF65 high-offset projector or SMART UF65w high-offset widescreen projector, both with a 3D projection option and an extended control panel (ECP) that’s located on the interactive whiteboard.

  • Page 24: Mounting Your Hawm-Ux/Uf Mobility Switch

    The mobility switch controls the vertical movement of the HAWM-UX/UF and your interactive whiteboard system. The mobility switch is wired directly to the rear panel of the HAWM-UX/UF. Use the installation guide with the following procedure to place and mount the mobility switch.
  • Page 25 Make sure that the mobility switch cable is toward the bottom of the switch as you mount it. 4. Place the cable through the HAWM-UX/UF’s lower cable clip, making sure that the cable is taut between the interactive whiteboard and the clip, and loose between the clip and the base of the HAWM-UX/UF.

  • Page 26: Placing Cables For Hawm-Ux/Uf-Mounted Components

    SYS TE M TO Y O UR SM ART HAW M-UX/ UF Placing cables for HAWM-UX/UF-mounted components To prevent cable friction, SMART recommends that you first place the cables that don’t shift after they’re installed. Cables that connect components mounted to the HAWM-UX/UF don’t shift after they’re installed.
  • Page 27 The ECP harness cable controls all signals and commands sent between the ECP and the projector. Choose a side of the interactive whiteboard to install your ECP on, and then follow the instructions in SMART Board 600i4 and D600i4 Interactive Whiteboard System Configuration and User’s Guide (smarttech.com/kb/146184).

  • Page 28: Placing Cables For Sba-L Speakers

    3. Using a Phillips No. 2 screwdriver, attach the screw on the ECP strain relief to the projector housing. 4. Using a cable tie, secure the power cable to the SMART UF65 or SMART UF65w projector’s wall-mount bracket. Place the cable through the cable cutouts on the wall-mount bracket.
  • Page 29 7. Place the Molex cable through the left Left speaker speaker cable clip, through the space cable clip between the HAWM-UX/UF and the interactive whiteboard. 8. Place the cable through the right speaker cable clip. 9. Connect the Molex cable to both speakers, and bundle any excess cable in the left speaker cable clip.

  • Page 30: Placing Cables For Other Components

    Placing cables for other components Cables for peripheral devices connected to the projector but not mounted on the HAWM-UX/UF are at the greatest risk of damage, because they shift as the HAWM-UX/UF rises and descends. These peripheral devices and cables include: •...
  • Page 31 6. HD-DB15 (VGA 1) connector 7. VGA output NOTE Due to the complexity of installing a peripheral device to the HAWM-UX/UF, SMART recommends that you use a VGA out connector on your source input, to simplify the cable placement. 8. Power socket 9.
  • Page 32 Connecting the power, network and other peripheral device cables to your SMART UF65 or SMART UF65w projector Peripheral devices and items not mounted on the HAWM-UX/UF, but that connect to your projector’s connection panel on the HAWM-UX/UF, require a certain amount of slack in the cable for the projector’s rise and descent.
  • Page 33 2. Using a cable tie, secure the power cable to the SMART UF65 or SMART UF65w projector’s wall-mount bracket. Place the cable through the cable cutouts on the wall-mount bracket.
  • Page 34 6. Using a cable tie, secure the cable to the SMART UF65 or SMART UF65w projector’s wall-mount bracket. Place the cables through the cable cutouts on the bottom wall-mount bracket.
  • Page 35 To temporarily connect a 1. Make sure that you place the device near the HAWM-UX/UF on a stable support. composite video device to 2. Allow enough excess cable length to accommodate the HAWM-UX/UF’s rise and your projector’s ECP...
  • Page 36 32 | CH A P T E R 3 – C A B L I N G A S B 6 0 0 I 4 O R S BD 6 0 0 I 4 I NT ERA CT I VE W HI T E B OA RD SYS TE M TO Y O UR SM ART HAW M-UX/ UF...

  • Page 37: Smart Height-Adjustable Wall Mount-Ux/Uf

    Cabling a SMART Board 600i3 or D600i3 interactive whiteboard system The SMART Board 600i3 or D600i3 interactive whiteboard systems always include a SMART UF55 high-offset projector or SMART UF55w high-offset widescreen projector and an extended control panel (ECP) that’s remotely located.

  • Page 38: Mounting Your Hawm-Ux/Uf Mobility Switch

    The mobility switch controls the vertical movement of the HAWM-UX/UF and your interactive whiteboard system. The mobility switch is wired directly to the rear panel of the HAWM-UX/UF. Use the installation guide with the following procedure to place and mount the mobility switch.
  • Page 39 4. Place the cable through the HAWM-UX/UF’s lower cable clip, making sure that the cable is taut between the interactive whiteboard and the clip, and loose between the clip and the base of the HAWM-UX/UF.

  • Page 40: Placing Cables For Remotely Mounted Components

    Before you mount any cables to your projector, you must mount the SMART UF55 or SMART UF55w projector’s ECP. This ECP is unique in that it attaches to the wall, not to the HAWM-UX/UF, so you must carefully attach the SMART UF55 or SMART UF55w ECP to the wall at the location specified in the instructions below.
  • Page 41 1" (2.5 cm) from the right of the interactive whiteboard. This mark is for the top left screw’s drill hole on the ECP. 3. From the SMART UF55 or SMART UF55w projector packaging, retrieve your ECP template and textless installation instructions.
  • Page 42 38 | CH A P T E R 4 – C A B L I N G A S B 6 0 0 I 3 O R S BD 6 0 0 I 3 I NT ERA CT I VE W HI T E B OA RD SYS TE M TO Y O UR SM ART HAW M-UX/ UF 8.
  • Page 43 SMART UF55 and SMART UF55w projector connection panel diagram for remotely mounted components The following diagram and list identify the SMART UF55 and SMART UF55w projector’s ports that connect to components that are not HAWM-UX/UF-mounted. To access the projector connection panel and wire management clip, first remove the input/output cover on the left side of the projector and remove the cable covers.
  • Page 44 SYS TE M TO Y O UR SM ART HAW M-UX/ UF NOTE Due to the complexity of installing a peripheral device to the HAWM-UX/UF, SMART recommends that you use a VGA out from your source input, to simplify the cable placement.
  • Page 45 2. Using a cable tie, secure the power cable to the SMART UF55 or SMART UF55w projector’s wall-mount bracket. Place the cable through the cable cutouts on the wall-mount bracket.
  • Page 46 RJ45 port on the projector. Make sure that the network cable is in the middle left position in the cable slot. 6. Using a cable tie, secure the cables to the SMART UF55 or SMART UF55w projector’s wall-mount bracket. Place the cables through the cable cutouts on the bottom wall-mount bracket.
  • Page 47 (35.6 cm) loose loop of cable. 13. Make sure the cables are not taut at any range of the HAWM-UX/UF’s movement. If they’re still taut, repeat this procedure until you find a suitable mounting location or length for the cables.
  • Page 48 3. Connect your 3.5 mm audio cable to the input marked Audio 2 on your projector. 4. Using a cable tie, secure the cables to the SMART UF55 or SMART UF55w projector’s wall-mount bracket. Place the cables through the cable cutouts on the bottom wall-mount bracket.
  • Page 49 CH A P T E R 4 – C A B L I N G A S B 6 0 0 I 3 O R S BD 6 00 I3 I NTE RA CT I VE WHI T E B OA R D SYS TE M TO Y O UR SM ART HAW M-UX/ UF 9. Slowly test the movement of the unit, using the HAWM-UX/UF’s mobility switch. Make sure the cables aren’t taut at any range of the HAWM-UX/UF’s movement.

  • Page 50: Placing Cables For Sba Or Sba-L Speakers

    To temporarily connect a 1. Make sure that you place the device near the HAWM-UX/UF on a stable support. composite video device to 2. Allow enough excess cable length to accommodate the HAWM-UX/UF’s rise and your projector’s ECP...
  • Page 51 SBA-L Projection Audio System textless installation instructions (smarttech.com/kb/142552). SMART UF55 and SMART UF55w projector connection panel diagrams for SBA and SBA-L Projection Audio System The following diagram identifies the SMART UF55 and SMART UF55w projectors’...
  • Page 52 7. Place the Molex cable through the left Left speaker speaker cable clip, through the space cable clip between the HAWM-UX/UF and the interactive whiteboard. 8. Place the cable through the right speaker cable clip. 9. Connect the Molex cable to both speakers.
  • Page 53 3 temporary connections, 18 preventing tripping hazards, 4 cabling a SMART UF55 projector See cabling a SMART Board 600i3 or D600i3 interactive whiteboard system cabling a SMART UF55w projector cable damage, 2 See cabling a SMART Board 600i3 or...
  • Page 54 24 measuring, 3 SMART UX60 projector connection, 12 mobility switch SMART Height-Adjustable Wall Mount mounting on a SMART Board 600i3 or UX/UF D600i3 interactive whiteboard system, best practices for placing cables on a, 1 SMART Mobile Height-Adjustable Floor...
