Summary of Contents for Extech Instruments MO270

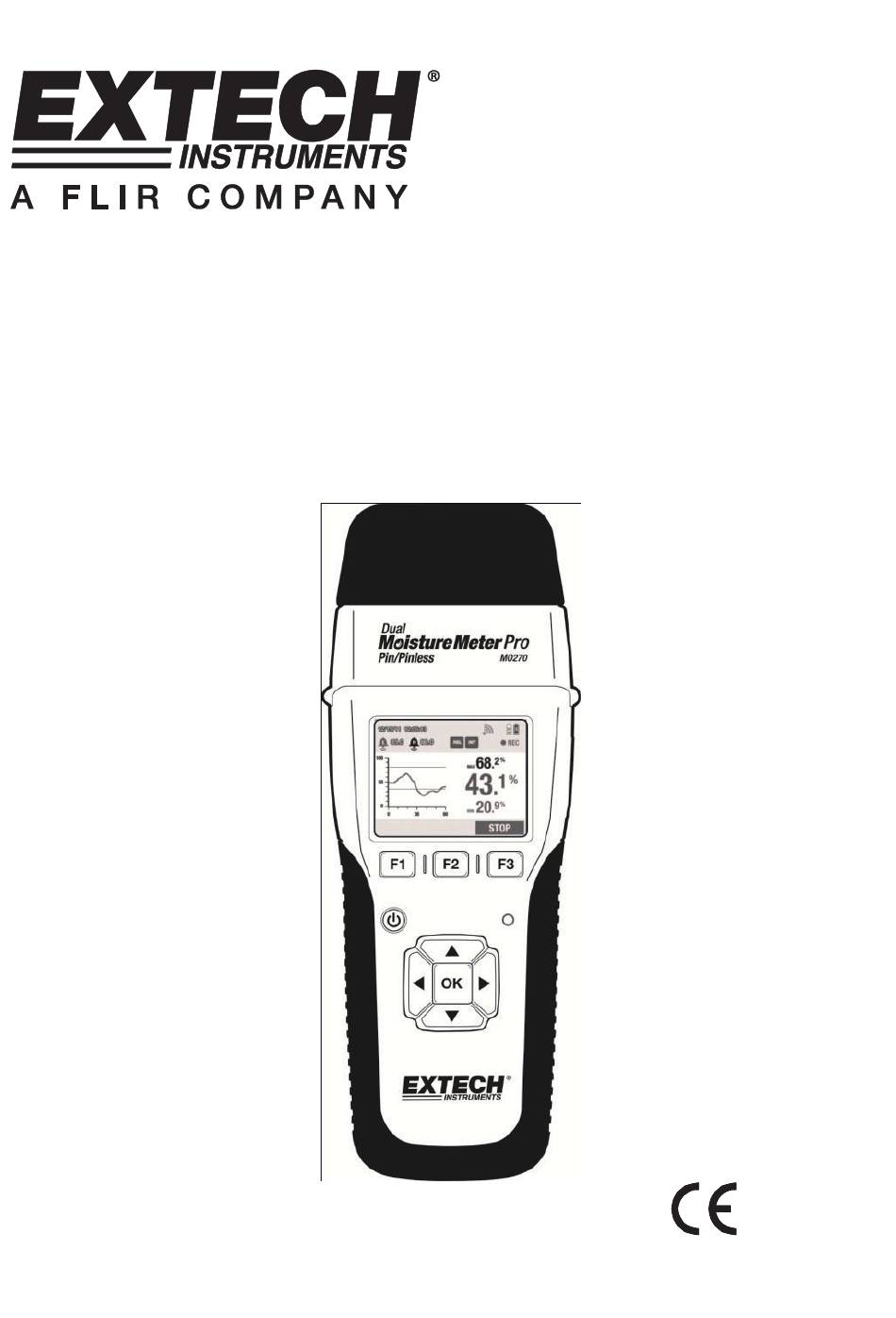

- Page 1 User Guide Wireless Pin and Pinless Moisture Meter Model: MO270 Includes EX3000 Wireless Receiver and MO270-X Wireless Moisture Meter...
- Page 2 FCC warning statement: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 Introduction Congratulations on your purchase of the Extech MO270 Moisture Meter with full graphical display. This meter includes MeterLink Bluetooth capabilities for use with FLIR infrared cameras (such as FLIR T/B200, T/B300, T/B360, T/B400 or i/b60 cameras). The MO270 detects moisture in wood and other materials such as particle board, carpeting, and ceiling/bathroom tiles using a non- invasive method (pinless);...
- Page 4 Navigation and OK buttons Meter Side Views Sensor release buttons Video output Audio output RJ-45 remote probe port Meter (receiver) USB port Mini-SD card Sensor (ransmitter) USB port Meter Components Contact pins Non-Contact capacitive sensor Sensor (transmitter) Meter (Receiver) MO270-EU-EN-Temp02-11/11...
- Page 5 Reading moisture using ‘pin’ sensors External probe Reading measurement from external probe Internal probe Reading measurements from internal probe (blue) Recording Unit is actively recording content (on-screen) Sensor (transmitter) Sensor battery (fully charged) battery (green) Meter (Receiver) battery Meter battery (low) (orange) MO270-EU-EN-Temp02-11/11...
- Page 6 The USB menu will appear. Navigate down to “Charger” and press OK. The digital display measurement screen will appear showing the two battery icons at the upper right side of the display. (Meter) and (Sensor) icons will be completely filled when the batteries are fully charged. MO270-EU-EN-Temp02-11/11...
-
Page 7: Operation
Place the meter so that the rear sensor lays flat against the surface of the material under test. Take several readings in several locations on the material for the best representation of the amount of moisture present. Read the measurement values on the display. MO270-EU-EN-Temp02-11/11... - Page 8 When complete, press the OK button to capture the settings and then press the F3 EXIT button to store the setting. m) To set the alarm beeper ON or OFF: Return to the Alarm screen and navigate to the SOUND ON or OFF box. Select the desired condition, press OK and then press F3-EXIT. MO270-EU-EN-Temp02-11/11...
- Page 9 FLIR camera, select BLUETOOTH from the SETTINGS menu. b) Scroll to METERLINK MODE and press OK c) Select PC mode if the meter is to be connected directly to a PC for two-way communication using optional software. MO270-EU-EN-Temp02-11/11...
- Page 10 OWNER NAME and NUMBER. c) Scroll to the OWNER NAME or NUMBER field and then press d) An alpha-numerical screen will appear allowing the user to select text using the arrow and OK buttons. e) Press BACK or EXIT when done. MO270-EU-EN-Temp02-11/11...
-
Page 11: Wood Types
For more on the Trend Analysis display refer to the Trend Analysis section later in this guide. F3 - HOLD The HOLD menu freezes the displayed reading. Sub-menus allow for saving the data to memory or exiting the mode. MO270-EU-EN-Temp02-11/11... - Page 12 FCC warning statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 13 Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 14 Three sub-menus will appear: INDIVIDUAL, GROUP, and ALL. Select INDIVIDUAL to delete one reading from within one group; Select GROUP to delete an entire group; and select ALL to delete all readings in all groups. Click OK to clear the item. MO270-EU-EN-Temp02-11/11...
-
Page 15: Calibration Verification
4. The display should read 75 for the first measurement and 25 for the second measurement. 5. If the readings are not correct, return the meter for service. MO270-EU-EN-Temp02-11/11... -
Page 16: Battery Replacement
203 x 58 x 43mm (8 x 2.3 x 1.7”); not including remote probe Weight 204g. (7.2 oz); not including remote probe Copyright © 2011 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. MO270-EU-EN-Temp02-11/11...
