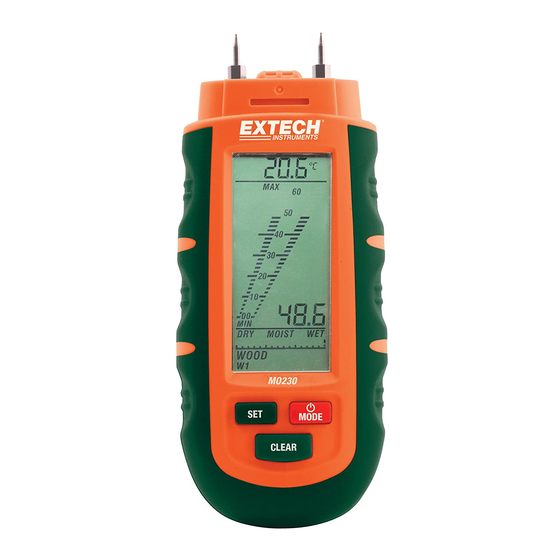

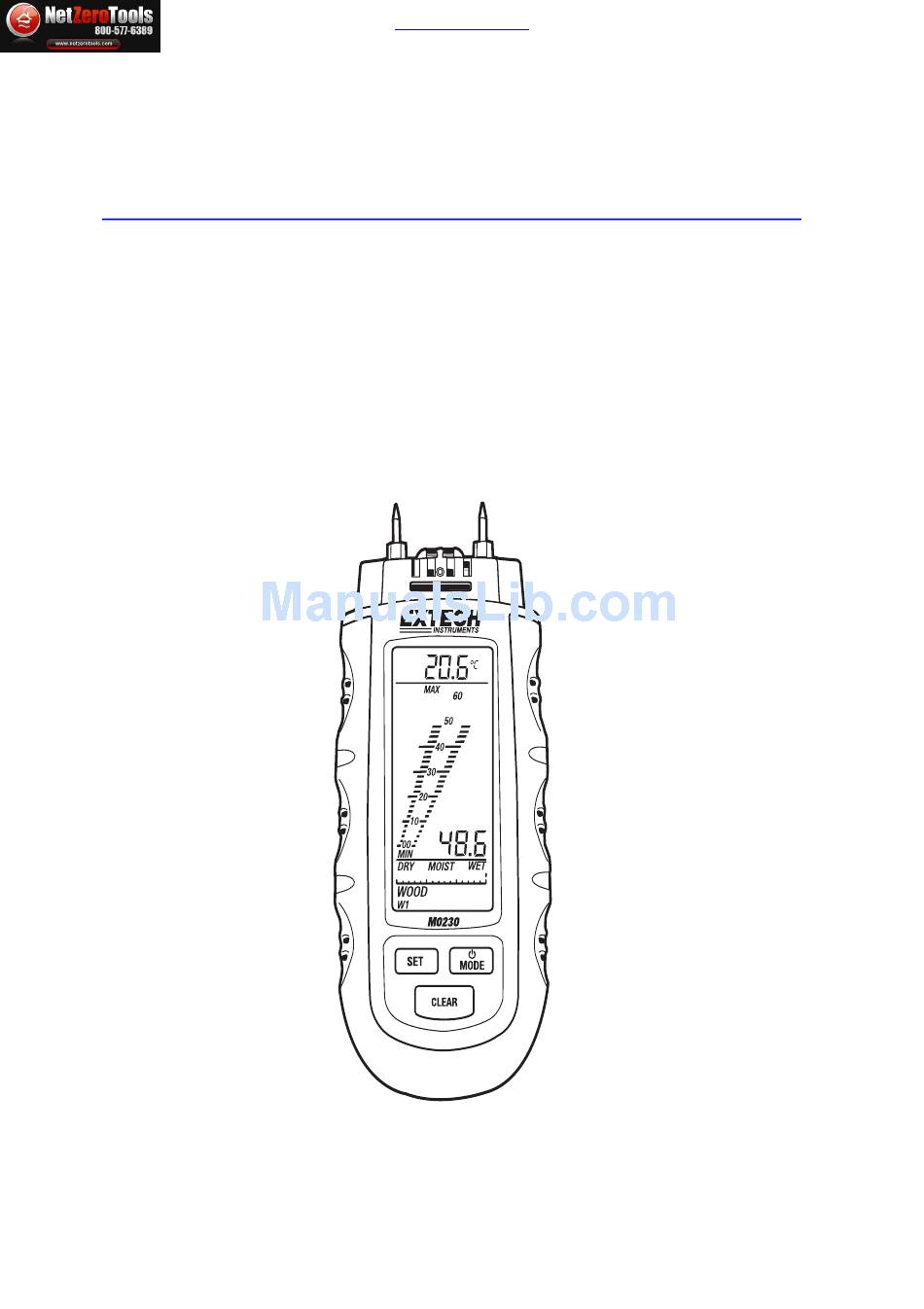

- Page 1 User Guide Extech MO230 Pocket Pin Wood Moisture Meter Moisture Meter Model MO230 netzerotools.com...
- Page 2 Introduction Congratulations on your purchase of the Extech MO230 Moisture Meter. The MO230 detects moisture in wood and building materials such as wall board, sheet rock, cardboard, paper, mortar, and plaster. Additionally, the meter measures Relative Humidity (RH) and Temperature. Careful use of this meter will provide years of reliable service.
- Page 3 Note: To conserve battery life, the meter automatically shuts off after 3 minutes. Measuring Temperature and Relative Humidity The MO230 measures ambient temperature and relative humidity via the built-in sensors at the top of the meter. The ambient temperature is used as a temperature compensation utility for moisture measurements.
- Page 4 If tests are failing please return the unit for repair or replacement. Dry/Wet Indication Moisture reading will also be displayed on the user defined wet-moist- dry display. Setting the range of the display is described in the programming section. MO230-en-GB_v3.2 12/14 netzerotools.com...
- Page 5 • Prevent dirt from accumulating at the electrode pins Electrode Pin Replacement To replace the two electrode pins: 1. Remove the protective cap 2. Unscrew the electrode pins 3. Install the new pins 4. Replace the protective cap MO230-en-GB_v3.2 12/14 netzerotools.com...
- Page 6 ° ° Operating Temperature 0 to 40 C (32 to 104 Operating Humidity 85% Relative Humidity maximum Housing material Impact resistant plastic Dimensions 159 x 63.5 x 30.5mm (6.25 x 2.5 x 1.2”) Weight 100g (3.5 oz) MO230-en-GB_v3.2 12/14 netzerotools.com...
- Page 7 Wood fibre insulating board White oak hickory-poplar Wood fibre hardboard Cedar Izombe Kauramin partide board Cypress - C. Lusit Guanandi Paper Board Jarrah Textiles Chestnut-sweet, red African Karri Building Material Groups Gypsum plaster Aerated concrete Sand/Cement top mix Concrete MO230-en-GB_v3.2 12/14 netzerotools.com...
